Conference camera - PTZ - color - 2.1 MP - 1920 x 1080 - audio - GbE - USB 3.0 - H.264 - PoE Plus
| Main Specifications | |
|---|---|

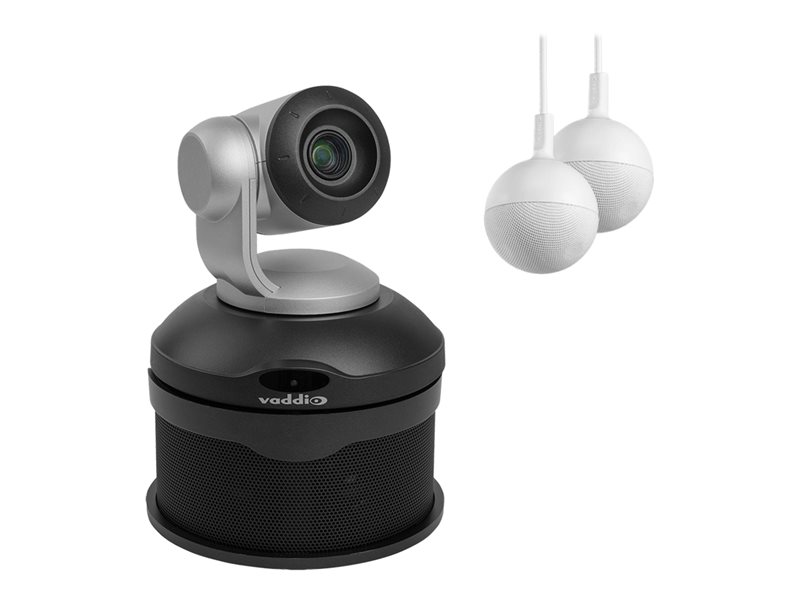

| Product Description | Vaddio ConferenceSHOT AV HD Video Conferencing System - PTZ Camera, Speaker, and Two CeilingMIC Conference Microphones - conference camera |
| Device Type | Conference camera - pan / tilt / zoom |
| Audio | Yes |
| Dimensions (WxDxH) | 6.1 in x 5.7 in x 6.4 in |
| Weight | 3 lbs |
| Color | White |
| Image Color Disclaimer | The displayed product image may be a different color |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 11 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080/60p, 1080/30p, 1080/25p, 1080/15p |
| Optical Sensor Type | Exmor CMOS - 1/2.8" - 2.1 MP |
| Focal Length | 3.8 mm - 41.8 mm |
| Focus Adjustment | Automatic, manual (min distance 0.4 in) |
| Lens Iris | F/1.8-3.4 |
| Panning Range (degree) | -165 to +165 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | USB 3.0 Ethernet 10Base-T/100Base-TX/1000Base-T |
| Cables Included | 1 - network cable - external - 10 ft ¦ 1 - SuperSpeed USB cable - external - 6 ft ¦ 2 - network cable - external - 3 ft ¦ 1 - audio / power cable - external - 6.5 in |
| Voltage | PoE Plus |
| Features | Manual white balance, Backlight Compensation (BLC), manual gain control, auto gain control, auto white balance, noise reduction |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Conference camera |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Width | 6.1 in |
| Depth | 5.7 in |
| Height | 6.4 in |
| Weight | 3 lbs |
| Localization | North America |
| Expansion / Connectivity | |
| Ports | USB 3.0 - 9 pin USB Type B ¦ LAN/power - RJ-45 ¦ 2 x microphone - RJ-45 ¦ Audio line out - terminal block |
| Miscellaneous | |
| Included Accessories | Wall mount kit, Vaddio ConferenceSHOT AV Speaker, Vaddio IR Remote Commander, screws, 2 Vaddio CeilingMIC microphones, 2 cable clamp grommets, 2 silicone split strain relief boots, 2 CeilingMIC interface boxes, 2 ceiling tile braces, 4-position phoenix-style connector, speaker mounting rail with gasket, 4 ceiling trim ring plates |
| Cables Included | 1 x network cable - external - 10 ft ¦ 1 x SuperSpeed USB cable - external - 6 ft ¦ 2 x network cable - external - 3 ft ¦ 1 x audio / power cable - external - 6.5 in |
| Compliant Standards | Plug and Play |
| Color | White |
| Image Color Disclaimer | The displayed product image may be a different color |
| Power | |
| Power Requirements | PoE Plus |
| Power Device | Power injector - external 25 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264 |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080/60p, 1080/30p, 1080/25p, 1080/15p |
| Digital Video Capture Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), manual gain control, auto gain control, auto white balance, noise reduction |
| Lens Construction | |
| Optical Zoom | 11 x |
| Focal Length | 3.8 mm - 41.8 mm |
| Lens Iris | F/1.8-3.4 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 0.4 in |
| Horizontal Field of View (degree) | 7.6 - 74 |
| Image Sensor | |
| Type | 2.1 MP Exmor CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | HTTP, RTSP, Telnet |
| Computer Interface | USB 3.0 |
| Panning | |
| Range (degree) | -165 to +165 |
| Speed (degree/sec) | Up to 90 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 90 |
