KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | SIIG 4 Port 4K DVI Dual Link KVM Switch with USB 3.0, Audio, Mic - KVM / audio / USB switch - 4 ports - TAA Compliant |
| Device Type | KVM / audio / USB switch - 4 ports |
| Subtype | DVI |
| Ports | 4 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Features | Firmware upgradable, built-in DIP switch, 4K resolution support, metal housing |
| Compliant Standards | USB 1.1, USB 3.0 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 11.1 in x 4.4 in x 2.4 in |
| Weight | 2.49 lbs |
| Color | Black |
| System Requirements | Microsoft Windows 7 / 8 / 10, Apple macOS 10.13 or later |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | DVI |
| Ports | 4 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2400 @ 33 Hz |
| Features | Firmware upgradable, built-in DIP switch, 4K resolution support, metal housing |
| Compliant Standards | USB 1.1, USB 3.0 |
| Expansion / Connectivity | |

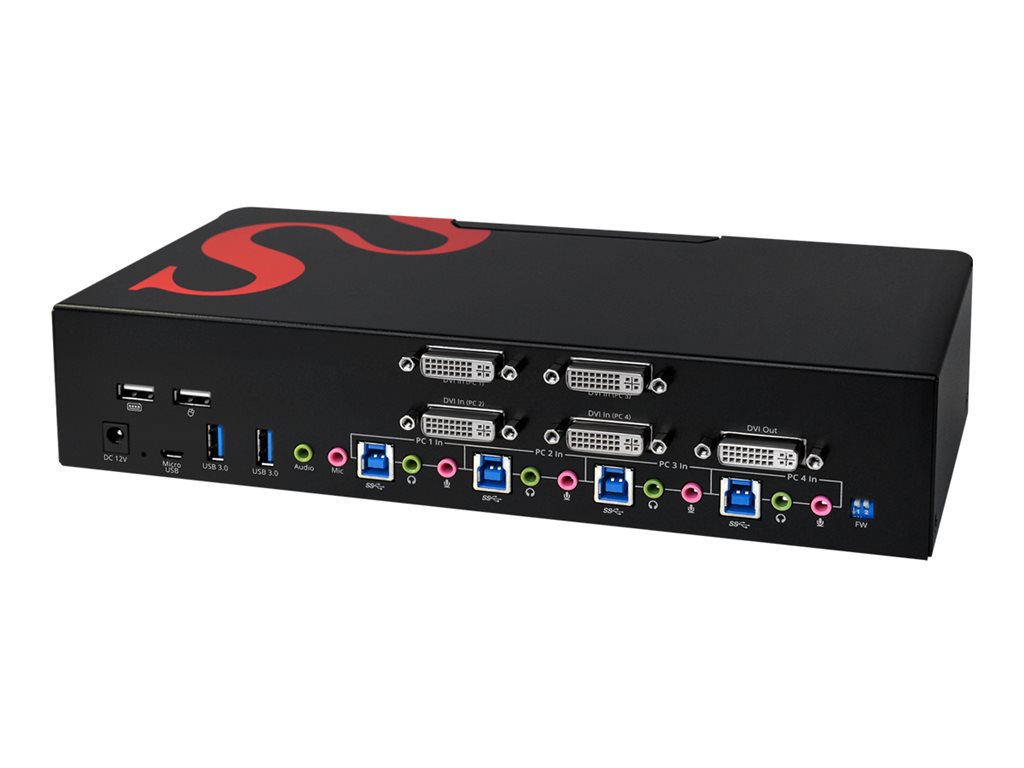

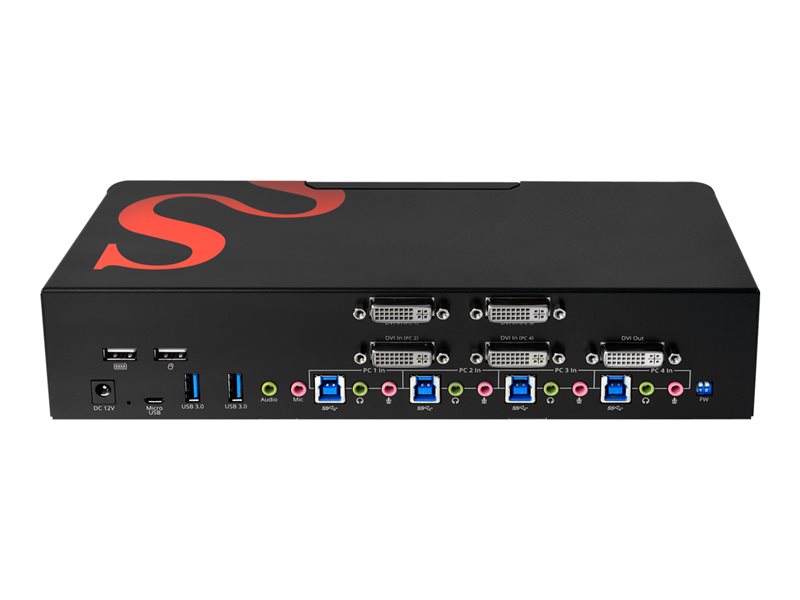

| Interfaces | 4 x DVI-D input ¦ 1 x DVI-D output ¦ 4 x microphone input mini-jack ¦ 4 x headphones input mini-jack ¦ 4 x USB 3.0 input Type B ¦ 1 x mouse (USB) Type A ¦ 1 x keyboard (USB) Type A ¦ 4 x USB 3.0 Type A ¦ 1 x microphone output mini-jack ¦ 1 x headphones output mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Cables Included | 4 x DVI cable ¦ 4 x audio / USB cable |
| Compliant Standards | Plug and Play, FCC, RoHS |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 2 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple macOS 10.13 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 11.1 in |
| Depth | 4.4 in |
| Height | 2.4 in |
| Weight | 2.49 lbs |
