KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | SIIG 4 Port 4K 60HZ HDMI KVM Switch with USB 3.0, Audio, Mic, HDMI, HDR - KVM / audio / USB switch - 4 ports - TAA Compliant |
| Device Type | KVM / audio / USB switch - 4 ports |
| Subtype | HDMI |
| Ports | 4 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Features | 3D support, built-in DIP switch, 4K resolution support, 7.1 channel audio support, metal housing, Dolby TrueHD support, DTS-HD support, Dolby Digital support, HDR support |
| Compliant Standards | USB 3.0, HDCP 2.2 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 11.1 in x 4.4 in x 1.5 in |
| Weight | 33.44 oz |
| Color | Black |
| System Requirements | Apple MacOS, Linux, Microsoft Windows |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Ports | 4 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Video Bandwidth | 594 MHz |
| Features | 3D support, built-in DIP switch, 4K resolution support, 7.1 channel audio support, metal housing, Dolby TrueHD support, DTS-HD support, Dolby Digital support, HDR support |
| Compliant Standards | USB 3.0, HDCP 2.2 |
| Expansion / Connectivity | |

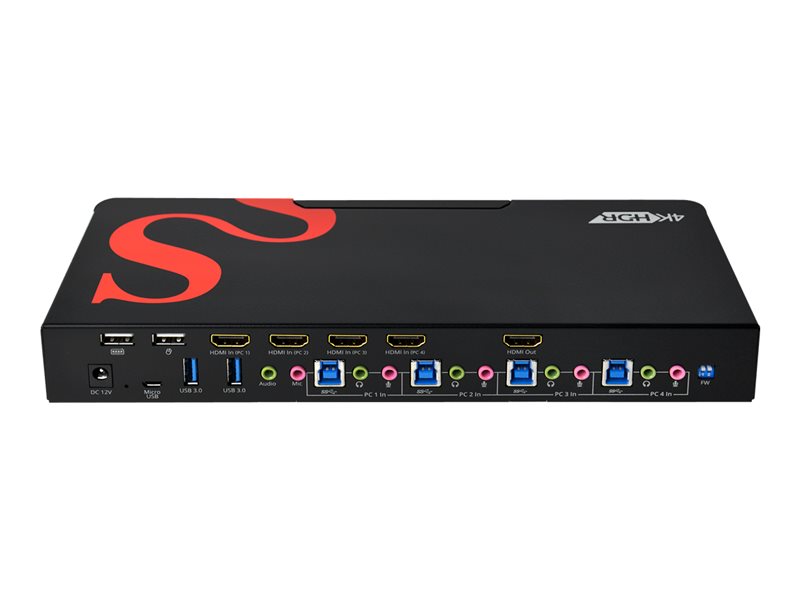

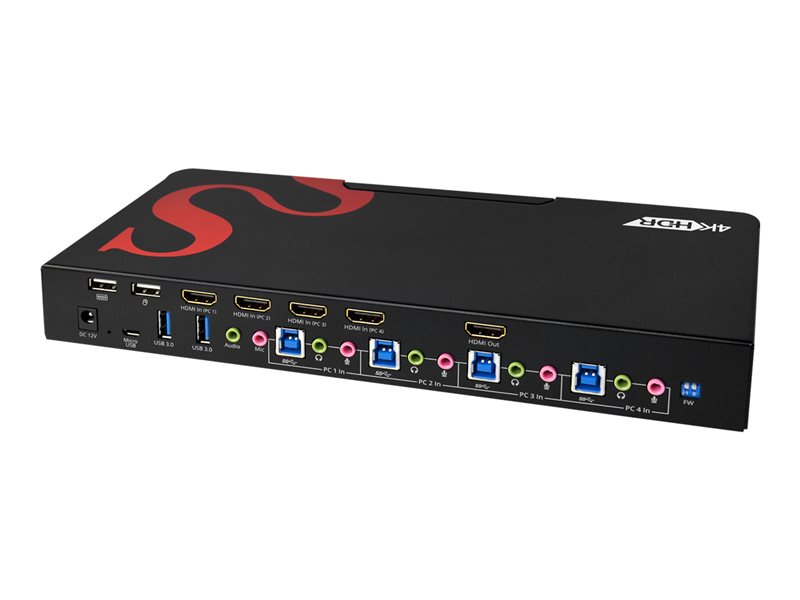

| Interfaces | 4 x HDMI input Type A ¦ 1 x HDMI output Type A ¦ 4 x microphone input mini-jack ¦ 4 x headphones input mini-jack ¦ 4 x USB 3.0 input Type B ¦ 1 x mouse (USB) Type A ¦ 1 x keyboard (USB) Type A ¦ 4 x USB 3.0 Type A ¦ 1 x microphone output mini-jack ¦ 1 x headphones output mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |

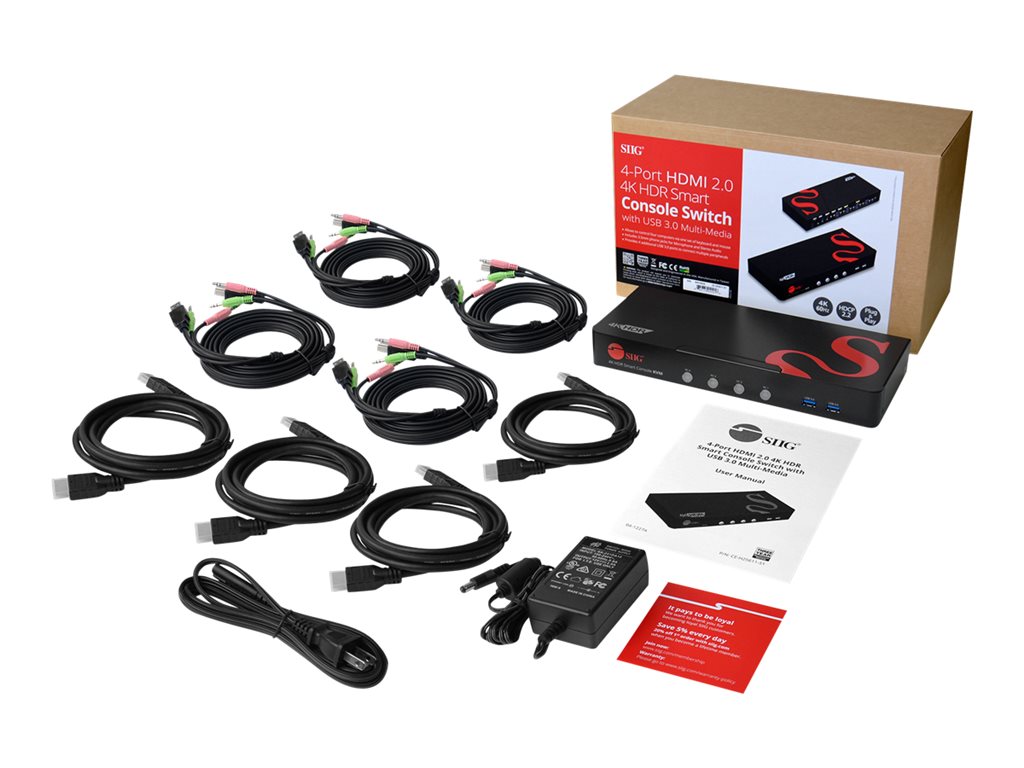

| Cables Included | 4 x HDMI cable - 6 ft ¦ 4 x audio / USB cable |
| Compliant Standards | Plug and Play, FCC, RoHS |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 2 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 11.1 in |
| Depth | 4.4 in |
| Height | 1.5 in |
| Weight | 33.44 oz |
