DLP projector - 3500 ANSI lumens - WUXGA (1920 x 1200) - 16:10 - white
| Main Specifications | |
|---|---|
| Product Description | ViewSonic PG701WU - DLP projector - white |
| Device Type | DLP projector |
| Color | White |
| Brightness | 3500 ANSI lumens |
| Contrast Ratio | 12000:1 (dynamic) |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Color Support | 1.07 billion colors |
| Lamp Type | 203 Watt |
| Lamp Life Cycle | Up to 5000 hour(s) - normal mode ¦ Up to 20000 hour(s) - economic mode |
| Speakers | Speaker(s) - internal |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 300 Watt |
| Dimensions (WxDxH) | 13.1 in x 8.7 in x 4.3 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | DLP projector |
| Enclosure Color | White |
| Expansion / Connectivity | |

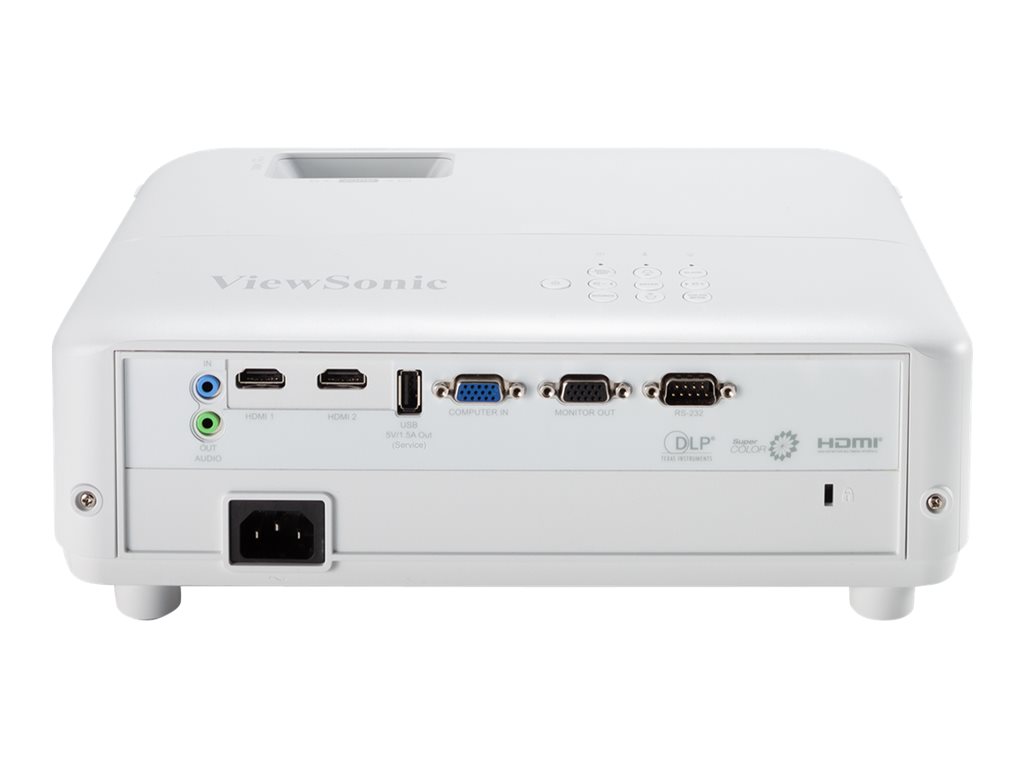

| Interfaces | 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x serial RS-232 ¦ 1 x audio line-in - mini-phone 3.5 mm ¦ 1 x audio line-out - mini-phone 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years ¦ Limited warranty - lamp - 1 year ¦ Limited warranty - express exchange - 1 year |
| Miscellaneous | |
| Included Accessories | Remote control |
| Cables Included | 1 x VGA cable |
| Security Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC, RoHS, cTUVus |
| Power | |
| Power Source | AC |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 300 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 13.1 in |
| Depth | 8.7 in |
| Height | 4.3 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 16.3 in |
| Shipping Depth | 6.6 in |
| Shipping Height | 11.7 in |
| Shipping Weight | 8.22 lbs |
| Projector | |
| Brightness | 3500 ANSI lumens |
| Contrast Ratio | 12000:1 (dynamic) |
| Image Size | 29.9 in - 300 in |
| Projection Distance | 3.3 ft |
| Throw Ratio | 1.5 - 1.65:1 |
| Resolution | WUXGA - WUXGA (1920 x 1200) (native) / 1920 x 1200 (resized) |
| Native Aspect Ratio | 16:10 |
| Color Support | 1.07 billion colors |
| Max Sync Rate (V x H) | 120 Hz x 102 kHz |
| Lamp Type | 203 Watt |
| Lamp Life Cycle | Up to 5000 hour(s) - normal mode ¦ Up to 20000 hour(s) - economic mode |
| Controls & Adjustments | Keystone correction |
| Features | 6-segment color wheel, Crestron e-Control, Super Color, SuperEco |
| Lens | |
| Zoom Factor | 1.1x |
| Keystone Correction Type | Optical |
| Keystone Correction Direction | Vertical |
| Vertical Keystone Correction | -40 / +40 |
| Speakers | |
| Type | Internal |
| Output Power / Channel | 2 Watt |
