Server - rack-mountable 1U - 2-way - 2 x Xeon Platinum 9242 / up to 3.8 GHz - RAM 0 GB - no HDD - Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Intel Server System S9248WK1HLC - rack-mountable Xeon Platinum 9242 2.3 GHz - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Server Scalability | 2-way |
| Processor | 2 x Intel Xeon Platinum 9242 / 2.3 GHz (up to 3.8 GHz, (48-core) |
| Cache Memory | 143 MB |
| Cache Per Processor | 71.5 MB |
| RAM | 0 GB (installed) / 3 TB (max) - DDR4 SDRAM |
| Storage Controller | SATA/NVMe (SATA-600 / NVMe) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Networking | 1GbE |
| Dimensions (WxDxH) | 8.5 in x 23.3 in x 1.6 in |
| Weight | 13.89 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Internal Bays Qty | 2 |
| Expansion / Connectivity | |
| Slots | 2 (total) / 2 (free) x PCIe 3.0 x16 ¦ 2 (total) / 2 (free) x M.2 Card - 2280/22110 |
| Interfaces | 2 x USB 2.0 ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

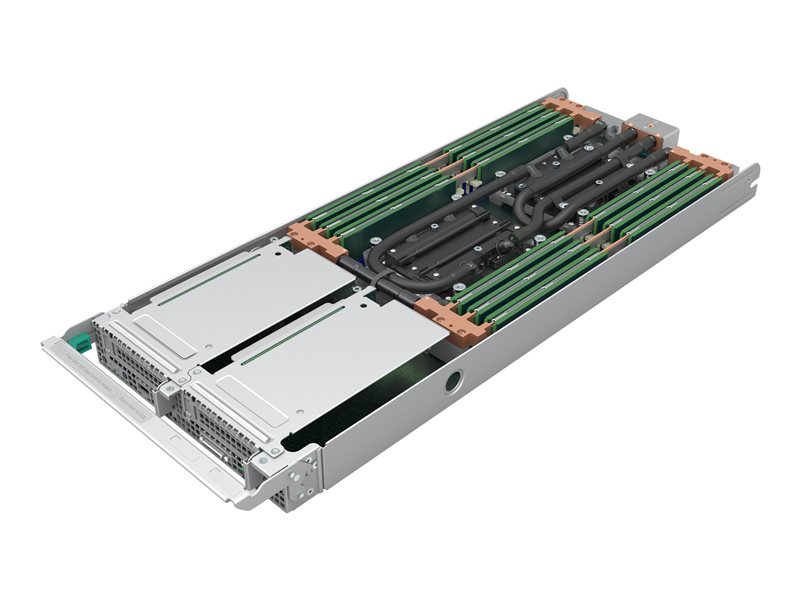

| Included Accessories | 1U compute module tray, 2 x 1U riser assembly, liquid cooling loop kit |
| RAM | |
| Installed Size | 0 GB (installed) / 3 TB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2933 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 24 (empty) |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Intel Baseboard Management Controller (BMC) |
| Features | Integrated BMC with IPMI |
| Storage Controller | |
| Type | SATA/NVMe |
| Controller Interface Type | SATA-600 / NVMe |
| Cache Memory | |
| Installed Size | 143 MB |
| Cache Per Processor | 71.5 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Operating System / Software | |
| OS Certified | Red Hat Enterprise Linux 7.6, CentOS 7.4, SuSE Linux Enterprise Server 12 SP4 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Dimensions & Weight Details | - 16.6 lbs |
| Width | 8.5 in |
| Depth | 23.3 in |
| Height | 1.6 in |
| Weight | 13.89 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon Platinum 9242 |
| Clock Speed | 2.3 GHz |
| Max Turbo Speed | 3.8 GHz |
| Number of Cores | 48-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C621 |
