Network management device
| Main Specifications | |
|---|---|

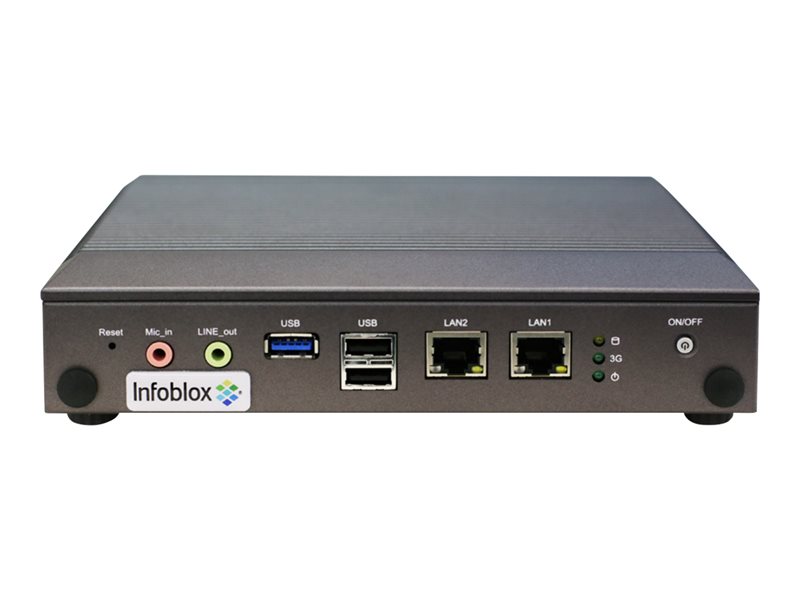

| Product Description | Infoblox BloxOne B105 - network management device |
| Device Type | Network management device |
| Form Factor | External |
| Processor | 1 x 2 GHz |
| RAM | 8 GB |
| Hard Drive | 64 GB x 1 |
| Performance | DNS throughput: 5000 queries per second ¦ DHCP throughput: 50 leases per second |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 6 in x 4 in x 2 in |
| Weight | 3.5 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Network management device |
| Width | 6 in |
| Depth | 4 in |
| Height | 2 in |
| Weight | 3.5 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x USB 3.0 - Type A ¦ 2 x USB 2.0 - Type A ¦ 2 x network - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, BSMI, CCC, EMC, RoHS, WEEE, EAC |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Performance | DNS throughput: 5000 queries per second ¦ DHCP throughput: 50 leases per second |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 11.43 Watt |
| Power Provided | 36 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x 2 GHz |
| RAM | 8 GB |
| Hard Drive | SSD 64 GB x 1 |
