Gateway - 1GbE
| Main Specifications | |
|---|---|

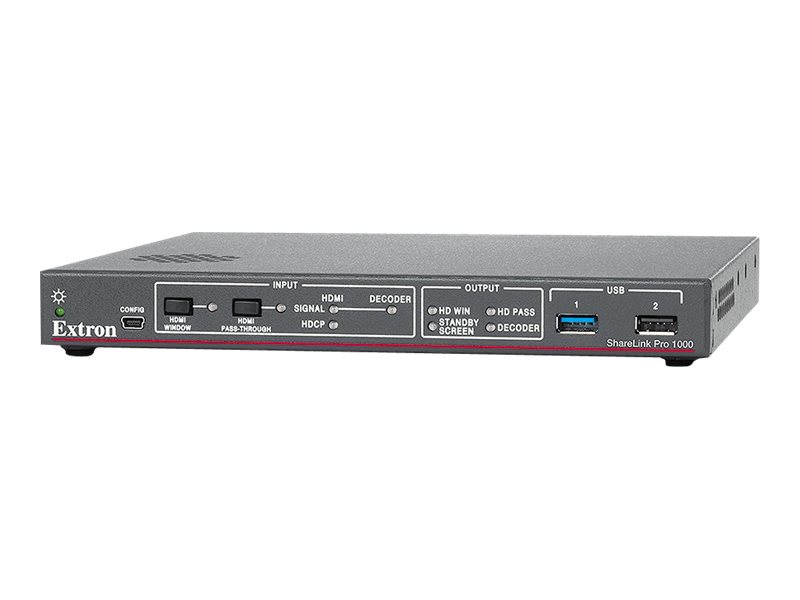

| Product Description | Extron ShareLink Pro 1000 - gateway |
| Device Type | Gateway |
| Form Factor | External |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Apple MacOS X 10.11 or later, Apple iOS 9.3 or later, Android 5.1.1 (Lollipop) or later |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.7 in x 8 in x 1 in |
| Weight | 28.22 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Gateway |
| Width | 8.7 in |
| Depth | 8 in |
| Height | 1 in |
| Weight | 28.22 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x management (mini-USB) ¦ 1 x USB - Type A ¦ 1 x USB 3.0 - Type A ¦ 1 x HDMI input ¦ 1 x HDMI output ¦ 1 x contact closure - terminal block ¦ 1 x audio line-out - terminal block ¦ 1 x RS-232 - terminal block ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (PoE+) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, VCCI, C-Tick, cUL, RoHS, WEEE, ICES, ISTA 1A |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, SMTP, DHCP, DNS, SMB, SFTP |
| Remote Management Protocol | SNMP, HTTP, HTTPS, SSH |
| Features | Half duplex mode, full duplex mode, 4K resolution support, metal housing, content sharing |
| Compliant Standards | DVI 1.0, HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 20.1 Watt |
| Power Provided | 24 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Apple MacOS X 10.11 or later, Apple iOS 9.3 or later, Android 5.1.1 (Lollipop) or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
