8x6 matrix switcher / scaler / audio DSP / audio power amplifier / control processor
| Main Specifications | |
|---|---|

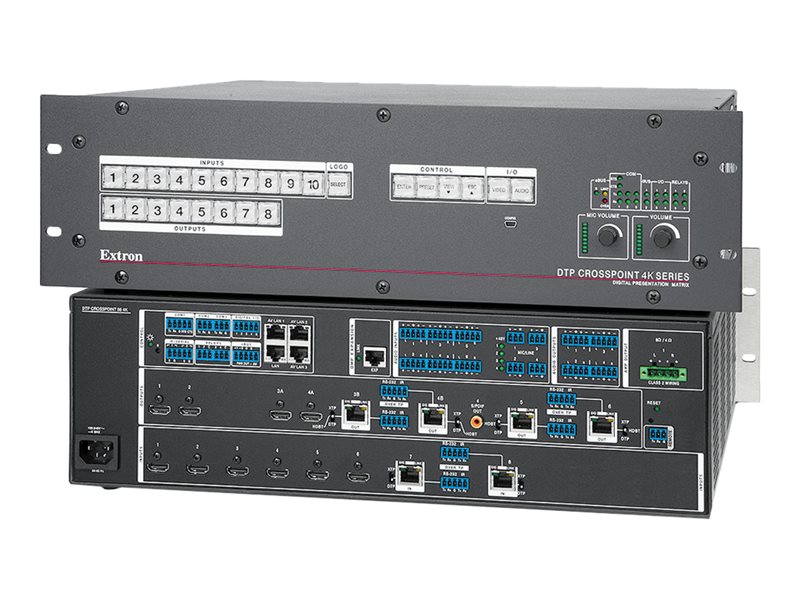

| Product Description | Extron DTP CrossPoint 86 4K IPCP SA 8x6 matrix switcher / scaler / audio DSP / audio power amplifier / control processor |
| Type | 8x6 matrix switcher / scaler / audio DSP / audio power amplifier / control processor |
| Dimensions (WxDxH) | 17 in - 16 in - 5.2 in |
| Weight | 16.98 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Type | 8x6 matrix switcher / scaler / audio DSP / audio power amplifier / control processor |
| Width | 17 in |
| Depth | 16 in |
| Height | 5.2 in |
| Weight | 16.98 lbs |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 147 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Terminals | |
| Terminals | (6) x HDMI input - 19 pin HDMI Type A ¦ (2) x DTP / XTP input - RJ-45 ¦ (4) x HDMI output - 19 pin HDMI Type A ¦ (4) x HDBaseT / DTP / XTP output - RJ-45 ¦ (1) x SPDIF output - RCA ¦ (6) x balanced/unbalanced audio input - terminal block - stereo ¦ (4) x audio line-in / microphone - terminal block ¦ (2) x balanced/unbalanced audio output - terminal block - stereo ¦ (1) x speakers output - terminal block - mono ¦ (3) x AV LAN - RJ-45 ¦ (3) x serial - terminal block ¦ (1) x remote control bus - terminal block ¦ (1) x USB 2.0 - 4 pin mini-USB Type B ¦ (1) x EXP port - RJ-45 ¦ (1) x network - RJ-45 |
| Studio & Production Equipment | |
| Features | HDCP compliant, 4K resolution support, built-in 2 x 50 watts audio amplifier, LinkLicense user interfaces upgrade |
