Audio/video over IP decoder / scaler
| Main Specifications | |
|---|---|

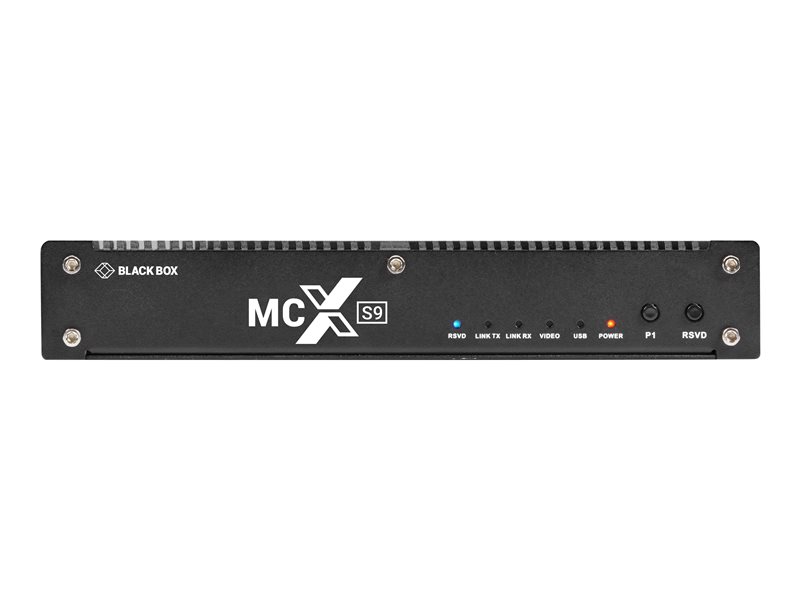

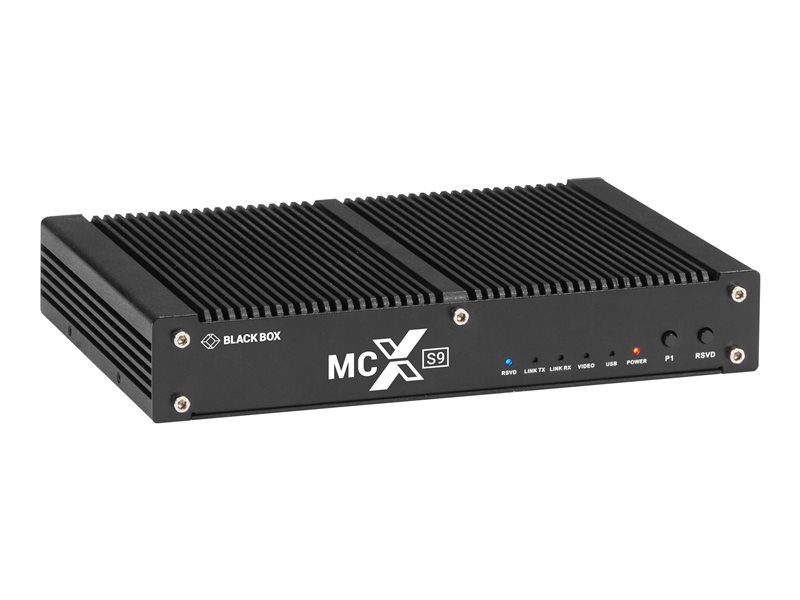

| Product Description | Black Box MCX-S9C-DEC audio/video over IP decoder / scaler |
| Type | Audio/video over IP decoder / scaler |
| Dimensions (WxDxH) | 8.3 in - 5.5 in - 1.4 in |
| Weight | 3.31 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Type | Audio/video over IP decoder / scaler |
| Width | 8.3 in |
| Depth | 5.5 in |
| Height | 1.4 in |
| Weight | 3.31 lbs |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x power adapter ¦ (1) x IR receiver ¦ (2) x rack mount brackets |
| Terminals | |
| Terminals | (1) x network - RJ-45 ¦ (1) x network - RJ-45 - 10 Gb Ethernet ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x serial - terminal block - RS-232 ¦ (1) x audio line-out - mini-phone stereo 3.5 mm ¦ (1) x infrared input - mini-phone 3.5 mm ¦ (1) x infrared output - mini-phone 3.5 mm |
| Studio & Production Equipment | |
| Features | HDR (High Dynamic Range) support, 4K60 4:4:4 signal support, SDVoE compliant |
