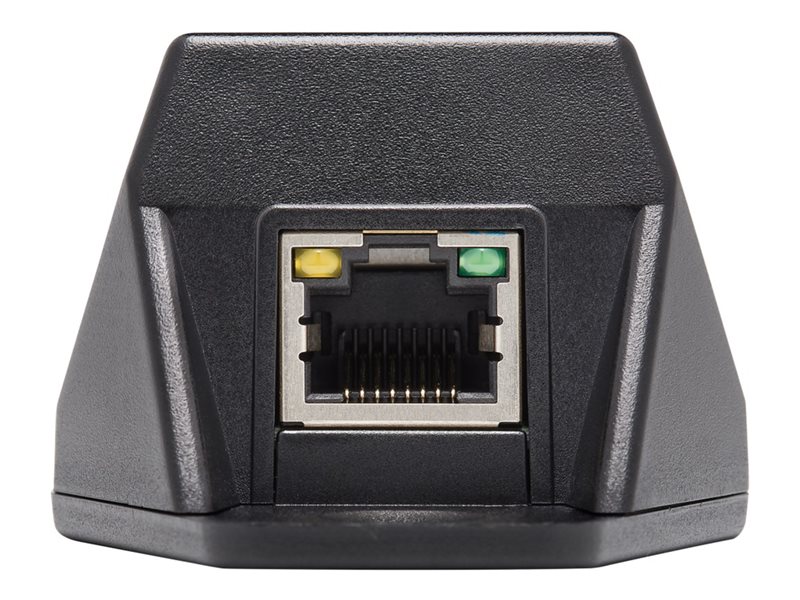

Cat5e/6/6a, RJ45, IEEE 802.3at/af, 30W, 1 Port, 328 ft. (100 m) - Network extender - 1GbE - 10Base-T, 100Base-TX, 1000Base-T - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Gigabit Ethernet PoE/PoE+ Extender - Cat5e/6/6a, RJ45, IEEE 802.3at/af, 30W, 1 Port, 328 ft. (100 m) - network extender - 1GbE, 100Mb LAN, 10Mb LAN |
| Device Type | Network extender |
| Form Factor | External |
| Cabling Type | 1000Base-T, 100Base-TX, 10Base-T |
| Data Link Protocol | 1GbE, 100Mb LAN, 10Mb LAN |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | PoE+ |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Network extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T (input) - RJ-45 ¦ 1 x Ethernet 1000Base-T (output) - RJ-45 - 30 W |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC, RoHS, REACH |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T, 100Base-TX, 10Base-T |
| Data Link Protocol | 1GbE, 100Mb LAN, 10Mb LAN |
| Max Transfer Distance | 328 ft |
| Features | Cascadable, full duplex mode, half duplex mode, wall mountable |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
