HDBaseT receiver
| Main Specifications | |
|---|---|

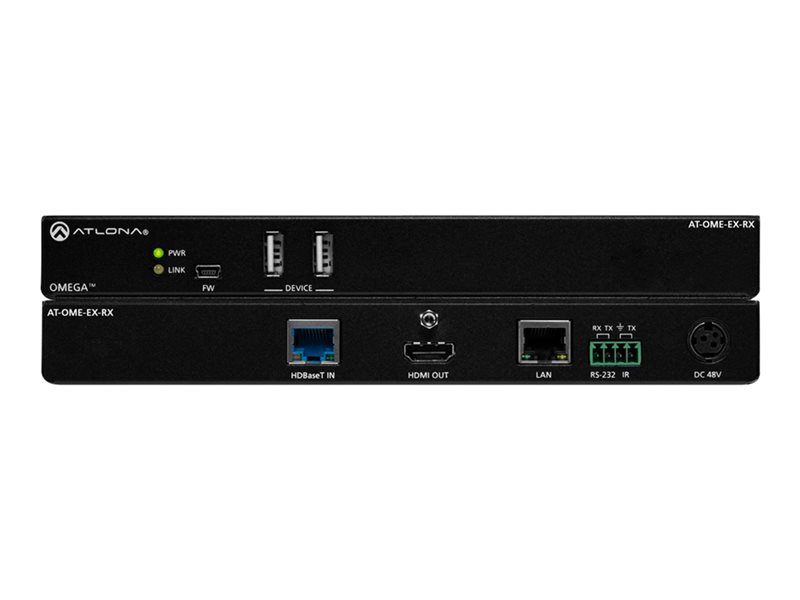

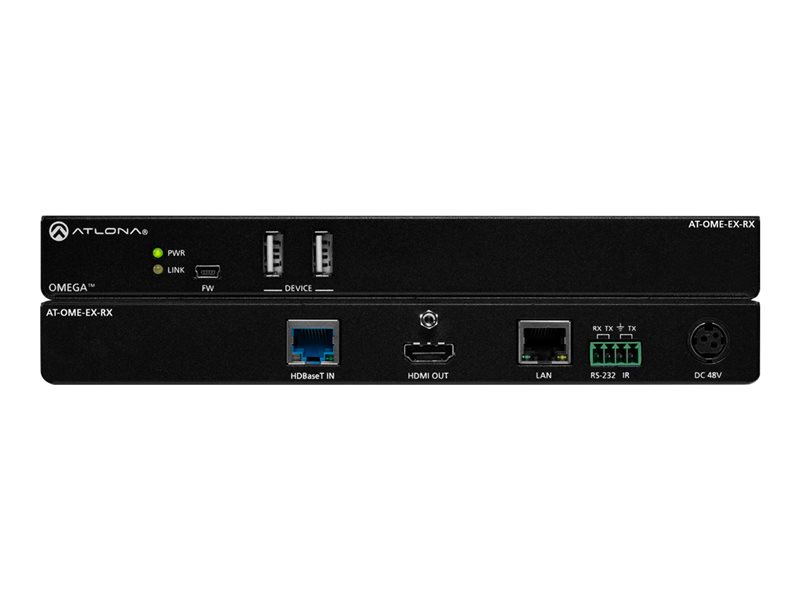

| Product Description | Atlona Omega AT-OME-EX-RX HDBaseT receiver |
| Type | HDBaseT receiver |
| Dimensions (WxDxH) | 8.6 in - 6 in - 1 in |
| Weight | 30.68 oz |
| General | |
| Type | HDBaseT receiver |
| Width | 8.6 in |
| Depth | 6 in |
| Height | 1 in |
| Weight | 30.68 oz |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 18.67 Watt |
| Low Voltage Power | DC 48 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Terminals | |
| Terminals | (2) x USB - 4 pin USB type A ¦ (1) x HDBaseT input - RJ-45 ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x network - RJ-45 ¦ (1) x serial - terminal block |
| Studio & Production Equipment | |
| Features | 4K resolution support, Power Over Ethernet support, HDCP 2.2 compliant |
