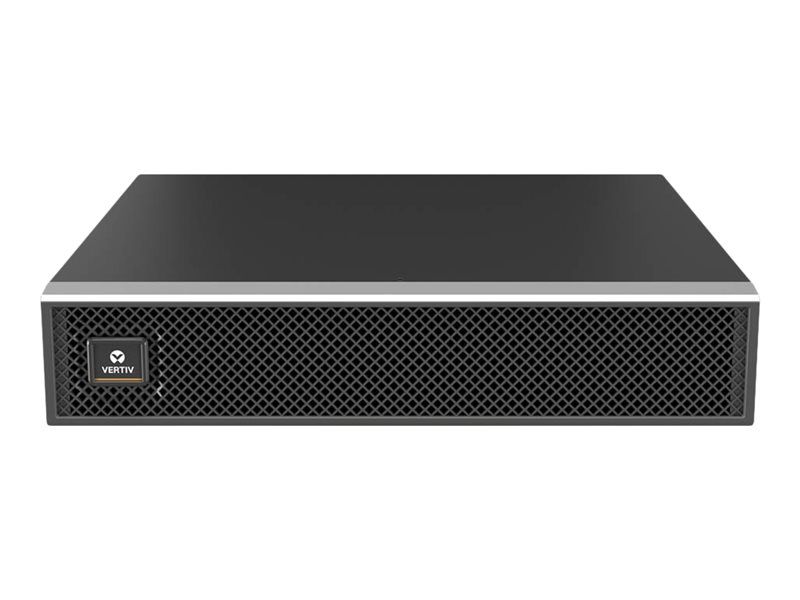

Battery enclosure (rack-mountable / external) - 6 x battery - lead acid - 9 Ah - 2U - with Rail Kit - for P/N: EDGE-22000IRT2UXL, EDGE-3000IRT2UXL, EDGE-3000IRT3UXL, GXT5-3000IRT2UXL
| Main Specifications | |
|---|---|
| Product Description | Liebert GXT5 - battery enclosure - lead acid - 9 Ah - with Rail Kit |
| Device Type | Battery enclosure - rack-mountable / external |
| Rack Size | 2U |
| Weight | 90.83 lbs |
| Battery | Lead acid - 9 Ah |
| Batteries Qty | 6 |
| Included Accessories | Rack mounting rails |
| Dimensions (WxDxH) | 16.9 in x 21.3 in x 3.3 in |
| Manufacturer Warranty | 3-year warranty |
| Bundled with | Rail Kit |
| Designed For | P/N: EDGE-22000IRT2UXL, EDGE-3000IRT2UXL, EDGE-3000IRT3UXL, GXT5-3000IRT2UXL, GXT5-3000IRT2UXLE, GXT5-3000LVRT2UXL, GXT5-3KL620RT2UXL, GXT5-3KL630RT2UXL |
| General | |
| Device Type | Battery enclosure - rack-mountable / external |
| Height (Rack Units) | 2U |
| Bundled with | Rail Kit |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Rack mounting rails |
| Compliant Standards | UL 1778, CSA C22.2 No. 107.1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Battery | |
| Quantity | 6 |
| Technology | Lead acid |
| Voltage Provided | 72 V |
| Capacity | 9 Ah |
| Features | Spill-proof, valve-regulated |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 21.3 in |
| Height | 3.3 in |
| Weight | 90.83 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.4 in |
| Shipping Depth | 28.2 in |
| Shipping Height | 10.3 in |
| Shipping Weight | 104.94 lbs |
| Compatibility Information | |
| Designed For | P/N: EDGE-22000IRT2UXL, EDGE-3000IRT2UXL, EDGE-3000IRT3UXL, GXT5-3000IRT2UXL, GXT5-3000IRT2UXLE, GXT5-3000LVRT2UXL, GXT5-3KL620RT2UXL, GXT5-3KL630RT2UXL |
