PoE injector (rack-mountable) - AC 120/230 V - 250 Watt - output connectors: 8 - 1U - 19" - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Black Box POE+ Gigabit Ethernet Injector 8-Port - PoE injector - 250 Watt - TAA Compliant |
| Device Type | PoE injector - rack-mountable |
| Power Over Ethernet (PoE) | PoE+ |
| Rack Size | 19" - 1U |
| Weight | 5.95 lbs |
| Input Voltage | AC 120/230 V |
| Output Voltage | 56 V |
| Power Capacity | 250 Watt |
| Input Connectors | 1 |
| Output connectors | 8 x RJ-45 - 56 V |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 17.3 in x 8.6 in x 1.8 in |
| General | |
| Device Type | PoE injector - rack-mountable |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Expansion / Connectivity | |
| Interfaces | 8 x Gigabit LAN - RJ-45 |
| Miscellaneous | |

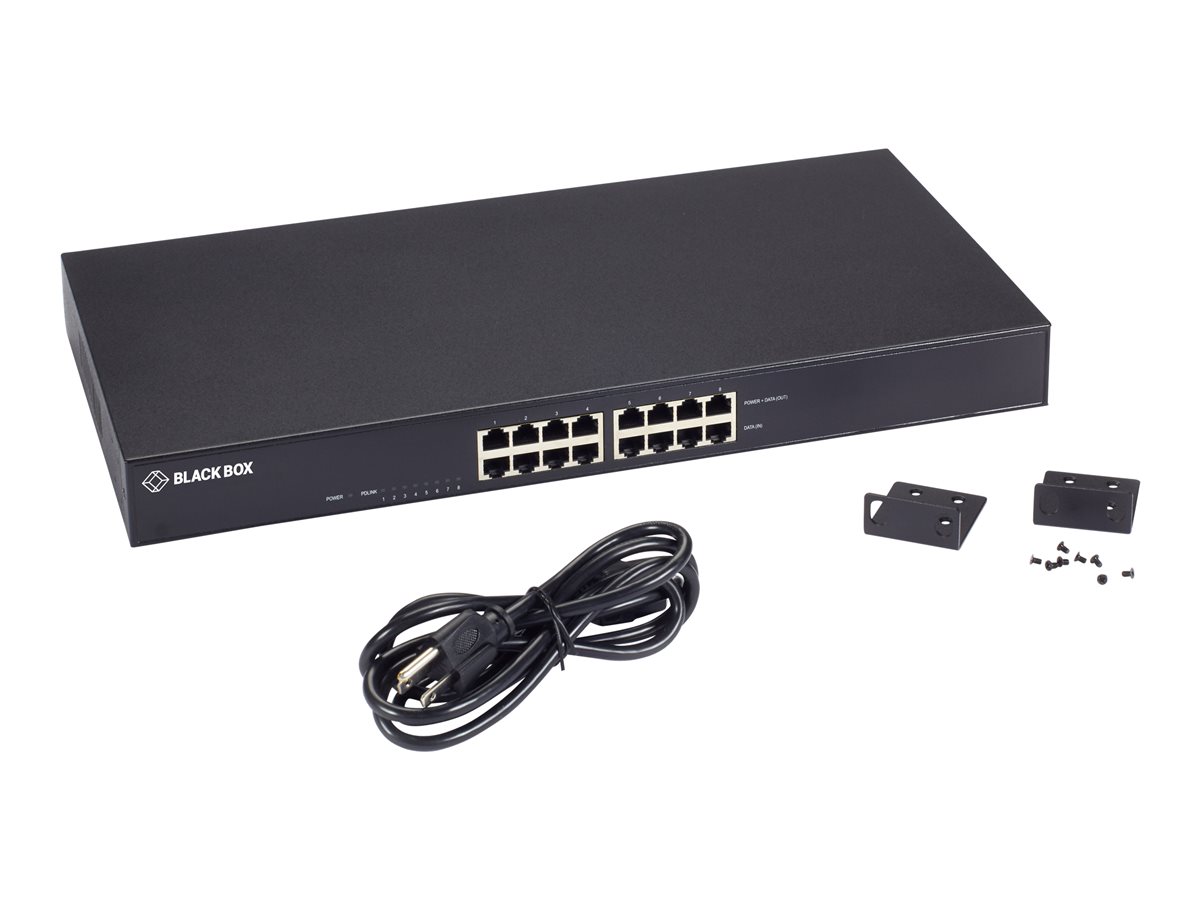

| Rack Mounting Kit | Included |
| Features | Auto MDIX support, flow control, backpressure, LED indicators, auto negotiating, short-circuit protection |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, FCC Class A certified, Plug and Play, RoHS, cUL, UL |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Power Device | |
| Input Voltage | AC 120/230 V |
| Input Voltage Range | AC 90 - 264 V |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 |
| Power Output Connectors Details | 8 x RJ-45 - 56 V |
| Output Voltage | 56 V |
| Power Capacity | 250 Watt |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 8.6 in |
| Height | 1.8 in |
| Weight | 5.95 lbs |
