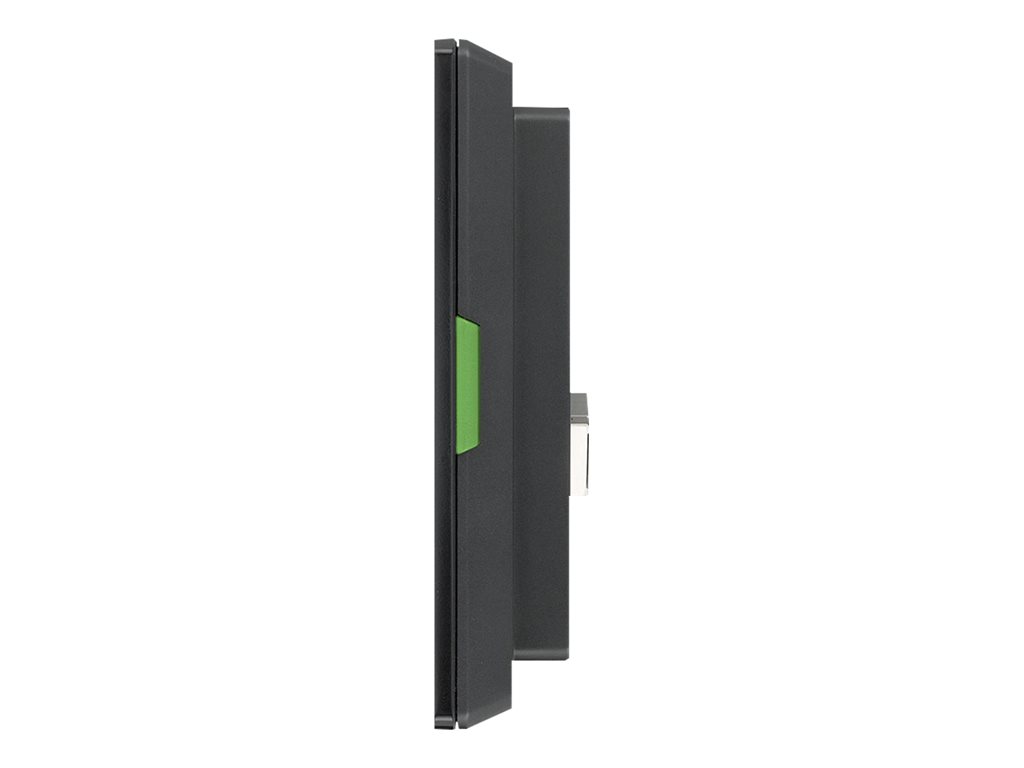

Scheduling panel - display - LED - 7" - cable - black
| Main Specifications | |
|---|---|
| Product Description | Extron TouchLink 725M scheduling panel - black |
| Device Type | Scheduling panel |
| Enclosure Color | Black |
| Dimensions (WxDxH) | 7.2 in x 1.2 in x 5 in |
| Weight | 17.64 oz |
| Connectivity Technology | Cable |
| Input Device | Touch screen |
| Display | LED 1024 x 600 - 7" |
| Audio Output | Speaker |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Scheduling panel |
| Width | 7.2 in |
| Depth | 1.2 in |
| Height | 5 in |
| Weight | 17.64 oz |
| Enclosure Color | Black |
| Enclosure Material | Plastic |
| Connectivity Technology | Cable |
| Input Device | Touch screen |
| Supported Digital Audio Standards | WAV |
| Features | Built-in light sensor, Power over Ethernet, wall mount, capacitive touch interface |
| Memory | |
| RAM | 2 GB - SDRAM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Included Accessories | Wall mount |
| Compliant Standards | FCC Class A certified, UL, VCCI, C-Tick, cUL, RoHS, KCC, WEEE, ICES, ISTA 1A |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Audio Output | |
| Type | Speaker |
| Display | |
| Display | LED 7" |
| Color Display | Yes |
| Color Support | 16.7 million colors |
| Image Brightness | 420 cd/m² |
| Horizontal Viewing Angle | +75 / -75 |
| Vertical Viewing Angle | +70 / -75 |
| Touch Screen | Yes |
| Display Format | 1024 x 600 |
| Connections | |
| Connector Type | 1 x LAN (RJ-45) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10.5 in |
| Shipping Depth | 7.5 in |
| Shipping Height | 0.3 in |
| Shipping Weight | 26.45 oz |
| Network | |
| Network Protocols Supported | TCP, UDP, HTTP, ICMP, DHCP, HTTPS, SFTP, SSH, DNS |
