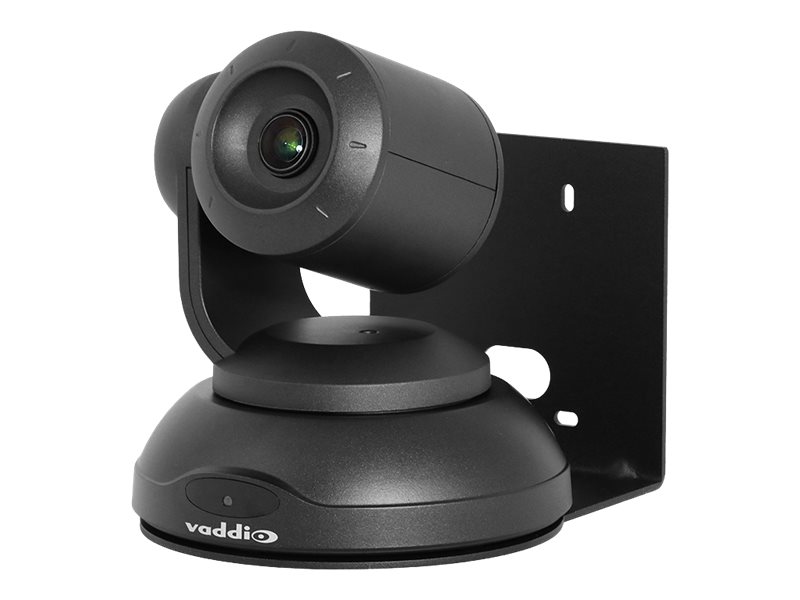

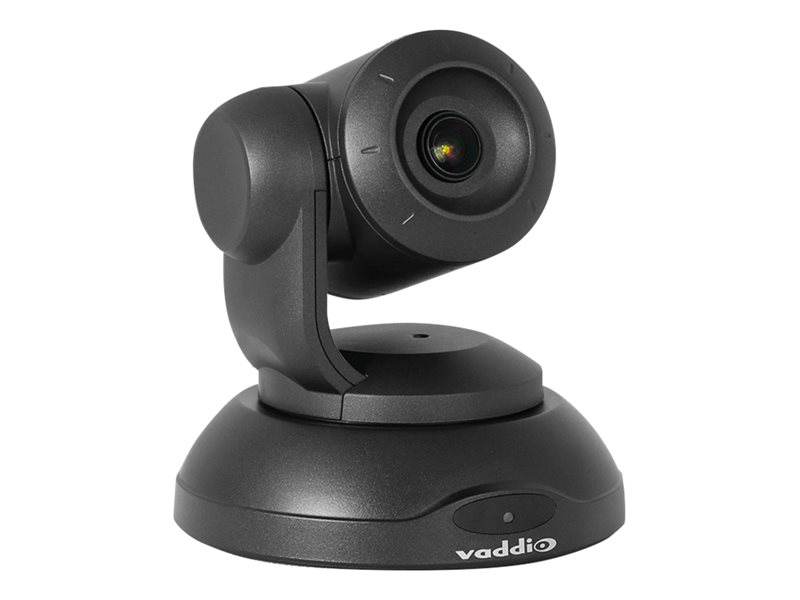

Conference camera - color - 1920 x 1080 - LAN 10/100 - USB 3.0 - H.264 - DC 12 V
| Main Specifications | |
|---|---|
| Product Description | Vaddio ConferenceSHOT FX - conference camera |
| Device Type | Conference camera - fixed |
| Camera Mount Type | Wall mount |
| Dimensions (WxDxH) | 6.1 in x 5.7 in x 6.4 in |
| Weight | 3 lbs |
| Color | Black |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 3 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080/30p, 750/60p, 1080/15p, 720/15p, 360/60p |
| Focus Adjustment | Automatic, manual (min distance 0.4 in) |
| Interfaces | USB 3.0 Ethernet 10Base-T/100Base-TX |
| Cables Included | 1 - SuperSpeed USB cable - external - 6 ft |
| Voltage | DC 12 V |
| Features | Manual white balance, Backlight Compensation (BLC), manual gain control, auto gain control, auto white balance, Auto Focus |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Conference camera |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 6.1 in |
| Depth | 5.7 in |
| Height | 6.4 in |
| Weight | 3 lbs |
| Localization | Worldwide |
| Expansion / Connectivity | |

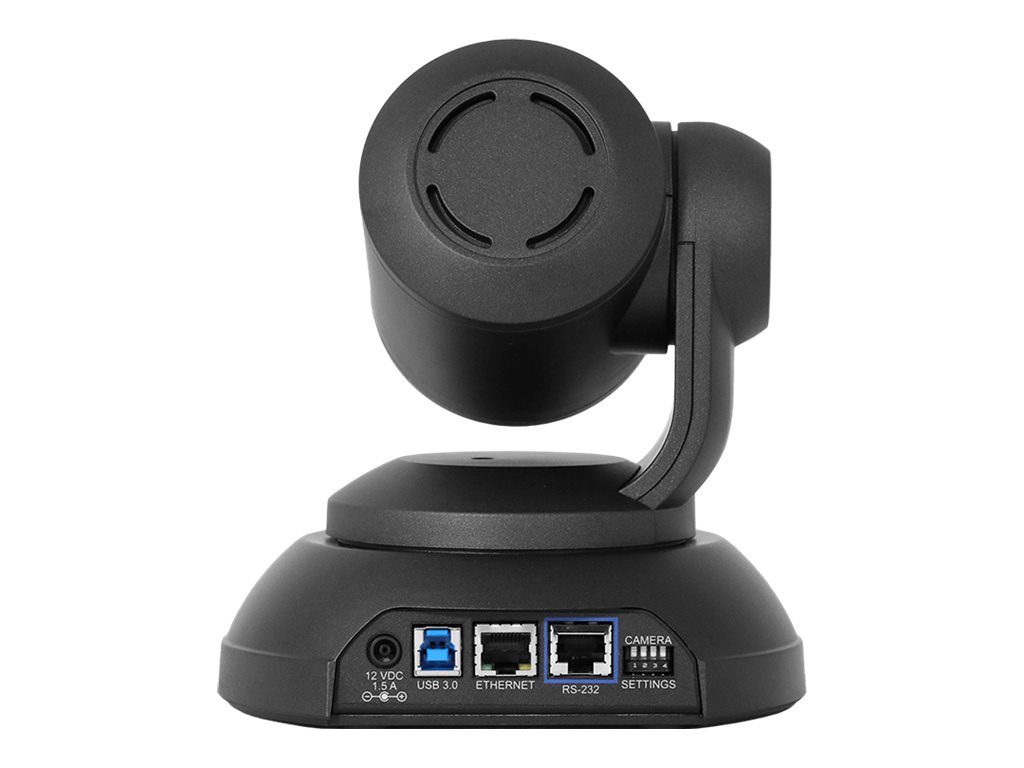

| Ports | USB 3.0 - 9 pin USB Type B ¦ LAN - RJ-45 ¦ Serial RS-232 - RJ-45 |
| Miscellaneous | |
| Included Accessories | Remote control, wall mount kit |
| Cables Included | 1 x SuperSpeed USB cable - external - 6 ft |
| Compliant Standards | Plug and Play |
| Color | Black |
| Power | |
| Power Requirements | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Camera | |
| Type | Color - fixed |
| Digital Video Format | H.264 |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080/30p, 750/60p, 1080/15p, 720/15p, 360/60p |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), manual gain control, auto gain control, auto white balance, Auto Focus |
| Lens Construction | |
| Optical Zoom | 3 x |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 0.4 in |
| Horizontal Field of View (degree) | 46 - 88 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | HTTP, RTSP, Telnet |
| Computer Interface | USB 3.0 |
