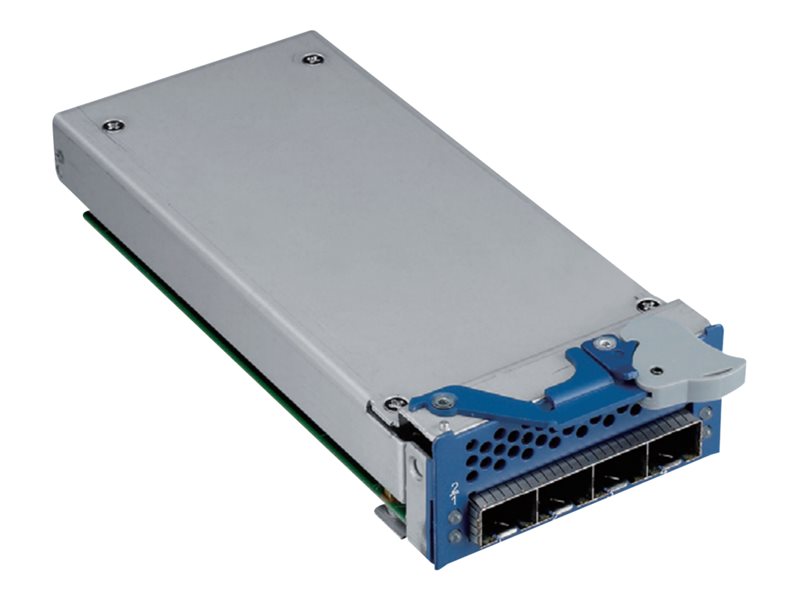

Expansion module - PCIe 2.0 x4 - SFP (mini-GBIC) x 4
| Main Specifications | |
|---|---|
| Product Description | Advantech NMC-0108 - expansion module - PCIe 2.0 x4 - SFP (mini-GBIC) x 4 |
| Device Type | Expansion module |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| PCI Specification Revision | PCIe 2.0 |
| Ports | SFP (mini-GBIC) x 4 |
| Dimensions (WxDxH) | 2.9 in x 6.4 in x 1.4 in |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Processor | 1 x Intel I350-AM4 |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ad (LACP) |
| System Requirements | Microsoft Windows Server 2012, Microsoft Windows Server 2008 R2 (32/64-bits), FreeBSD 9, VMware ESXi 5.1, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.0, SuSE Linux Enterprise Server 12 (64-bit), Red Hat Enterprise Linux 7 (64-bit) |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| PCI Specification Revision | PCIe 2.0 |
| Expansion / Connectivity | |
| Expansion Slots | 4 (total) / 4 (free) x SFP |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Ports | SFP (mini-GBIC) x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Status Indicators | Link/activity |
| Features | Flow control, VLAN support |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ad (LACP) |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012, Microsoft Windows Server 2008 R2 (32/64-bits), FreeBSD 9, VMware ESXi 5.1, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.0, SuSE Linux Enterprise Server 12 (64-bit), Red Hat Enterprise Linux 7 (64-bit) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Processor / Memory | |
| Processor | 1 x Intel I350-AM4 |
| Dimensions & Weight | |
| Width | 2.9 in |
| Depth | 6.4 in |
| Height | 1.4 in |
