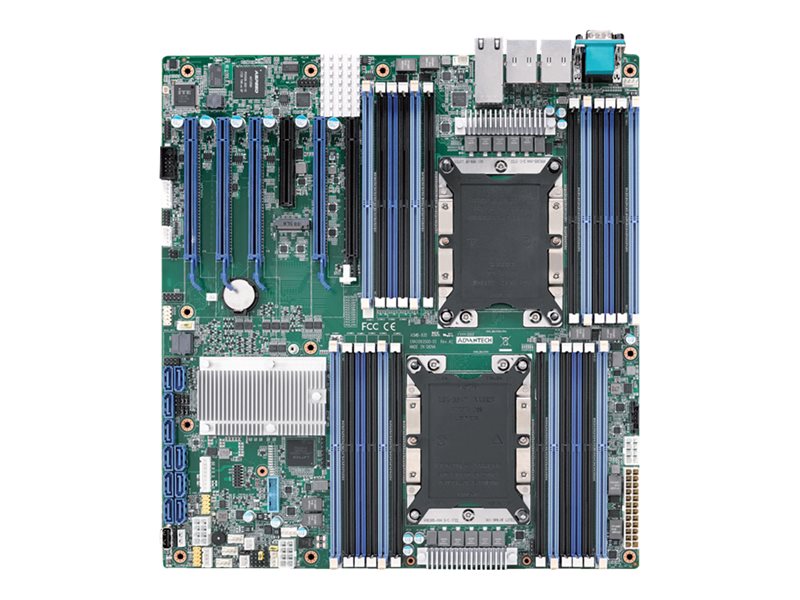

Motherboard - extended ATX - LGA3647-P0 Socket - 2 CPUs supported - C621 Chipset - USB 3.0 - 2 x Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|
| Product Description | Advantech ASMB-935I-00A1 - motherboard - extended ATX - LGA3647-P0 Socket - C621 |
| Product Type | Motherboard - extended ATX |
| Chipset Type | Intel C621 |
| Processor Socket | 2 x LGA3647-P0 Socket |
| Compatible Processors | Xeon (Maximum TDP 205 Watt) |
| Max RAM Size | 1.5 TB |
| RAM Supported | 24 DIMM slots - DDR4, ECC, registered |
| Storage Ports | 10 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire Ports | 4 x USB 3.0 + 1 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via headers) |
| Graphics | ASPEED AST2500 |
| LAN | 2 x Gigabit Ethernet |
| General | |
| Product Type | Motherboard - extended ATX |
| Chipset Type | Intel C621 |
| Processor Socket | LGA3647-P0 Socket |
| Max Processors Qty | 2 |
| Compatible Processors | Xeon (Maximum TDP 205 Watt) |
| Expansion / Connectivity | |
| Expansion Slots | 2 x CPU ¦ 244 x DIMM 288-pin ¦ 5 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 ¦ 1 x M.2 socket |
| Storage Interfaces | Intel C621: SATA-600 -connectors: 10 x 7pin SATA - 19 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ Intel C621: -connectors: 1 x M.2 |
| RAID Features | Software RAID 0/ 1 / 10 / 5 |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.0 ¦ 1 x serial ¦ 1 x VGA |
| Internal Interfaces | 2 x USB 3.0 - header ¦ 4 x USB 2.0 - header ¦ 1 x USB 2.0 - Type A ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x PS/2 - header |
| Power Connectors | 24-pin main power connector, 3 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Included Accessories | I/O back plate, 2 x M.2 screws, 2 CPU power cables |
| Cables Included | 2 x Serial ATA cable ¦ 2 x Serial ATA power cable |
| Software Included | Drivers & utilities |
| Compliant Standards | FCC |
| Width | 12 in |
| Depth | 13 in |
| Weight | 3.31 lbs |
| Features | |
| BIOS Type | AMI |
| BIOS Features | IPMI support |
| Hardware Features | WatchDog Timer |
| LAN | |
| Network Controller | 2 x Intel I210AT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| Supported RAM | |
| Max Size | 1.5 TB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered |
| Details | 1.5 TB - Load-Reduced - ECC ¦ 768 GB - registered - ECC |
