Motherboard - micro ATX - LGA1151 Socket - C246 Chipset - USB 3.1 Gen 1, USB 3.1 Gen 2 - 2 x Gigabit LAN - onboard graphics (CPU required) - HD Audio
| Main Specifications | |
|---|---|

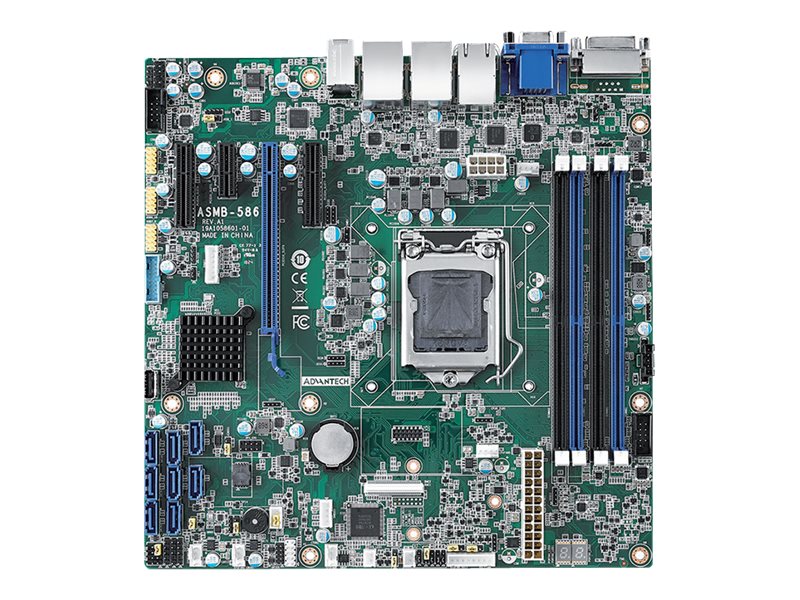

| Product Description | Advantech ASMB-586G2-00A1 - motherboard - micro ATX - LGA1151 Socket - C246 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C246 |
| Processor Socket | 1 x LGA1151 Socket |
| Compatible Processors | Core i5, Core i3, Core i7, Xeon E (Maximum TDP 95 Watt) |
| Max RAM Size | 128 GB |
| RAM Supported | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
| Storage Ports | 8 x SATA-600 |
| USB / FireWire Ports | 4 x USB 3.1 Gen 2 + (2 x USB 3.1 Gen 1 + 6 x USB 2.0 via headers) |
| Graphics | Intel HD Graphics |
| Audio | HD Audio |
| LAN | 2 x Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C246 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core i5, Core i3, Core i7, Xeon E (Maximum TDP 95 Watt) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x4 ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 |
| Storage Interfaces | Intel C246: SATA-600 -connectors: 8 x 7pin Serial ATA - 8 devices |
| RAID Features | Software RAID 0/ 1 / 10 / 5 |
| Interfaces | 1 x DVI-D ¦ 1 x VGA ¦ 1 x microphone ¦ 1 x audio line-out ¦ 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 2 ¦ 1 x HDMI |
| Internal Interfaces | 2 x USB 3.1 Gen 1 - header ¦ 2 x serial - header ¦ 1 x USB 2.0 - Type A ¦ 3 x USB 2.0 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Included Accessories | I/O back plate |
| Cables Included | 1 x Serial ATA cable ¦ 1 x Serial ATA power cable ¦ 1 x serial cable |
| Compliant Standards | FCC |
| Width | 9.6 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio |
| Audio Codec | Realtek ALC892 |
| LAN | |
| Network Controller | Intel I219LM / I210AT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Graphics | |
| Graphics Controller | Intel HD Graphics |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
