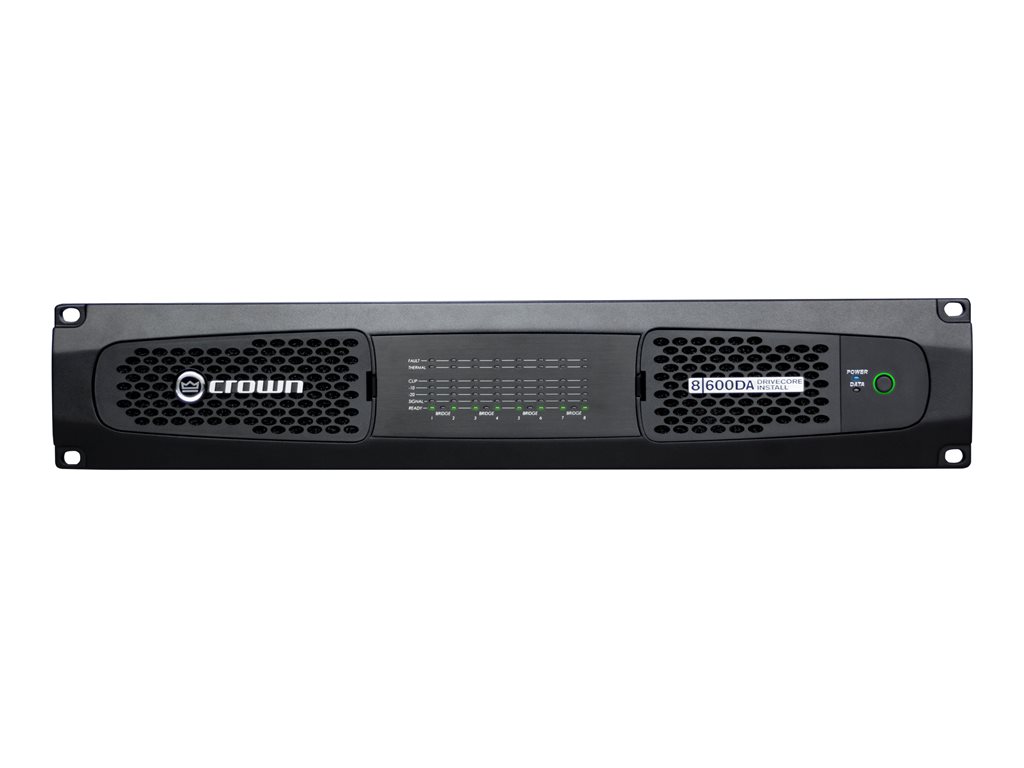

Power amplifier - 8 x 600 Watt
| Main Specifications | |
|---|---|
| Product Description | Crown DCi DriveCore Install DA DCi 8|600DA - power amplifier |
| Product Type | Power amplifier |
| Audio Specifications | Amplifier - 20 - 20000 Hz - 108 dB 0.35% |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 19 in x 16.7 in x 3.5 in |
| Weight | 29.98 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Power amplifier |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Power | |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Connections | |

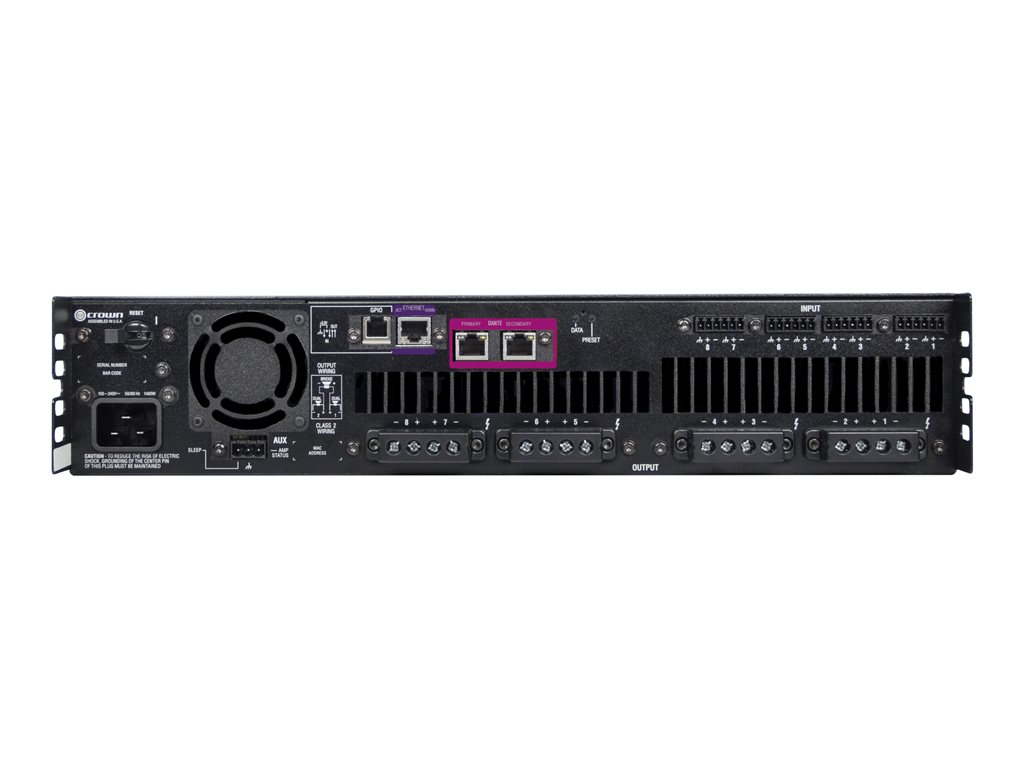

| Connectors | 8 x balanced audio input (terminal block) - rear ¦ 8 x speakers output (screw-type) - rear ¦ Network (RJ-45) - rear ¦ GPIO - rear ¦ 2 x Dante (RJ-45) - rear |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 16.7 in |
| Height | 3.5 in |
| Weight | 29.98 lbs |
| Audio System | |
| Functions | Amplifier |
| Digital Sound Processor (DSP) | Yes |
| Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 108 dB - THD - 0.35% |
| Output Channel Qty | 8 channels |
| Output Power (per channel) | 600 Watt |
| Amplifier Output Details | 300 Watt - 2 Ohm - 8 channels ¦ 600 Watt - 4 Ohm - 8 channels ¦ 600 Watt - 8 Ohm - 8 channels ¦ 300 Watt - 16 Ohm - 8 channels ¦ 600 Watt - 8 channels (70V) ¦ 600 Watt - 8 channels (100V) ¦ 600 Watt - 4 Ohm - 4 channels (bridged) ¦ 1200 Watt - 8 Ohm - 4 channels (bridged) ¦ 1200 Watt - 16 Ohm - 4 channels (bridged) ¦ 1200 Watt - 4 channels (140V bridged) ¦ 1200 Watt - 4 channels (200V bridged) |
| Features | Cooling fan, bridged output capability, rack mountable, HiQnet compatible, 70V/100V or 2/4/8/16 Ohm operation, DriveCore Technology |
