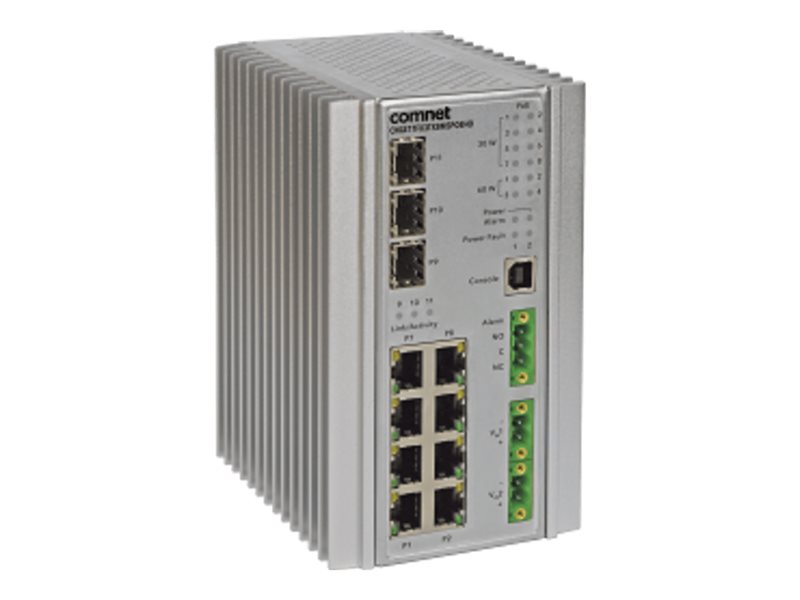

Kit - switch - L2+ - managed - 8 x 10/100/1000 (PoE) + 3 x Gigabit SFP - DIN rail mountable, wall-mountable - PoE
| Main Specifications | |
|---|---|
| Product Description | COMNET CNGE11FX3TX8MSPOEHOK - Kit - switch - 11 ports - managed |
| Device Type | Switch - 11 ports - L2+ - managed |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 3 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| Performance | Switching latency: 7 µs ¦ Switching bandwidth: 28 Gbps |
| Capacity | VLANs supported: 256 ¦ IGMP multicast groups per VLAN: 128 ¦ Priority queues: 8 ¦ Static routes: 32 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9.6KB |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, CLI |
| Features | Flow control, VLAN support, IGMP snooping, store and forward, IPv6 support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, MLD snooping, LACP support, LLDP support, DHCP relay, over-current protection, DHCP client, MVR, CoS, ERPS, EEE, Device Binding security |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, UPnP, ITU-T G.8032 |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 3.5 in x 4.5 in x 6 in |
| Weight | 2.65 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 11 ports - L2+ - managed |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 3 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| Performance | Switching latency: 7 µs ¦ Switching bandwidth: 28 Gbps |
| Capacity | VLANs supported: 256 ¦ IGMP multicast groups per VLAN: 128 ¦ Priority queues: 8 ¦ Static routes: 32 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9.6KB |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, CLI |
| Authentication Method | RADIUS, TACACS+ |
| Features | Flow control, VLAN support, IGMP snooping, store and forward, IPv6 support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, MLD snooping, LACP support, LLDP support, DHCP relay, over-current protection, DHCP client, MVR, CoS, ERPS, EEE, Device Binding security |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, UPnP, ITU-T G.8032 |
| RAM | 1 GB |
| Flash Memory | 128 MB |
| Status Indicators | Port status, power, fail, alarm |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T RJ-45 PoE - 30 W ¦ 3 x Gigabit LAN SFP ¦ 1 x console (USB) ¦ 4 x 1000Base-T RJ-45 PoE - 60 W |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | 2 x "SFP-6" module, power supply |
| MTBF | 100,000 hours |
| Compliant Standards | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, cULus, EN 50121-4, NEMA TS-2, EN 55022 Class A |
| Power | |
| Power Device | External power adapter |
| Power Redundancy | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 3.5 in |
| Depth | 4.5 in |
| Height | 6 in |
| Weight | 2.65 lbs |
