8x1:3 switcher / scaler / audio DSP / audio power amplifier
| Main Specifications | |
|---|---|

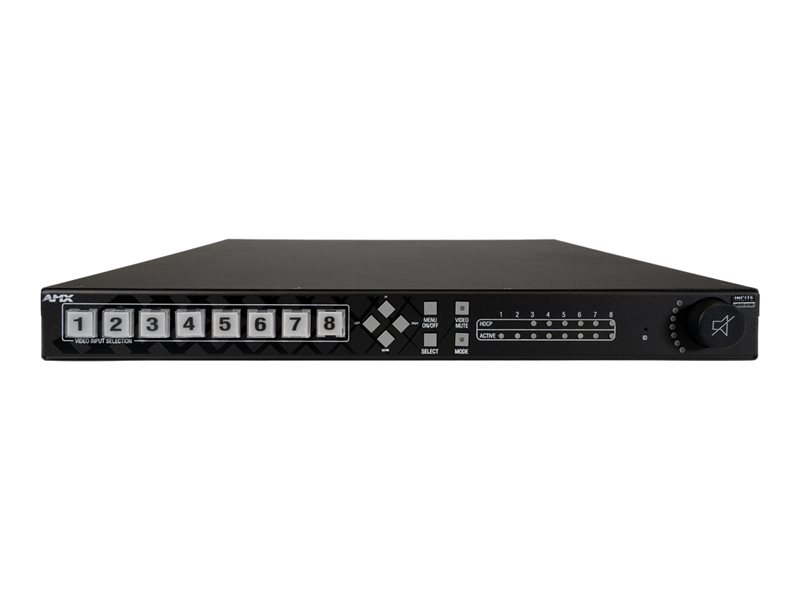

| Product Description | AMX Incite 813A 8x1:3 switcher / scaler / audio DSP / audio power amplifier |
| Type | 8x1:3 switcher / scaler / audio DSP / audio power amplifier |
| Dimensions (WxDxH) | 19 in - 14 in - 1.7 in |
| General | |
| Type | 8x1:3 switcher / scaler / audio DSP / audio power amplifier |
| Width | 19 in |
| Depth | 14 in |
| Height | 1.7 in |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% |
| Kit Content | |
| Kit Content | Rack mount brackets |
| Terminals | |
| Terminals | (4) x HDMI input - 19 pin HDMI Type A ¦ (2) x VGA input - 15 pin HD D-Sub (HD-15) ¦ (2) x DXLite input - RJ-45 ¦ (6) x balanced audio input - terminal block ¦ (2) x audio line-in / microphone - terminal block ¦ (2) x balanced audio output - terminal block ¦ (6) x network - RJ-45 ¦ (2) - terminal block ¦ (1) x DXLite output - RJ-45 ¦ (2) x HDMI output - 19 pin HDMI Type A ¦ Serial - terminal block |
| Studio & Production Equipment | |
| Features | EDID support, HDCP 2.2 compliant, built-in 2 x 25 watts audio amplifier, Advanced Feedback Suppression (AFS), built-in 50W 70/100V audio amplifier, 4K60 4:4:4 signal support |
