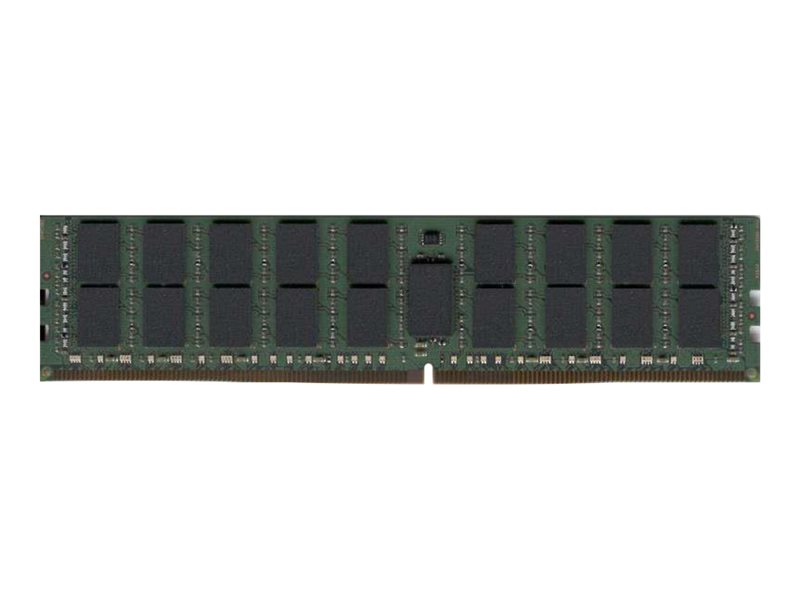

DDR4 - module - 8 GB - DIMM 288-pin - 2933 MHz / PC4-23400 - CL21 - 1.2 V - registered - ECC - for Lenovo ThinkAgile HX2320 Appliance; ThinkAgile VX Certified Node 7Y94; ThinkSystem SD650
| Main Specifications | |
|---|---|
| Product Description | Dataram - DDR4 - module - 8 GB - DIMM 288-pin - 2933 MHz / PC4-23400 - registered |
| Product Type | Memory module |
| Capacity | 8 GB |
| Memory Type | DDR4 SDRAM - DIMM 288-pin |
| Upgrade Type | System specific |
| Data Integrity Check | ECC |
| Speed | 2933 MHz (PC4-23400) |
| Latency Timings | CL21 |
| Features | Temperature monitoring, single rank, Serial Presence Detect (SPD), registered |
| Voltage | 1.2 V |
| OEM Manufacturer Equivalent Part Number | Lenovo 4ZC7A08706 |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | Lenovo ThinkAgile HX2320 Appliance 7X83; ThinkAgile VX Certified Node 7Y94; ThinkSystem SD530 7X21; SD650 7X58; SR530 7X07, 7X08; SR550 7X03, 7X04; SR570 7Y02, 7Y03, 7Y04; SR590 7X98, 7X99; SR630 7X01, 7X02; SR650 7X05, 7X06; SR850 7X18, 7X19; SR860 7X69, 7X70; ST550 7X09, 7X10 |
| General | |
| Capacity | 8 GB |
| Upgrade Type | System specific |
| OEM Manufacturer Equivalent Part Number | Lenovo 4ZC7A08706 |
| Width | 5.2 in |
| Depth | 0.2 in |
| Height | 1.2 in |
| Memory | |
| Type | DRAM memory module |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Module Height (inch) | 1.23 |
| Speed | 2933 MHz (PC4-23400) |
| Latency Timings | CL21 |
| Data Integrity Check | ECC |
| Features | Temperature monitoring, single rank, Serial Presence Detect (SPD), registered |
| Chips Organization | X8 |
| Voltage | 1.2 V |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | RoHS, JEDEC |
| Compatibility Information | |
| Designed For | Lenovo ThinkAgile HX2320 Appliance 7X83 ¦ Lenovo ThinkAgile VX Certified Node 7Y94 ¦ Lenovo ThinkSystem SD530 7X21 ¦ Lenovo ThinkSystem SD650 7X58 ¦ Lenovo ThinkSystem SR530 7X07, 7X08 ¦ Lenovo ThinkSystem SR550 7X03, 7X04 ¦ Lenovo ThinkSystem SR570 7Y02, 7Y03, 7Y04 ¦ Lenovo ThinkSystem SR590 7X98, 7X99 ¦ Lenovo ThinkSystem SR630 7X01, 7X02 ¦ Lenovo ThinkSystem SR650 7X05, 7X06 ¦ Lenovo ThinkSystem SR850 7X18, 7X19 ¦ Lenovo ThinkSystem SR860 7X69, 7X70 ¦ Lenovo ThinkSystem ST550 7X09, 7X10 |
