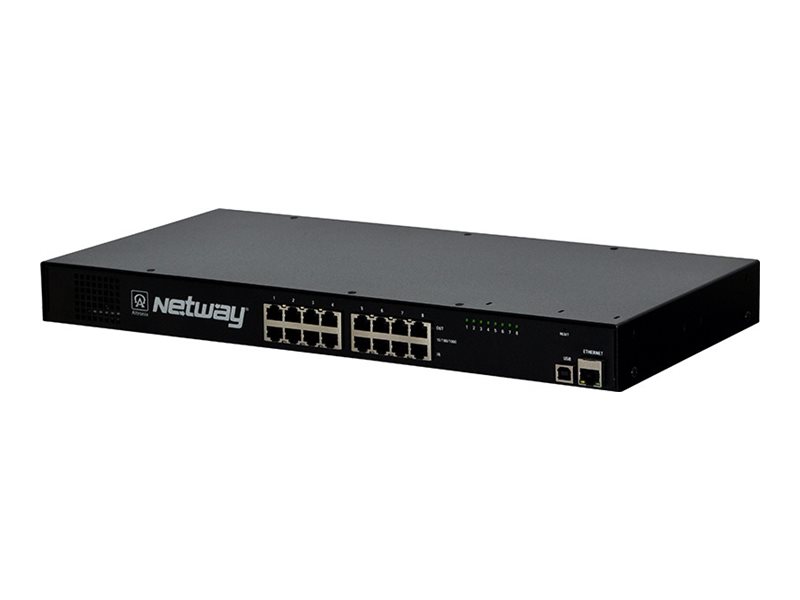

PoE injector (rack-mountable) - AC 115/230 V - 480 Wh - output connectors: 8 - 1U - 19"
| Main Specifications | |
|---|---|
| Product Description | Altronix Netway 8BT - PoE injector - 480 Wh |
| Device Type | PoE injector - rack-mountable |
| Power Over Ethernet (PoE) | High PoE |
| Rack Size | 19" - 1U |
| Weight | 6.39 lbs |
| Input Voltage | AC 115/230 V |
| Output Voltage | DC 55 V |
| Power Capacity | 480 Wh |
| Output connectors | 8 x RJ-45 90 W |
| Dimensions (WxDxH) | 19.1 in x 8.5 in x 1.6 in |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | PoE injector - rack-mountable |
| Power Over Ethernet (PoE) | High PoE |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Expansion / Connectivity | |
| Interfaces | 4 x LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Features | Short-circuit protection, LED indicators |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, UL, cUL, RoHS, UL 60950-1, UL 294 |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 85% |
| Power Device | |
| Input Voltage | AC 115/230 V |
| Frequency Required | 60 Hz |
| Power Output Connectors Details | 8 x RJ-45 90 W |
| Output Voltage | DC 55 V |
| Power Capacity | 480 Wh |
| Dimensions & Weight | |
| Width | 19.1 in |
| Depth | 8.5 in |
| Height | 1.6 in |
| Weight | 6.39 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20.3 in |
| Shipping Depth | 12.5 in |
| Shipping Height | 5.5 in |
| Shipping Weight | 7.72 lbs |
