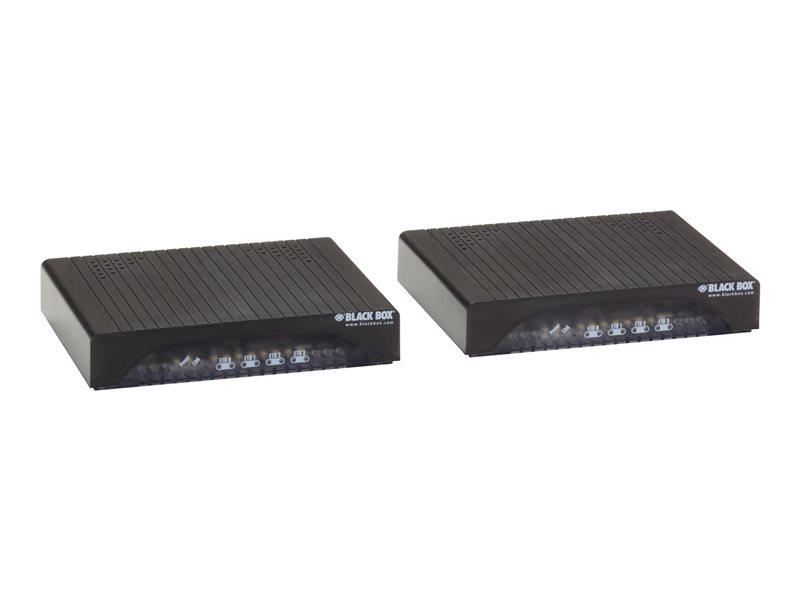

Network extender - 100Mb LAN - 10Base-T, 100Base-TX - 4 ports - up to 6.2 miles
| Main Specifications | |
|---|---|
| Product Description | Black Box G-SHDSL Ethernet Extender Kit, 2-Wire - network extender - 10Mb LAN, 100Mb LAN |
| Device Type | Network extender |
| Ports Qty | 4 |
| Form Factor | External |
| Localization | United Kingdom, United States, Europe |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Transfer Rate | 15.2 Mbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Remote Management Protocol | Telnet, HTTP |
| Max Transfer Distance | 6.2 miles |
| Power | AC 90 - 260 V |
| Dimensions (WxDxH) | 5 in x 4.2 in x 1.5 in |
| Weight | 2.2 lbs |
| General | |
| Device Type | Network extender |
| Form Factor | External |
| Localization | United Kingdom, United States, Europe |
| Expansion / Connectivity | |
| Interfaces | 4 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 2 x network - RJ-45 |
| Miscellaneous | |
| MTBF | 4.7 years |
| Compliant Standards | FCC Part 15 A, Directive 73/23/EEC, Directive 89/336/EEC |
| Networking | |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 15.2 Mbps |
| MAC Address Table Size | 2K entries |
| Line Coding Format | TC-PAM |
| Remote Management Protocol | Telnet, HTTP |
| Max Transfer Distance | 6.2 miles |
| Status Indicators | Power, WAN, LAN, link/activity |
| Features | Half duplex mode, full duplex mode, built-in DIP switch |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 90 - 260 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 5 in |
| Depth | 4.2 in |
| Height | 1.5 in |
| Weight | 2.2 lbs |
