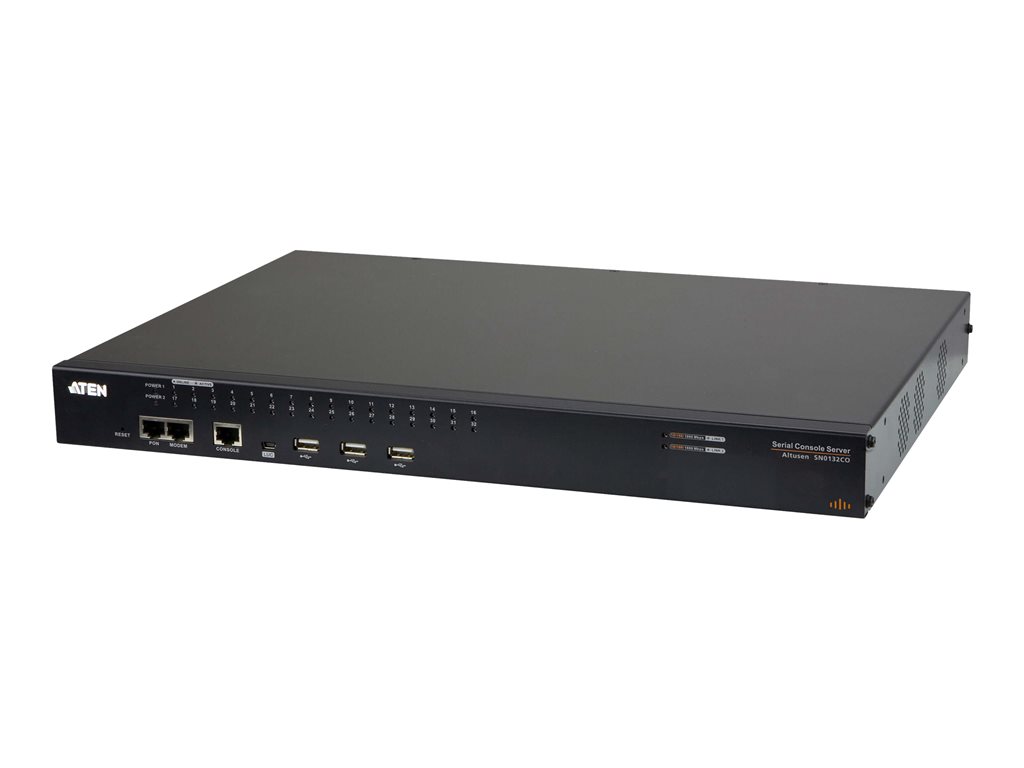

Console server - 32 ports - 1GbE, RS-232 - 1U
| Main Specifications | |
|---|---|
| Product Description | ATEN Altusen SN0132CO - console server |
| Device Type | Console server |
| Form Factor | External - 1U |
| Ports Qty | 32 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Included Accessories | 4 foot pads, mounting kit |
| OS Required | UNIX, SunSoft Solaris, Linux, Microsoft Windows 2000 or later, Microsoft Windows Server 2003, Microsoft Windows Server 2008 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 12.9 in x 1.7 in |
| Weight | 10.67 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Built-in Devices | LED panel |
| Width | 17.3 in |
| Depth | 12.9 in |
| Height | 1.7 in |
| Weight | 10.67 lbs |
| Expansion / Connectivity | |
| Interfaces | 32 x RS-232 - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x modem - RJ-45 ¦ 3 x USB - Type A ¦ 1 x mini-USB - Type B ¦ 1 x console - RJ-45 ¦ 1 x PON - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 4 foot pads, mounting kit |
| Cables Included | 1 x USB cable |
| Compliant Standards | FCC Part 15, RoHS, FIPS 140-2 |
| Networking | |
| Form Factor | External |
| Ports Qty | 32 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, SMTP |
| Remote Management Protocol | Telnet, HTTP, SSH |
| Status Indicators | Power, LAN, serial |
| Features | Auto-sensing per device, Syslog support, MAC address filtering, IPv6 support, IP address filtering, modem emulation, SMS alert, IPv4 support, SNMP trap, e-mail notification, metal housing, SNMP support, event notification, SMTP e-mail client, Network Timing Protocol (NTP) |
| Encryption Algorithm | 2048-bit RSA, TLS 1.2 |
| Authentication Method | Kerberos, RADIUS, TACACS+, LDAP, Active Directory |
| Compliant Standards | TLS 1.2 |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | UNIX, SunSoft Solaris, Linux, Microsoft Windows 2000 or later, Microsoft Windows Server 2003, Microsoft Windows Server 2008 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
