10 Gbps, 2 USB-C & 2 USB-A, 15 kV ESD Immunity, Iron Housing - Hub - 4 x USB 3.1 Gen 2 - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series 4-Port Industrial-Grade USB 3.1 Gen 2 Hub - 10 Gbps, 2 USB-C & 2 USB-A, 15 kV ESD Immunity, Iron Housing - hub - 4 ports - TAA Compliant |
| Device Type | Hub - 4 ports |
| Subtype | USB |
| Ports | 4 x USB 3.1 Gen 2 |
| Features | Rugged, 15KV ESD Protector, metal housing, USB Battery Charging Port, over-current protection, UASP |
| Compliant Standards | USB 3.1 Gen 1, USB 3.1 Gen 2, USB 3.0 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 4.2 in x 2.5 in x 1 in |
| Weight | 8.01 oz |
| Color | Black |
| Localization | Australia, Europe, North America, United Kingdom |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Hub - 4 ports |
| Enclosure Type | Desktop |
| Subtype | USB |
| Ports | 4 x USB 3.1 Gen 2 |
| Features | Rugged, 15KV ESD Protector, metal housing, USB Battery Charging Port, over-current protection, UASP |
| Compliant Standards | USB 3.1 Gen 1, USB 3.1 Gen 2, USB 3.0 |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 3.1 Gen 2 Type A 2A charging port ¦ 2 x USB 3.1 Gen 2 Type C 2A charging port |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |

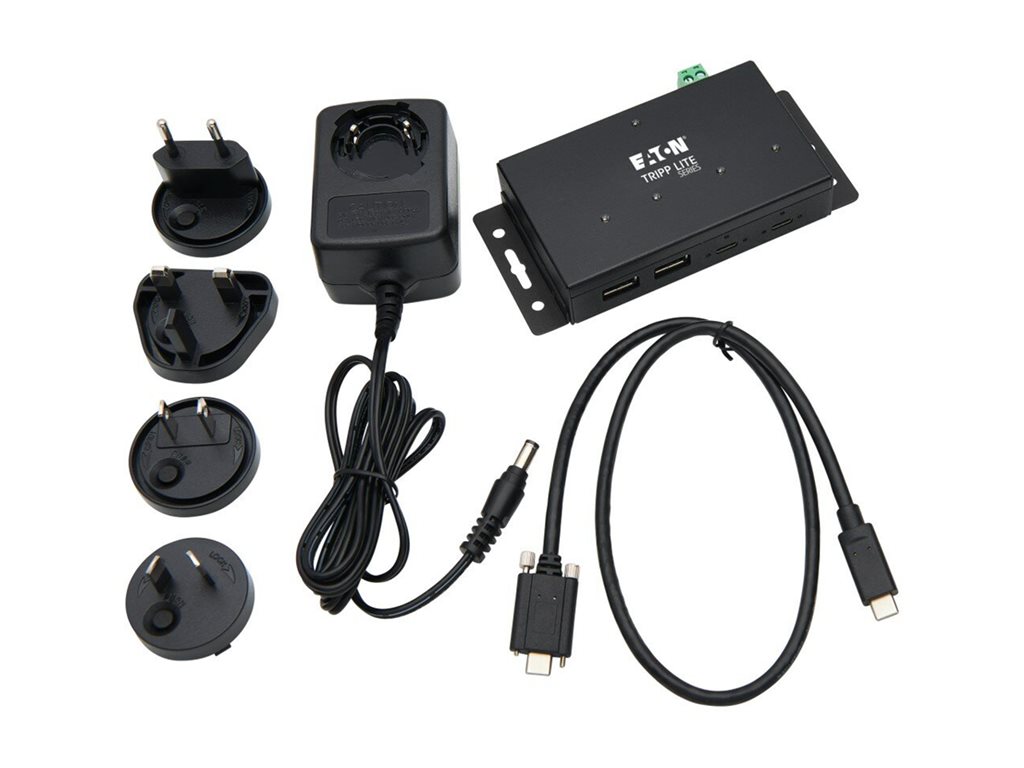

| Included Accessories | 4 power plug adapters |
| Cables Included | 1 x USB 3.1 Gen 2 cable - 2 ft |
| Compliant Standards | Plug and Play, USB Battery Charging Specification Rev. 1.2, RoHS, FCC, GS, CB, PSE Mark, TUV, UL, cUL |
| TAA Compliant | Yes |
| Localization | Australia, Europe, North America, United Kingdom |
| Power | |
| Power Device | External power adapter |
| Power Provided | 5 V - 4 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 1.75 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Min Storage Temperature | 14 °F |
| Max Storage Temperature | 176 °F |
| Dimensions & Weight | |
| Width | 4.2 in |
| Depth | 2.5 in |
| Height | 1 in |
| Weight | 8.01 oz |
