USB peripheral sharing switch - 4 x USB 3.2 Gen 1 - desktop, rack-mountable - DC power
| Main Specifications | |
|---|---|
| Product Description | ATEN US3344I - USB peripheral sharing switch - 4 ports - rack-mountable |
| Device Type | USB peripheral sharing switch - 4 ports |
| Enclosure Type | Rack-mountable |
| Subtype | USB |
| Ports | 4 x USB 3.2 Gen 1 |
| Features | Metal housing |
| Power | DC 9 - 24 V |
| Dimensions (WxDxH) | 7.9 in x 3.1 in x 1 in |
| Weight | 17.99 oz |
| General | |
| Device Type | USB peripheral sharing switch - 4 ports |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | USB |
| Ports | 4 x USB 3.2 Gen 1 |
| Features | Metal housing |
| Status Indicators | Select, serial |
| Expansion / Connectivity | |

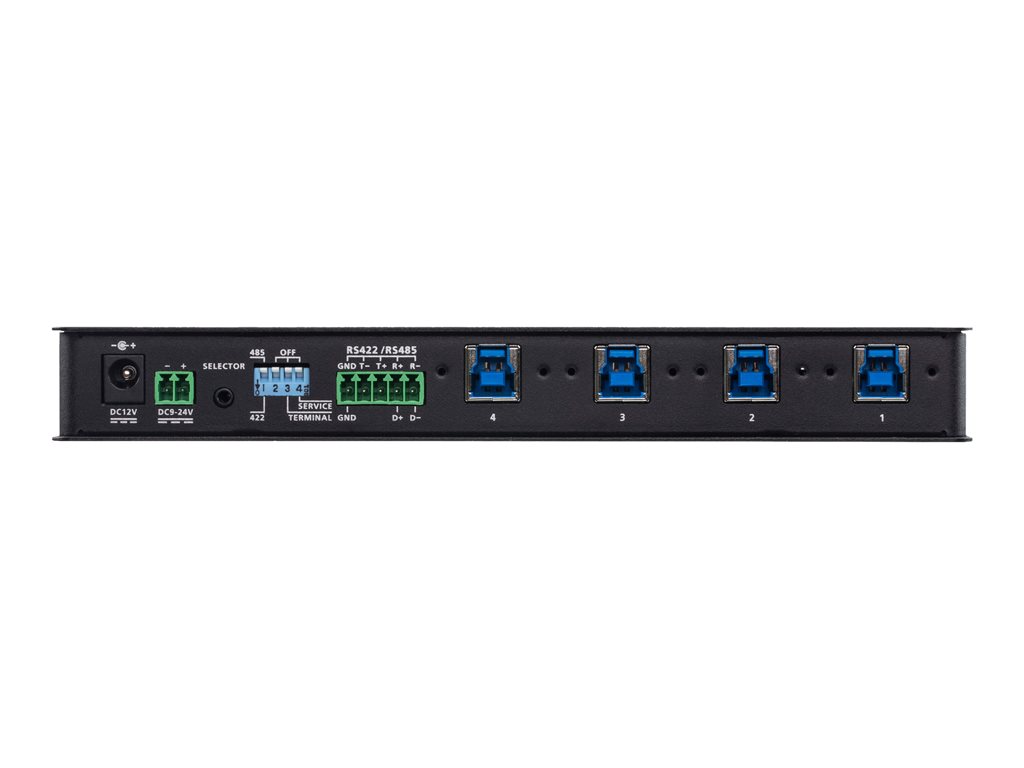

| Interfaces | 4 x USB 3.2 Gen 1 Type A ¦ 4 x USB 3.2 Gen 1 Type B ¦ 1 x serial (RS?485/RS-422) terminal block |
| Miscellaneous | |
| Included Accessories | Remote port selector switch, mounting kit, terminal block adapter set |
| Cables Included | 2 x USB 3.2 Gen 1 Type A to Type B cable - 4 ft ¦ 2 x USB 3.2 Gen 1 Type A to Type B cable - 6 ft |
| Power | |
| Voltage Required | DC 9 - 24 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 7.9 in |
| Depth | 3.1 in |
| Height | 1 in |
| Weight | 17.99 oz |
