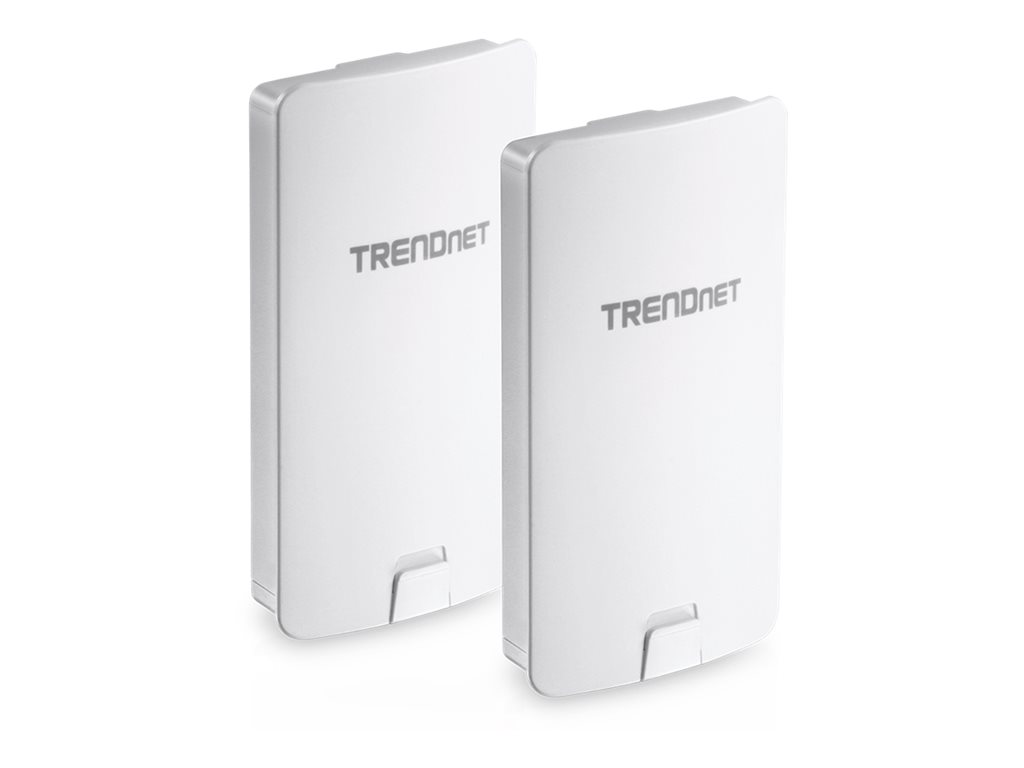

Wireless access point - 1GbE - Wi-Fi 5 - 2.4 GHz (1 band) / 5 GHz (2 bands) - wall / ceiling mountable - TAA Compliant (pack of 2)
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEW 840APBO2K - wireless access point - Wi-Fi 5 - TAA Compliant |
| Device Type | Wireless access point |
| Packaged Quantity | 2 (specifications are for single item) |
| Form Factor | Wall / ceiling mountable - outdoor |
| Data Link Protocol | Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz (1 band) / 5 GHz (2 bands) |
| Capacity | SSIDs per radio: 7 ¦ SSIDs total: 23 |
| Included Accessories | Mounting kit |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power | AC 120/230 V (50/60 Hz) |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 7.3 in x 1.4 in x 3.9 in |
| Weight | 9.45 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Packaged Quantity | 2 (specifications are for single item) |
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Width | 7.3 in |
| Depth | 1.4 in |
| Height | 3.9 in |
| Weight | 9.45 oz |
| Expansion / Connectivity | |

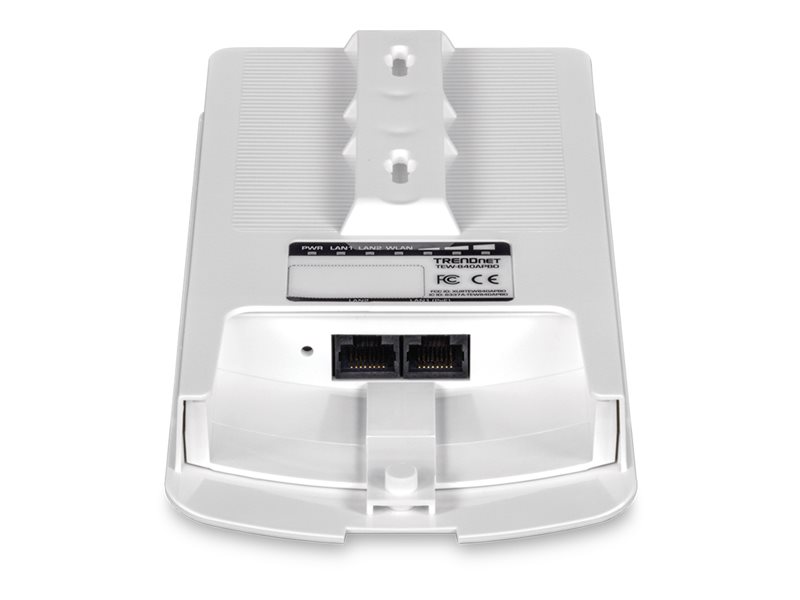

| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| Cables Included | 1 x network cable - 197 ft |
| Compliant Standards | IC, FCC, RoHS, WEEE, IP30 |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless, wired |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM |
| Data Link Protocol | Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz (1 band) / 5 GHz (2 bands) |
| Capacity | SSIDs per radio: 7 ¦ SSIDs total: 23 |
| Status Indicators | Power, LAN, 5 GHz, 2.4 GHz |
| Features | VLAN support, traffic shaping, MAC address filtering, IPv6 support, Wireless Distribution System (WDS) support, Access Point operational mode, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, event log, Quality of Service (QoS), Multiple SSID support, reset button, Captive Portal, MU-MIMO technology, cable management, band steering, WDS bridge, Tri-Band, WDS access point, bandwidth control per SSID, WDS repeater mode, PoE powered, bridge mode, Pre-Encrypted Wireless |
| Encryption Algorithm | WPA, WPA2-PSK, WEP, WPA3 |
| Authentication Method | RADIUS, Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac Wave 2 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 9.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 1 |
| Directivity | Directional |
| Gain Level | 14 dBi |
