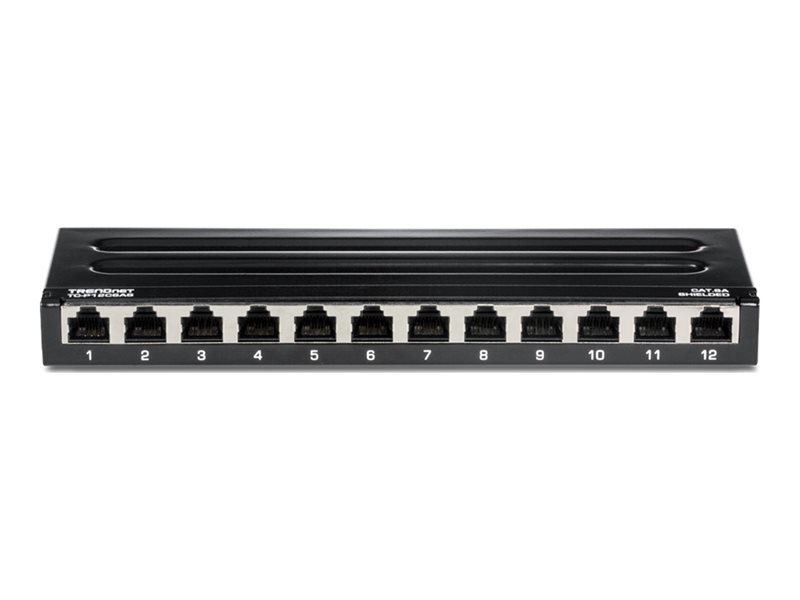

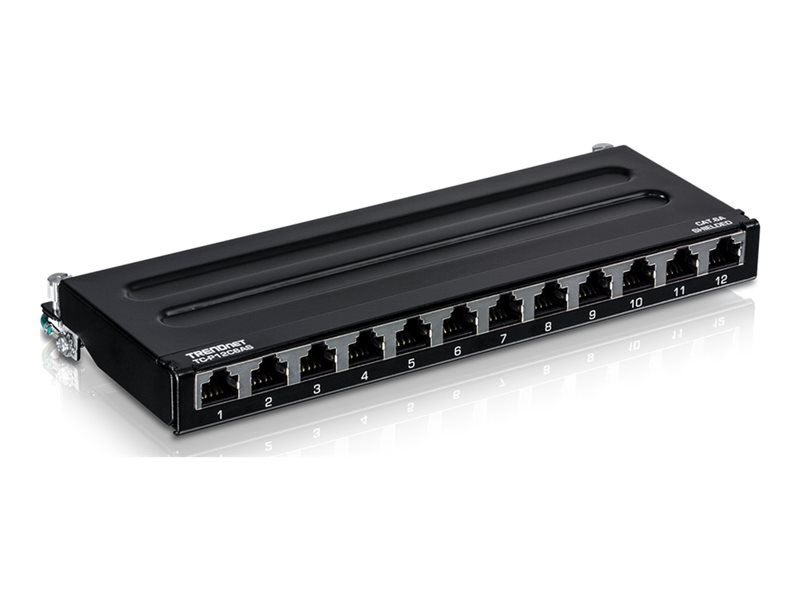

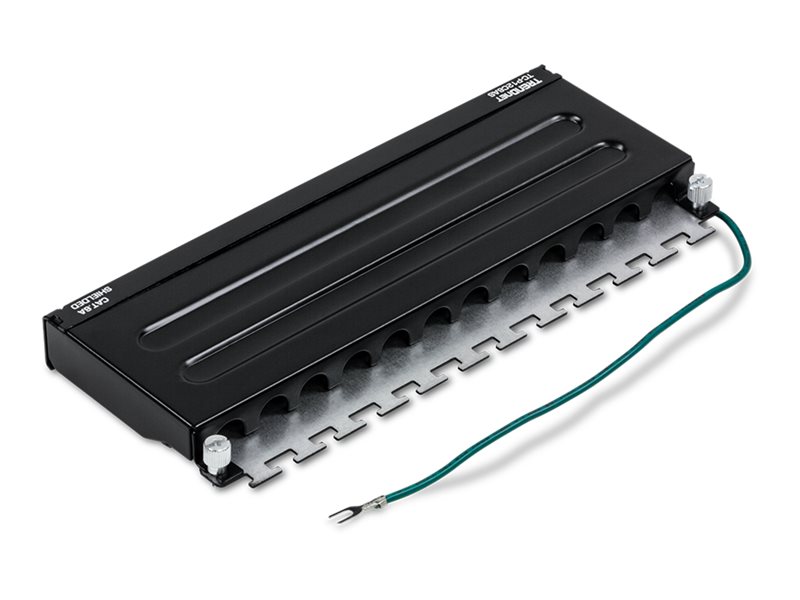

Patch panel - wall mountable - CAT 6a - STP - RJ-45 X 12 - 0.5U
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TC-P12C6AS - patch panel - 0.5U |
| Product Type | Patch panel - CAT 6a - RJ-45 X 12 |
| Placing / Mounting | Wall mountable |
| Package Content | Screws, cable ties |
| Dimensions (WxDxH) | 8.7 in x 3.8 in x 1 in |
| Weight | 17.85 oz |
| Product Material | SPCC steel |
| Port Qty | 12 ports |
| Height (Rack Units) | 0.5U |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Patch panel - CAT 6a |
| Placing / Mounting | Wall mountable |
| Package Content | Screws, cable ties |
| Product Material | SPCC steel |
| Height (Rack Units) | 0.5U |
| Width | 8.7 in |
| Depth | 3.8 in |
| Height | 1 in |
| Weight | 17.85 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Integrated cable management, 10GbE compatible, 90° angled, metal housing |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Cabling & Wiring | |
| Port Qty | 12 ports |

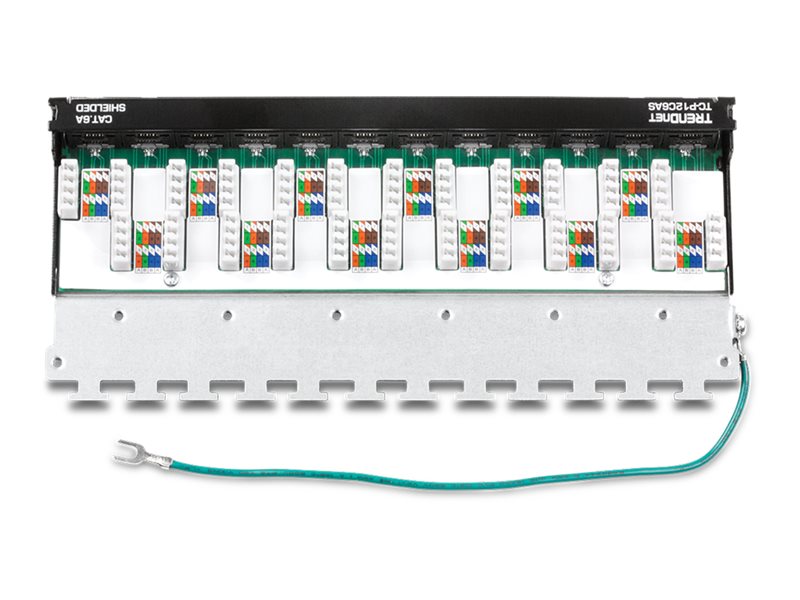

| Termination Type | 110 type termination, IDC |
| Technology | Shielded twisted pair (STP) |
| Features | Gold-plated connectors, color-coded |
| Connector Provided | 12 x RJ-45 female |
