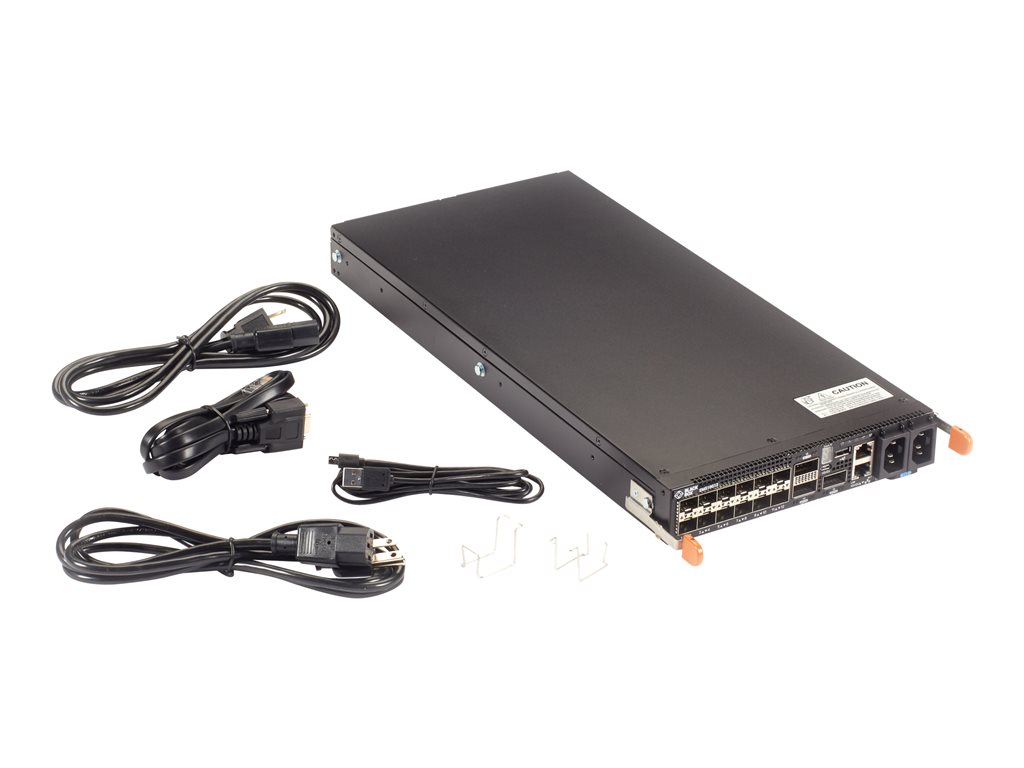

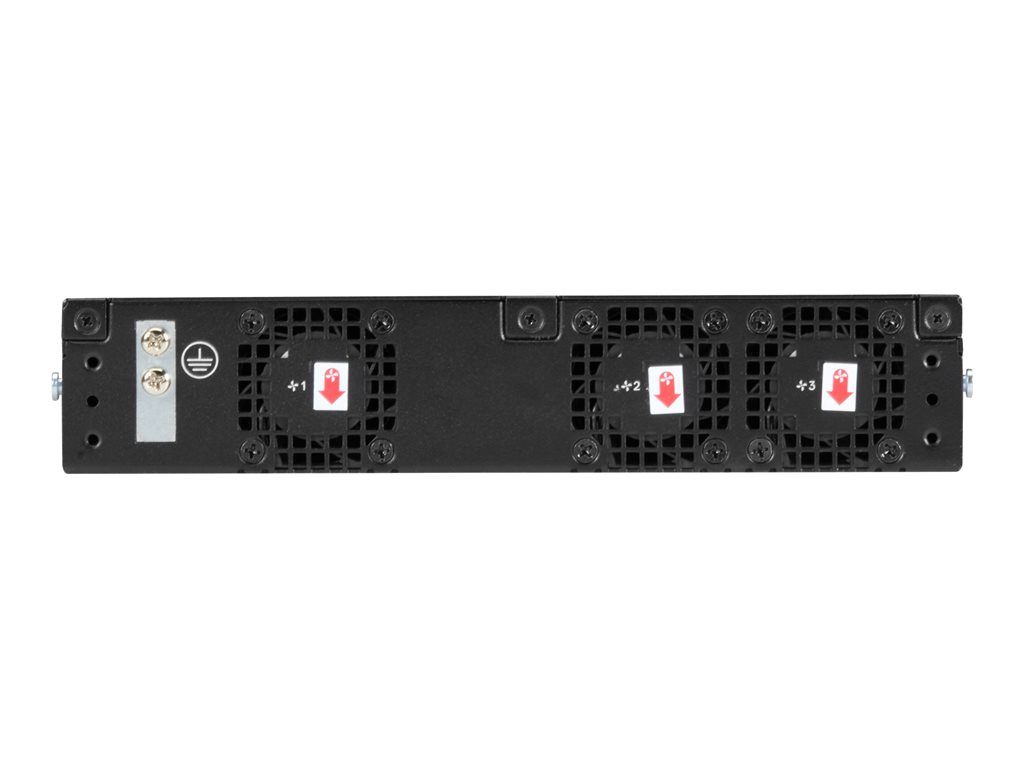

Switch - 12 x 10 Gigabit SFP+ + 3 x 100 Gigabit QSFP28 - rack-mountable - AC 100 - 240 V
| Main Specifications | |
|---|---|
| Product Description | Black Box - switch - 12 ports - rack-mountable |
| Device Type | Switch - 12 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 10 Gigabit SFP+ + 3 x 100 Gigabit QSFP28 |
| Performance | Switching capacity: 960 Gbps ¦ Forwarding capacity: 720 Mpps |
| Capacity | ARP entries: 200000 ¦ IPv4 routes: 200000 ¦ IPv6 hosts: 64000 ¦ IPv6 routes: 64000 ¦ Multicast hosts: 8000 ¦ Links per group: 32 ¦ Groups per stack: 128 ¦ VLANs supported: 4000 ¦ MSTP instances: 64 |
| MAC Address Table Size | 272000 entries |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, TFTP, SSH-2, SCP |
| Features | Flow control, VLAN support, Syslog support, port mirroring, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Jumbo Frames support, Per-VLAN Spanning Tree Plus (PVST+), LLDP support, Link Aggregation Control Protocol (LACP), redundant hot swappable fans, 12MB packet buffer, Generic VLAN Registration Protocol (GVRP), 802.1x authentication, 4 fans, VLAN Double Tagging (Q-in-Q), LLDP-MED, IP Security (IPSec) support, VLAN Tagging |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| Power | AC 100 - 240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 8.2 in x 17.7 in x 1.6 in |
| Weight | 8.38 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Switch - 12 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 10 Gigabit SFP+ + 3 x 100 Gigabit QSFP28 |
| Performance | Switching capacity: 960 Gbps ¦ Forwarding capacity: 720 Mpps |
| Capacity | ARP entries: 200000 ¦ IPv4 routes: 200000 ¦ IPv6 hosts: 64000 ¦ IPv6 routes: 64000 ¦ Multicast hosts: 8000 ¦ Links per group: 32 ¦ Groups per stack: 128 ¦ VLANs supported: 4000 ¦ MSTP instances: 64 |
| MAC Address Table Size | 272000 entries |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, TFTP, SSH-2, SCP |
| Encryption Algorithm | ESP |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2) |
| Features | Flow control, VLAN support, Syslog support, port mirroring, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Jumbo Frames support, Per-VLAN Spanning Tree Plus (PVST+), LLDP support, Link Aggregation Control Protocol (LACP), redundant hot swappable fans, 12MB packet buffer, Generic VLAN Registration Protocol (GVRP), 802.1x authentication, 4 fans, VLAN Double Tagging (Q-in-Q), LLDP-MED, IP Security (IPSec) support, VLAN Tagging |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| RAM | 4 GB |
| Expansion / Connectivity | |
| Interfaces | 12 x 10Gbit LAN SFP+ ¦ 3 x 100Gbit LAN QSFP28 ¦ 1 x management (RS-232) RJ-45 console |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | CSA, RoHS, EN 60825-1, ICES-003 issue 4 Class A, VCCI Class A, FDA 21CFR1040.10, FDA 21CFR1040.11, AS/NZS CISPR 32 Class A, EN 55032 Class A, VCCI V-3/2009 Class A, FCC CFR47 Part 15 B 2009 Class A, EN 60959-1 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100 - 240 V (50/60 Hz) |
| Power Consumption Operational | 180 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.2 in |
| Depth | 17.7 in |
| Height | 1.6 in |
| Weight | 8.38 lbs |
