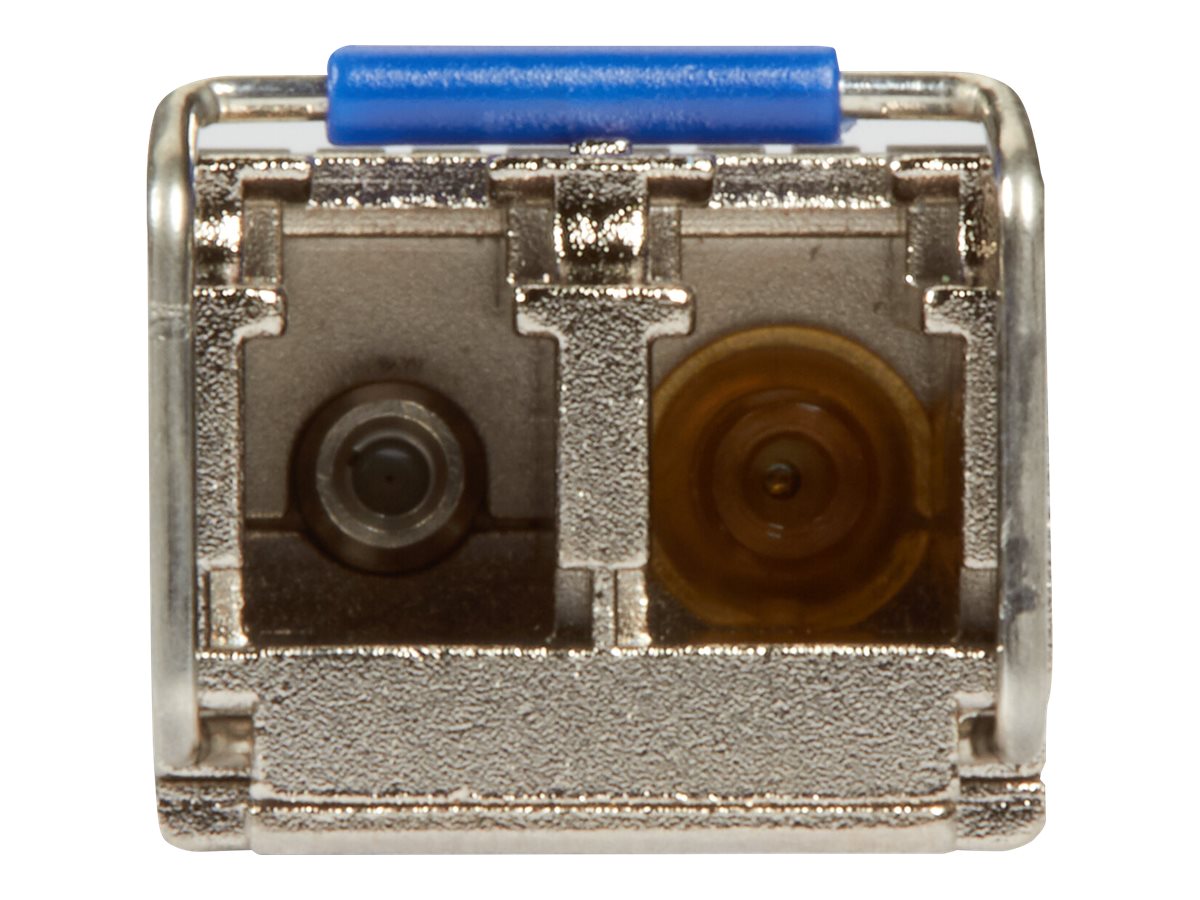

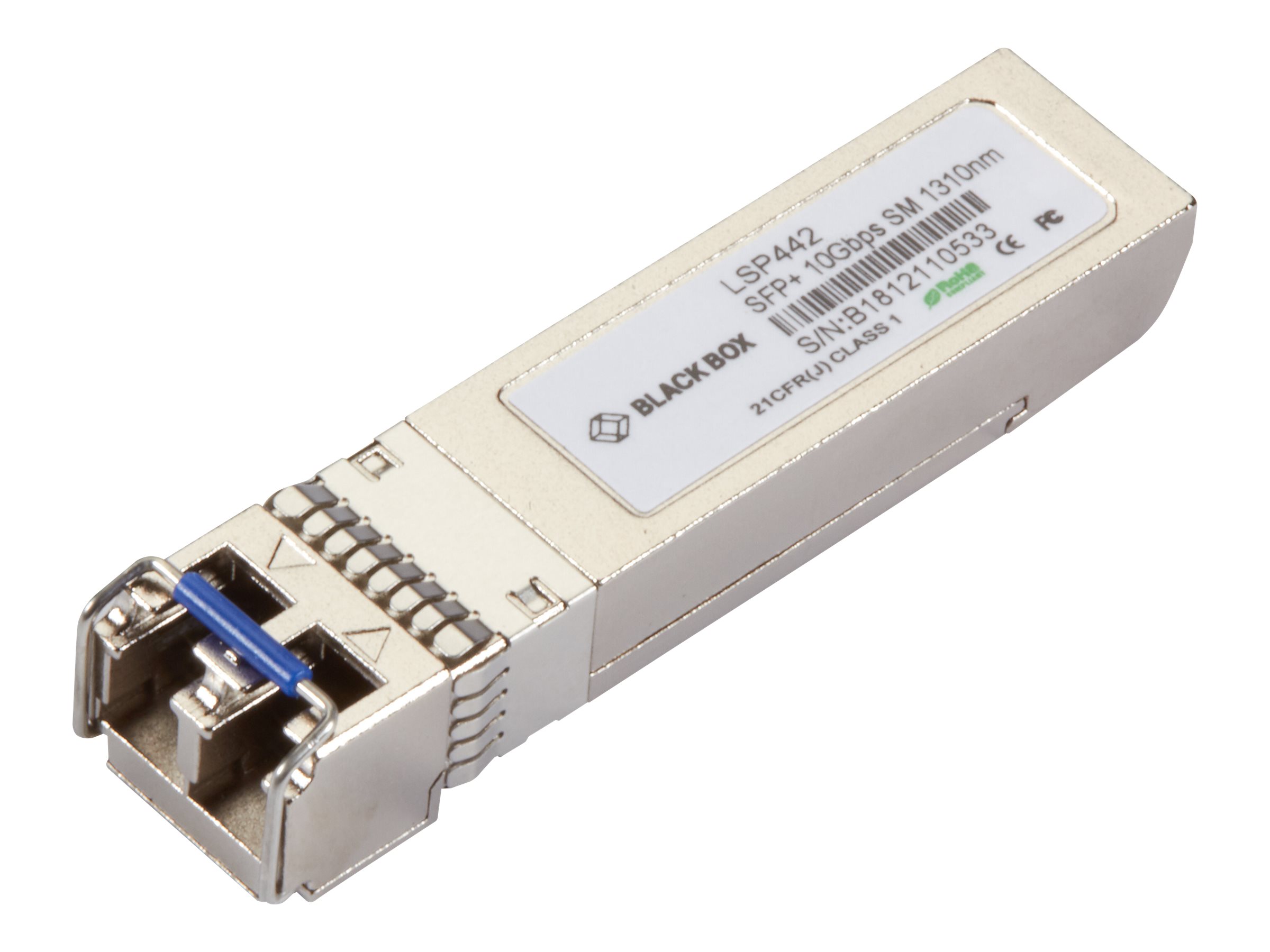

SFP (mini-GBIC) transceiver module - LC single-mode - up to 12.4 miles - 1310 nm - for P/N: EMD2000SE-DP-T
| Main Specifications | |
|---|---|
| Product Description | Black Box - SFP (mini-GBIC) transceiver module |
| Device Type | SFP (mini-GBIC) transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 12.4 miles |
| Dimensions (WxDxH) | 0.5 in x 2.2 in x 0.3 in |
| Weight | 0.56 oz |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: EMD2000SE-DP-T |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, EMI, IEC 60825, MSA SFF-8472 |
| Networking | |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 12.4 miles |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.2 in |
| Height | 0.3 in |
| Weight | 0.56 oz |
| Compatibility Information | |
| Designed For | P/N: EMD2000SE-DP-T |
