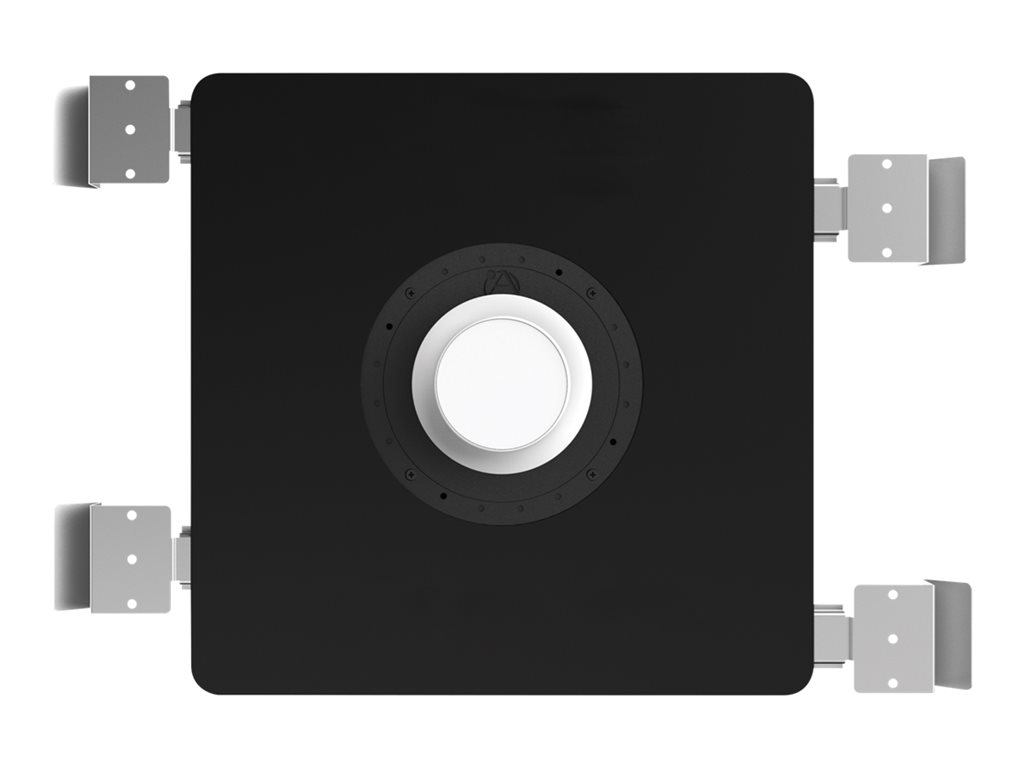

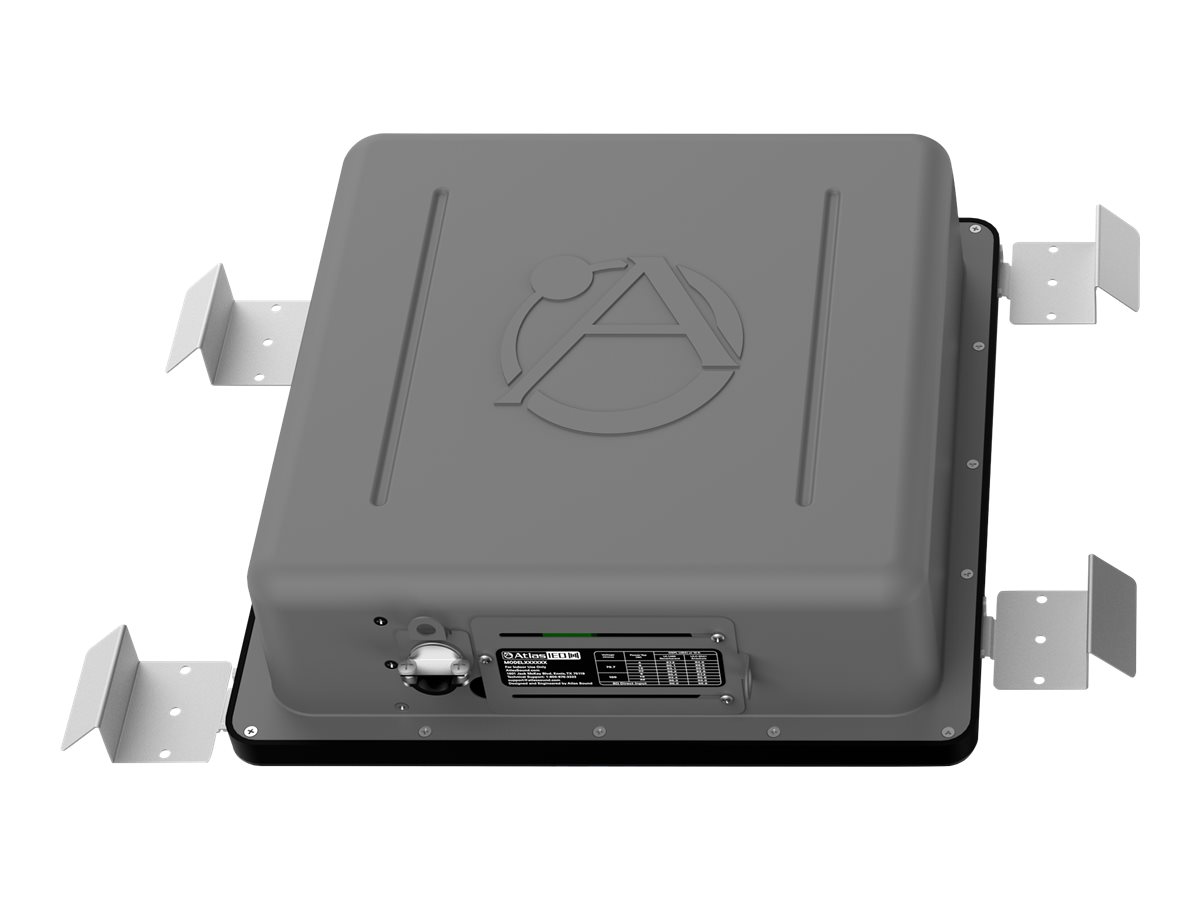

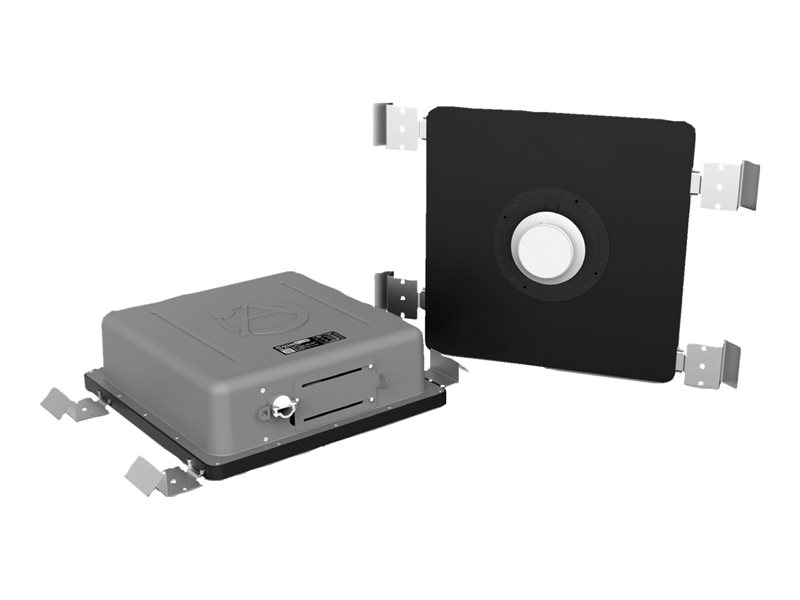

Speaker - for PA system - 75 Watt - 2-way - coaxial - gray
| Main Specifications | |
|---|---|
| Product Description | Atlas Sound SHS Series SHS-6T2 - speaker - for PA system |
| Product Type | Speaker - for PA system |
| Enclosure Design | Sealed |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 75 watt |
| Recommended Amplifier Power | 120 watt |
| Frequency Response | 100 - 15000 Hz |
| Integrated Transformer | 70.7V/100V or 4 Ohm operation |
| Color | Gray |
| Dimensions (WxDxH) | 12.7 in x 12.7 in x 3.9 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Speaker - for PA system |
| Enclosure Color | Gray |
| Enclosure Design | Sealed |
| Enclosure Material | Steel, ABS plastic |
| Design Features | Paintable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | UL 1480, UL 2043, CSA 22.2 No. 205, IP20 |
| Dimensions & Weight | |
| Width | 12.7 in |
| Depth | 12.7 in |
| Height | 3.9 in |
| Speaker System | |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 75 watt |
| Frequency Response | 100 - 15000 Hz |
| Recommended Amplifier Power | 120 watt |
| Max Output Level (Max SPL) | 103 dB |
| Sensitivity | 86 dB |
| Crossover Frequency | 3000Hz |
| Integrated Transformer | 70.7V/100V or 4 Ohm operation |
| Coverage | 130° x 130° |
| Recommended Placing | In-ceiling mounted |
| Speaker System Details | |
| Driver Details | Speaker: woofer driver - 4.5" ¦ Speaker: tweeter driver |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.5 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 15.7 in |
| Cutout & Mounting Dimensions | |
| Diameter | 2.7 in |
