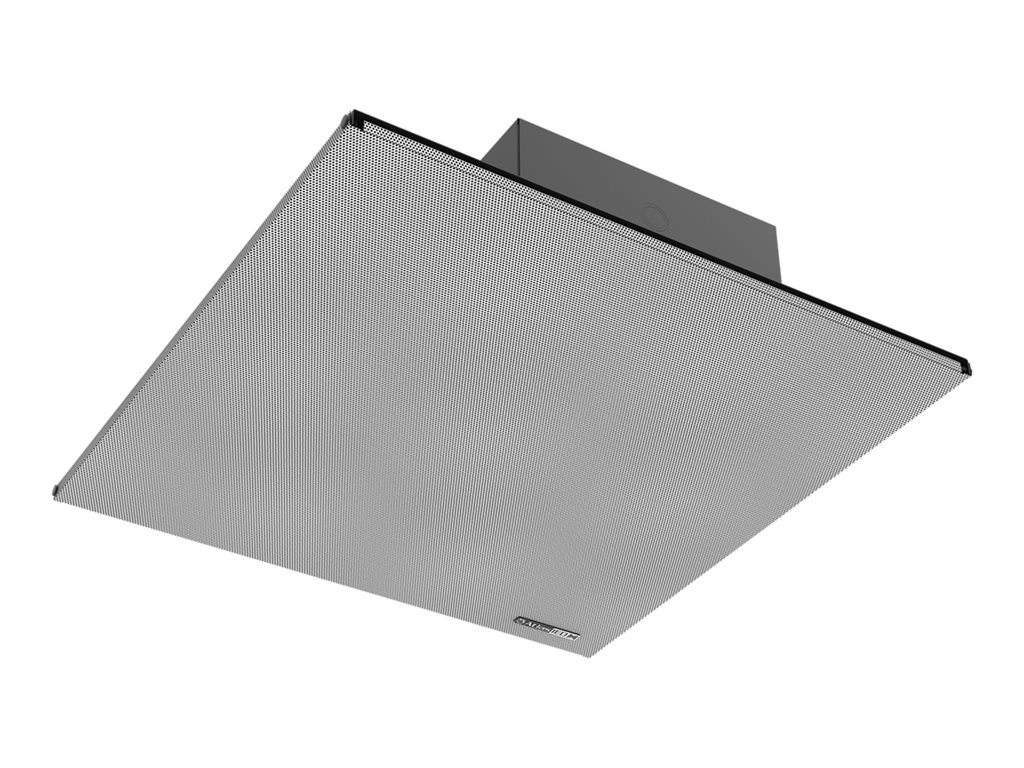

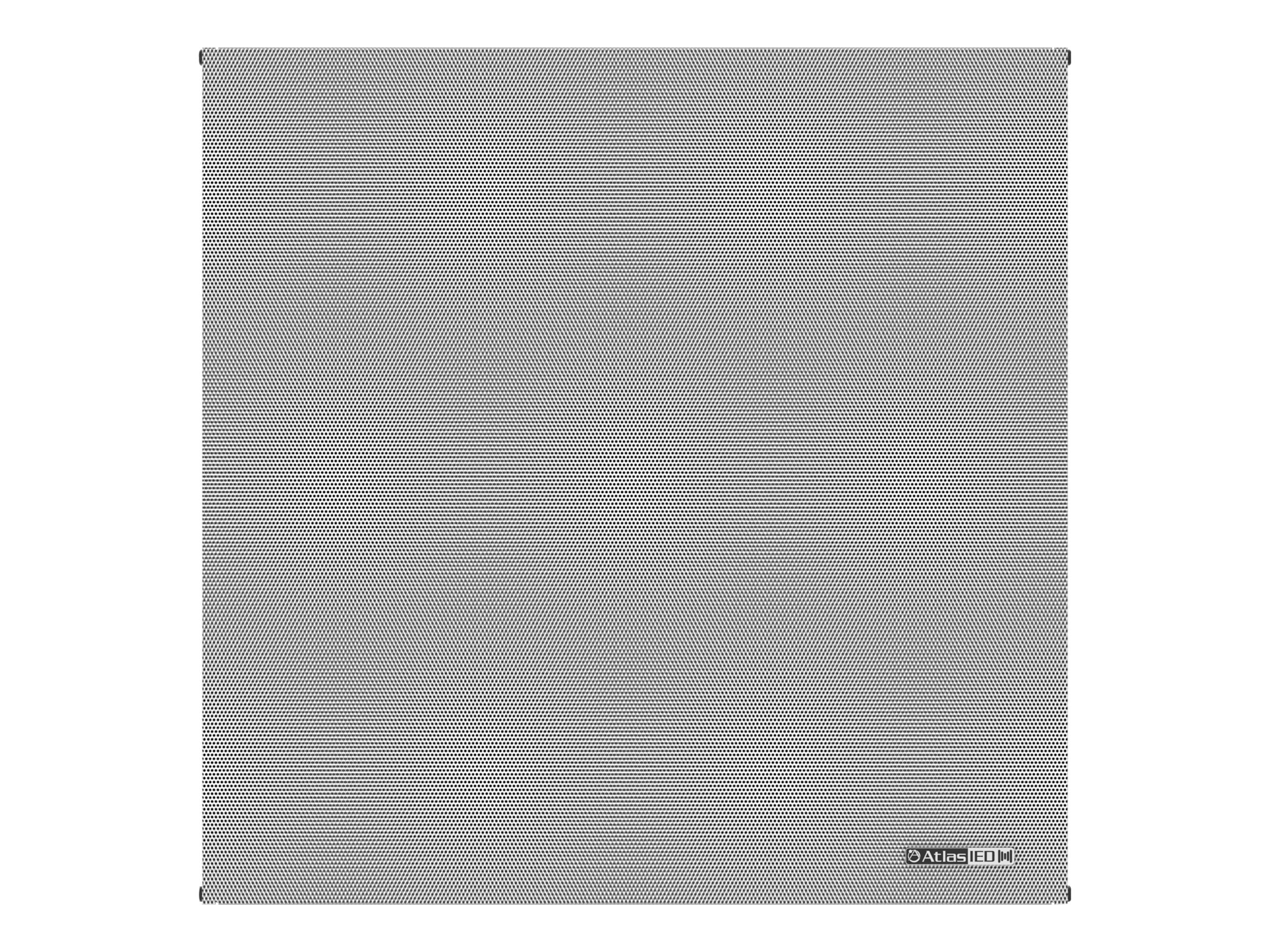

IP speaker - Ethernet, Fast Ethernet, PoE, PoE-Plus - 15 Watt - 2-way - coaxial - white (grille color - white)
| Main Specifications | |
|---|---|
| Product Description | Atlas Sound IP-22SYSM - IP speaker |
| Product Type | IP speaker |
| Speaker Type | Coaxial - 2-way - active |
| Continuous Power | 15 Watt |
| Peak Power | 25 Watt |
| Frequency Response | 86 - 15500 Hz |
| Amplifier | Integrated |
| Interfaces | Ethernet, Fast Ethernet, PoE, PoE-Plus |
| Color | White |
| Dimensions (WxDxH) | 24.1 in x 5.1 in x 23.7 in |
| Weight | 15.12 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | IP speaker |
| Microphone | Yes |
| Enclosure Color | White |
| Grille Color | White |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | UL 2043, CSA 22.2, IEC 62368-1, UL 62368-1 |
| Power | |
| Power Source | Power over Ethernet (PoE) |
| Connections | |
| Connector Type | Balanced audio input (screw-type) ¦ Balanced audio output (screw-type) ¦ LAN (RJ-45) |
| Dimensions & Weight | |
| Width | 24.1 in |
| Depth | 5.1 in |
| Height | 23.7 in |
| Weight | 15.12 lbs |
| Speaker System | |
| Speaker Type | Coaxial - 2-way - active |
| Continuous Power | 15 Watt |
| Peak Power | 25 Watt |
| Frequency Response | 86 - 15500 Hz |
| Total Harmonic Distortion | <0.2% |
| Max Output Level (Max SPL) | 110 dB |
| Crossover Frequency | 2800Hz |
| Amplifier | Integrated |
| Coverage | 105° conical |
| Interfaces | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus) |
| VoIP Protocols | SIP |
| Voice Codecs | G.722, G.711u, G.711a |
| Network Protocols | TFTP, HTTP, NTP |
| Compatible Software | SA-Announce 9.0.18 or higher, InformaCast 8.0 or higher, GCK 3.0 or higher, InformaCast Fusion 3.0 or higher |
| Recommended Placing | In-ceiling mounted |
| Speaker System Details | |
| Driver Details | Speaker: woofer driver - 8" - treated industrial paper ¦ Speaker: tweeter driver - 1" |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 20.9 lbs |
