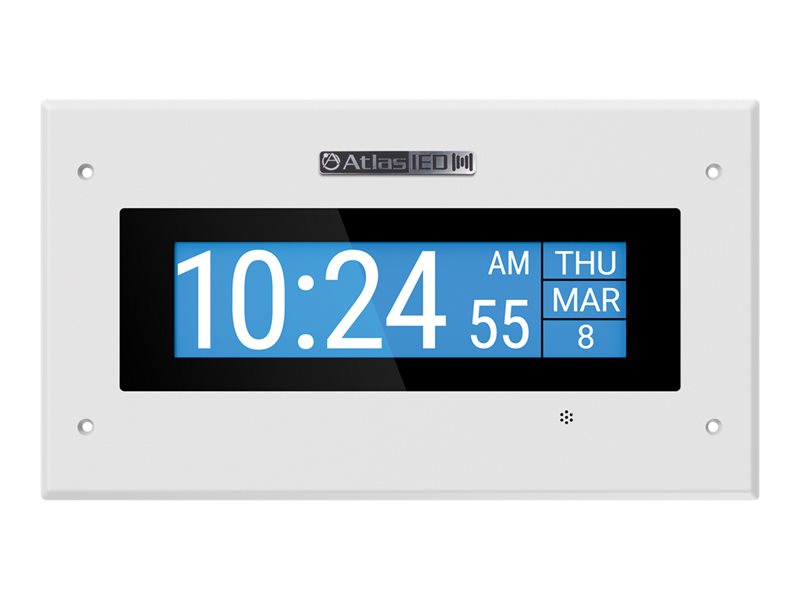

IP speaker - Ethernet, Fast Ethernet, PoE-Plus, PoE - white (grille color - white)
| Main Specifications | |
|---|---|
| Product Description | AtlasIED IPX Series IP-DM - IP speaker |
| Product Type | IP speaker |
| Features | Text display, clock |
| Peak Power | 25 watt |
| Amplifier | Integrated |
| Display | LCD |
| Interfaces | Ethernet, Fast Ethernet, PoE-Plus, PoE |
| Audio Formats | G.722, G.711a, G.711u |
| Color | White |
| Dimensions (WxDxH) | 7.8 in x 1.7 in x 13.9 in |
| Weight | 2.51 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | IP speaker |
| Features | Text display, clock |
| Microphone | Yes |
| Enclosure Color | White |
| Grille Color | White |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC, IEC 62368-1, IEEE 802.3at, CAN/CSA-C22.2 No. 62368-1, IEEE 802.1Q, IEC 62368-1 CB Scheme |
| Power | |
| Power Source | Power over Ethernet (PoE) |
| Connections | |
| Connector Type | Balanced audio input ¦ Balanced audio output ¦ LAN (RJ-45) |
| Dimensions & Weight | |
| Width | 7.8 in |
| Depth | 1.7 in |
| Height | 13.9 in |
| Weight | 2.51 lbs |
| Speaker System | |
| Peak Power | 25 watt |
| Amplifier | Integrated |
| Interfaces | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.3af (Power over Ethernet) |
| VoIP Protocols | SIP |
| Voice Codecs | G.722, G.711u, G.711a |
| Network Protocols | TFTP, HTTP, NTP |
| Compatible Software | SA-Announce 9.0.18 or higher, InformaCast 8.0 or higher, GCK 3.0 or higher, InformaCast Fusion 3.0 or higher |
| Recommended Placing | Wall-mountable, indoor |
| Audio Formats | G.722, G.711a, G.711u |
| Display | LCD |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10 in |
| Shipping Depth | 6 in |
| Shipping Height | 15.9 in |
| Shipping Weight | 3.44 lbs |
