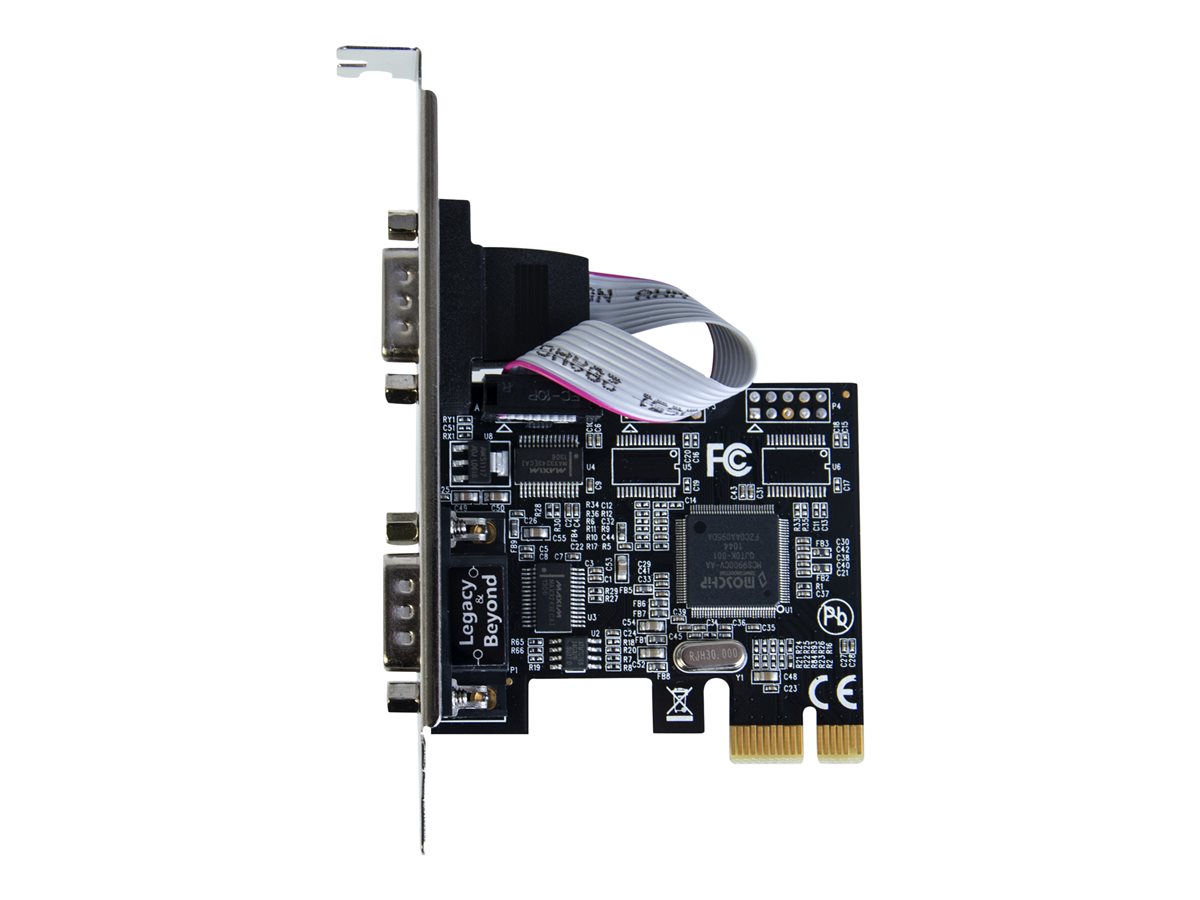

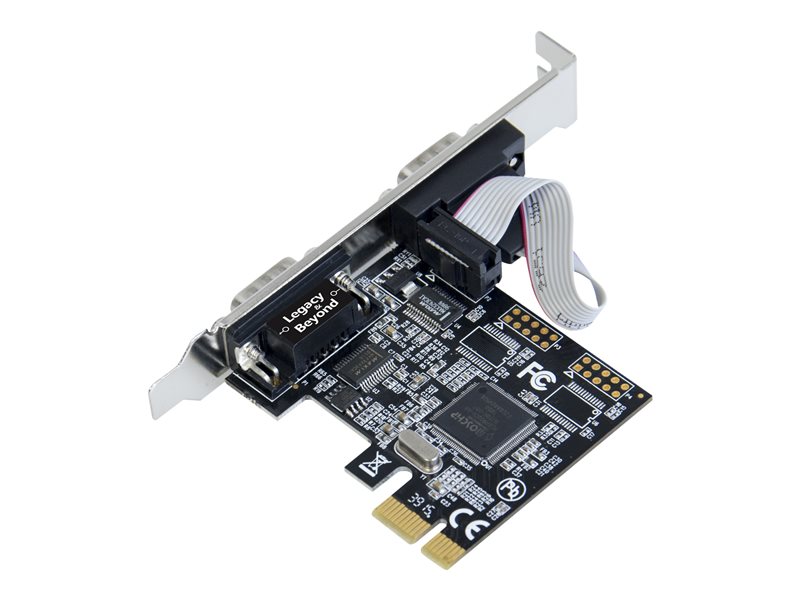

Serial adapter - PCIe 1.1 - RS-232 x 2 - black
| Main Specifications | |
|---|---|
| Product Description | SIIG LB-S00014-S1 - serial adapter - PCIe 1.1 - RS-232 x 2 |
| Device Type | Serial adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 1.1 x1 |
| PCI Specification Revision | PCIe 1.1 |
| Ports | RS-232 x 2 |
| Dimensions (WxDxH) | 0.8 in x 4.7 in x 3.1 in |
| Weight | 1.6 oz |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 115.2 Kbps |
| Processor | 1 x ASIX / MosChip MCS9900CV-AA |
| Color | Black |
| System Requirements | Linux Kernel 2.6 or later, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016 (32/64 bits), Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits), Windows 10 (32/64 bits), Windows 8.x (32/64 bits) |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Serial adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 1.1 x1 |
| PCI Specification Revision | PCIe 1.1 |
| Expansion / Connectivity | |
| Interfaces | 2 x RS-232 - 9 pin D-Sub (DB-9) - male |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Color | Black |
| Networking | |
| Ports | RS-232 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 115.2 Kbps |
| Features | 256-byte FIFO |
| Software / System Requirements | |
| Software Included | Driver |
| OS Required | Linux Kernel 2.6 or later, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016 (32/64 bits), Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits), Windows 10 (32/64 bits), Windows 8.x (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory | |
| Processor | 1 x ASIX / MosChip MCS9900CV-AA |
| Dimensions & Weight | |
| Width | 0.8 in |
| Depth | 4.7 in |
| Height | 3.1 in |
| Weight | 1.6 oz |
