Expansion module - DisplayPort x 4 - for VanCryst VM1600A, VM3200, VM3250
| Main Specifications | |
|---|---|

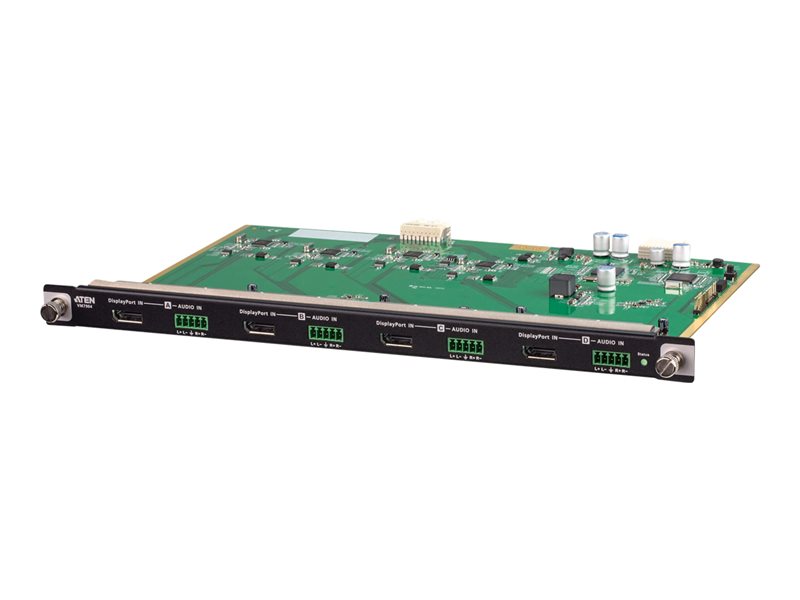

| Product Description | ATEN VM7904 4-Port 4K DisplayPort Input Board - expansion module - DisplayPort x 4 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | DisplayPort x 4 |
| Dimensions (WxDxH) | 13.9 in x 9.4 in x 0.9 in |
| Weight | 19.4 oz |
| Data Link Protocol | DisplayPort |
| Performance | Maximum data rate: 2.7 Gbps |
| Manufacturer Warranty | 3-year warranty |
| Designed For | VanCryst VM1600A, VM3200, VM3250 |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 4 x DisplayPort input ¦ 4 x audio line-in - 5 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Networking | |
| Ports | DisplayPort x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | DisplayPort |
| Performance | Maximum data rate: 2.7 Gbps |
| Features | HDCP compliant, 4K resolution support |
| Power | |
| Power Consumption Operational | 7.18 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 13.9 in |
| Depth | 9.4 in |
| Height | 0.9 in |
| Weight | 19.4 oz |
| Compatibility Information | |
| Designed For | ATEN VanCryst VM1600A, VM3200, VM3250 |
