Switch - L2+ - managed - 4 x 10GBase-T + 16 x 10 Gigabit SFP+ + 8 x combo 10 Gigabit SFP+ - rack-mountable - DC
| Main Specifications | |
|---|---|

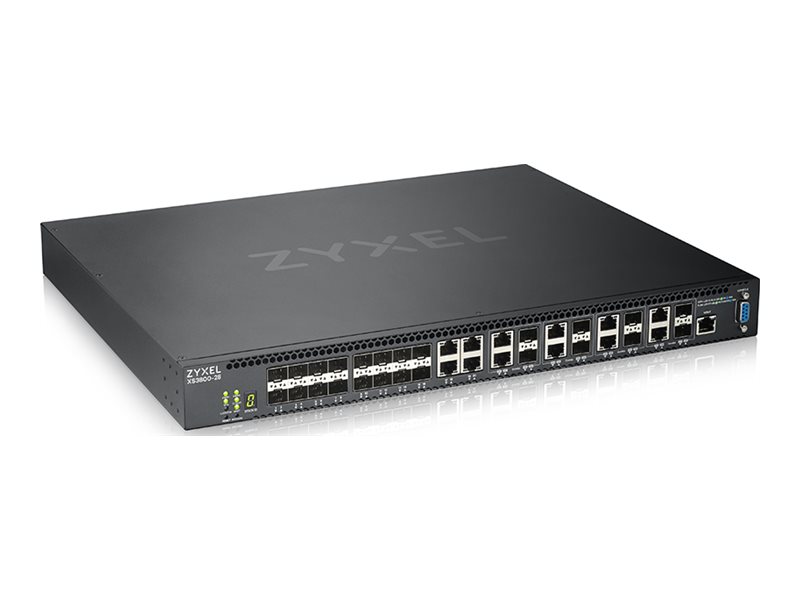

| Product Description | Zyxel XS3800-28 - switch - 28 ports - managed - rack-mountable |
| Device Type | Switch - 28 ports - L2+ - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 4 x 10GBase-T + 16 x 10 Gigabit SFP+ + 8 x combo 10 Gigabit SFP+ |
| Performance | Switching capacity: 560 Gbps ¦ Forwarding rate: 416 Mpps |
| Capacity | Routing table entries: 1000 ¦ IPv4 forwarding table entries: 4000 ¦ IPv6 forwarding table entries: 2000 ¦ IP interfaces: 128 ¦ Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues per port: 8 |
| MAC Address Table Size | 32K entries |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, NTP, ICMP |
| Features | Flow control, auto-negotiation, Syslog support, store and forward, IP address filtering, WFQ, ZyXEL iStacking Technology, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, ECMP, Port Security, MVR, GVRP, SPQ, NDP, port isolation, CoS, Loopback, 4MB packet buffer, DSCP support, ErrDisable Recovery, ZON, IGMP throttling, Protocol-based VLANs support, Storm Control, CPU protection, ARP inspection, policy based rate limiting, BPDU, dual image support, DLF, MAC address authentication, VLAN Double Tagging (Q-in-Q), Loop Guard, LLDP-MED, Private VLAN, Guest VLAN, EEE, WRR, port-based VLAN, VLAN trunking, MRSTP |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| Power | DC |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 14.2 in x 1.7 in |
| Weight | 10.6 lbs |
| General | |
| Device Type | Switch - 28 ports - L2+ - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 4 x 10GBase-T + 16 x 10 Gigabit SFP+ + 8 x combo 10 Gigabit SFP+ |
| Performance | Switching capacity: 560 Gbps ¦ Forwarding rate: 416 Mpps |
| Capacity | Routing table entries: 1000 ¦ IPv4 forwarding table entries: 4000 ¦ IPv6 forwarding table entries: 2000 ¦ IP interfaces: 128 ¦ Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues per port: 8 |
| MAC Address Table Size | 32K entries |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, NTP, ICMP |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, auto-negotiation, Syslog support, store and forward, IP address filtering, WFQ, ZyXEL iStacking Technology, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, ECMP, Port Security, MVR, GVRP, SPQ, NDP, port isolation, CoS, Loopback, 4MB packet buffer, DSCP support, ErrDisable Recovery, ZON, IGMP throttling, Protocol-based VLANs support, Storm Control, CPU protection, ARP inspection, policy based rate limiting, BPDU, dual image support, DLF, MAC address authentication, VLAN Double Tagging (Q-in-Q), Loop Guard, LLDP-MED, Private VLAN, Guest VLAN, EEE, WRR, port-based VLAN, VLAN trunking, MRSTP |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| RAM | 8 GB |
| Flash Memory | 64 MB |
| Status Indicators | Port status, system, link/activity |
| Expansion / Connectivity | |
| Interfaces | 24 x 10Gbit LAN SFP+ ¦ 12 x 10GBase-T RJ-45 ¦ 1 x console DB-9 ¦ 1 x management RJ-45 |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 656,274.78 hours |
| Compliant Standards | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | DC |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 14.2 in |
| Height | 1.7 in |
| Weight | 10.6 lbs |
