Video/audio switch - 4 x HDMI - desktop
| Main Specifications | |
|---|---|

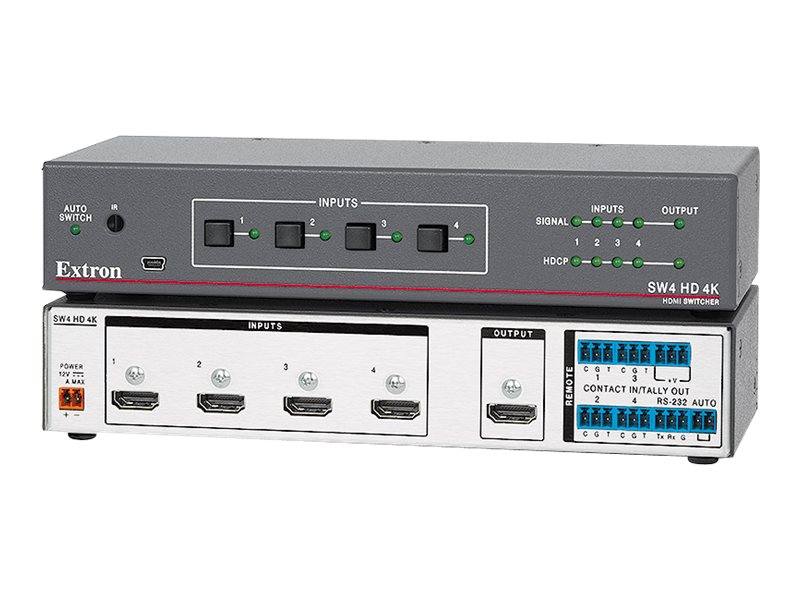

| Product Description | Extron SW4 HD 4K - video/audio switch - 4 ports |
| Device Type | Video/audio switch - 4 ports |
| Enclosure Type | 1U |
| Subtype | HDMI |
| Ports | 4 x HDMI |
| Features | HDCP compliant |
| Compliant Standards | HDCP 1.4 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.7 in x 3 in x 1.7 in |
| Weight | 10.58 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio switch - 4 ports |
| Enclosure Type | Desktop 1U |
| Subtype | HDMI |
| Ports | 4 x HDMI |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Video Bandwidth | 300 MHz |
| Features | HDCP compliant |
| Compliant Standards | HDCP 1.4 |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input ¦ 1 x HDMI output ¦ 1 x serial (RS-232) 5 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Rack Mounting Kit | Optional |
| Compliant Standards | cUL, UL, C-Tick, FCC Class A certified, ICES, VCCI, RoHS, WEEE |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 8 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 3 in |
| Height | 1.7 in |
| Weight | 10.58 oz |
