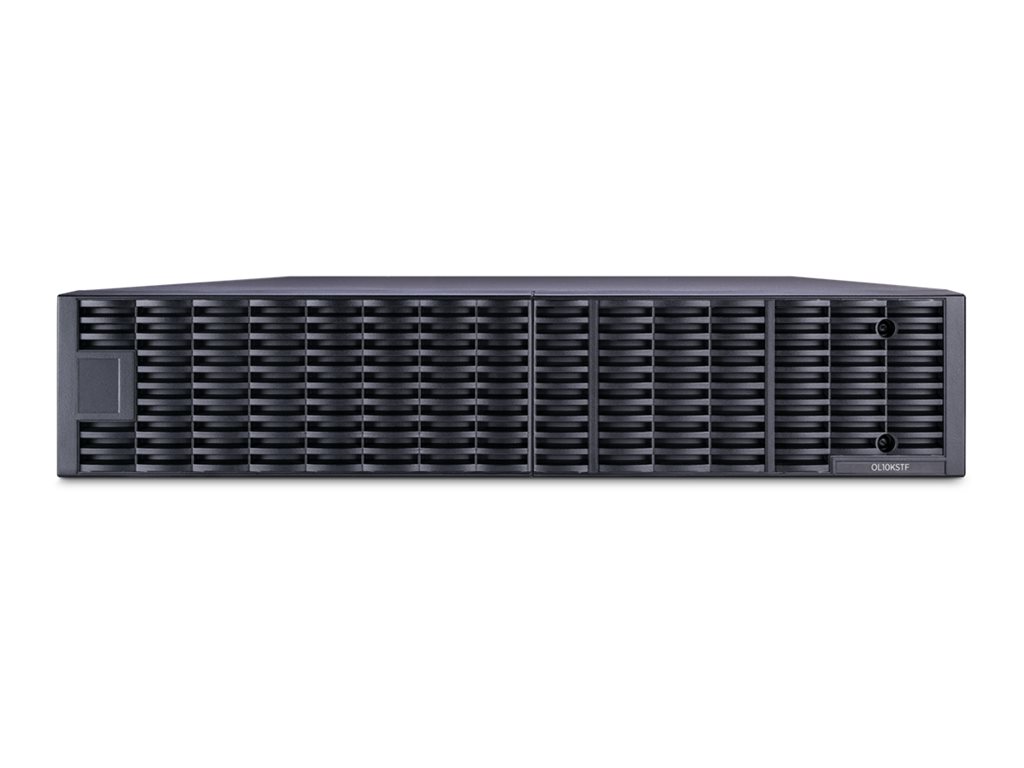

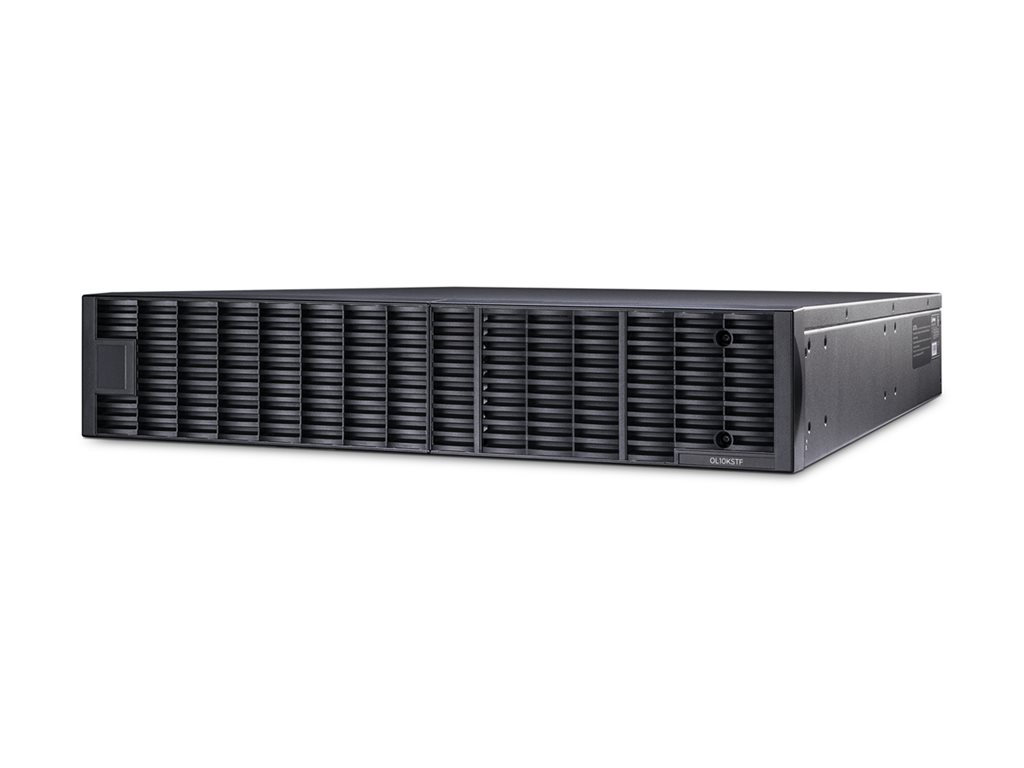

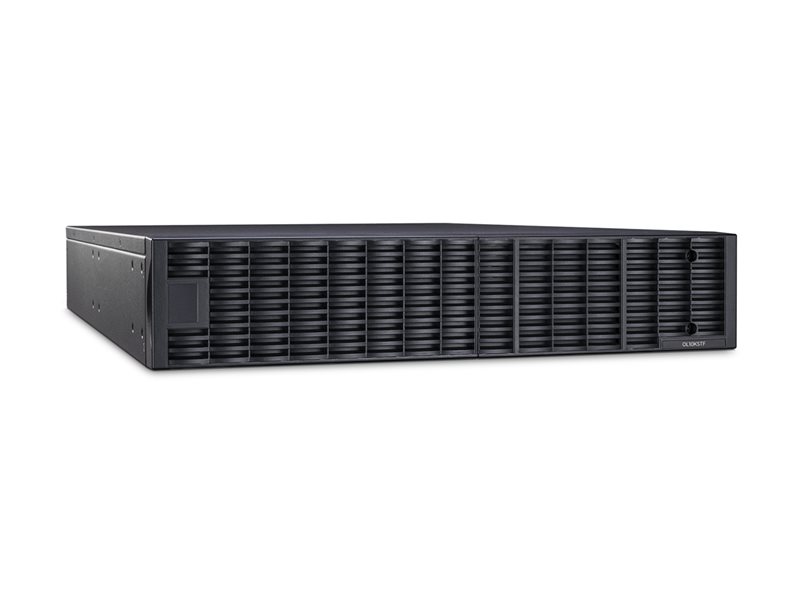

Transformer (rack-mountable / external) - AC 208 V - 10000 Watt - 10000 VA - output connectors: 7 - 2U
| Main Specifications | |
|---|---|
| Product Description | CyberPower Smart App Online OL10KSTF - transformer - 10000 watt - 10000 VA |
| Device Type | Transformer - rack-mountable / external |
| Rack Size | 2U |
| Weight | 119.93 lbs |
| Input Voltage | AC 208 V |
| Output Voltage | AC 120/208 V |
| Power Capacity | 10000 watt / 10000 VA |
| Input Connectors | 1 x hardwire |

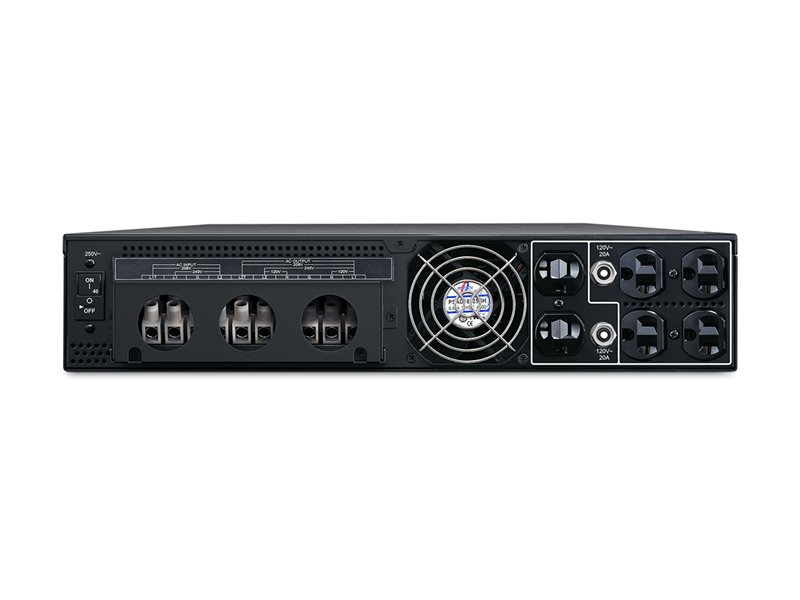

| Output connectors | 6 x power NEMA 5-20R ¦ 1 x hardwire |
| Included Accessories | Tower stand |
| Dimensions (WxDxH) | 17 in x 23.6 in x 3.5 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Transformer - rack-mountable / external |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Tower stand |
| Cables Included | Power cable 3 ft |
| Rack Mounting Kit | Included |
| Features | Overheat protection, overload protection, Step-Down Transformer |
| Compliant Standards | RoHS, UL 1778 5th edition, CSA C22.2 No.107.3-05 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Sound Emission | 58 dBA |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x hardwire |
| Power Output Connectors Details | 6 x power NEMA 5-20R ¦ 1 x hardwire |
| Output Voltage | AC 120/208 V 50/60 Hz |
| Power Capacity | 10000 watt / 10000 VA |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 23.6 in |
| Height | 3.5 in |
| Weight | 119.93 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.6 in |
| Shipping Depth | 35.4 in |
| Shipping Height | 13 in |
| Shipping Weight | 164.02 lbs |
