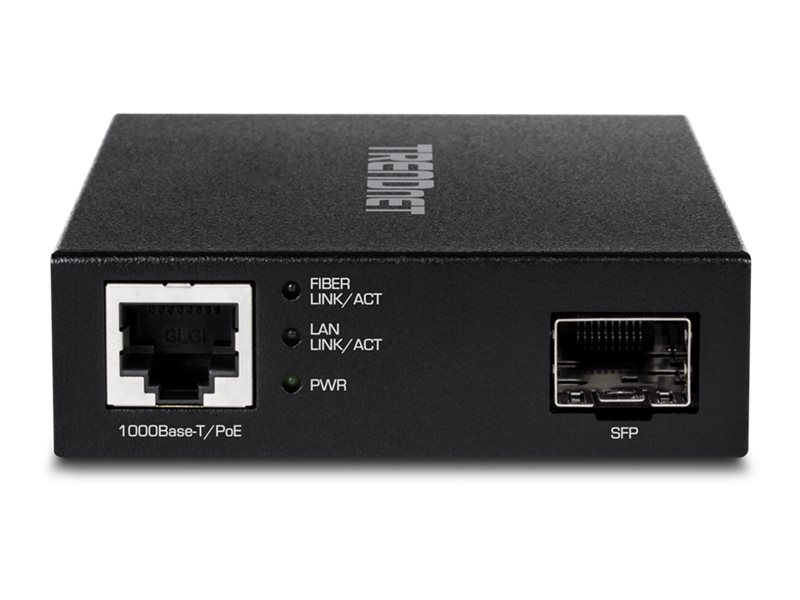

Media converter - 1GbE - 1000Base-LX, 1000Base-SX, 1000Base-T - RJ-45 / SFP (mini-GBIC) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TFC-PGSFP - media converter - 1GbE - TAA Compliant |
| Device Type | Media converter - RJ-45 / SFP (mini-GBIC) |
| Form Factor | External |
| Cabling Type | 1000Base-LX, 1000Base-SX, 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 1GbE |
| Power Over Ethernet (PoE) | PoE+ |
| Dimensions (WxDxH) | 4 in x 3 in x 0.9 in |
| Weight | 7.05 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T (PoE+ input) - RJ-45 female ¦ 1 x Ethernet 1000Base-LX/1000Base-SX - SFP female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX, 1000Base-SX, 1000Base-T |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Status Indicators | Power, LAN, fiber |
| Features | Half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), 9 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Power Device | Power injector |
| Power Consumption Operational | 2.6 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4 in |
| Depth | 3 in |
| Height | 0.9 in |
| Weight | 7.05 oz |
