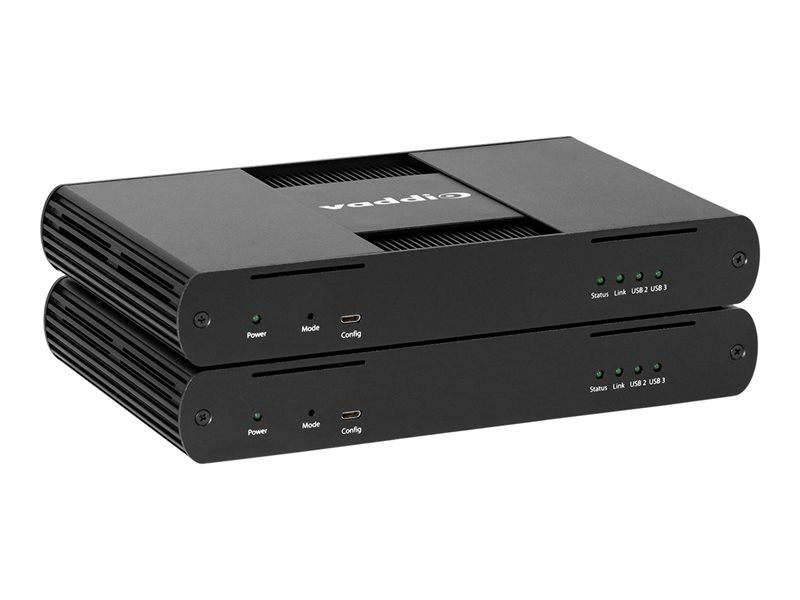

Local Extender (LEX) and Remote Extender (REX) modules - USB extender - GigE, USB 3.1 - 4 ports - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | Vaddio USB Camera Extenders - USB Plenum Rated Extension Kit - Local Extender (LEX) and Remote Extender (REX) modules - USB extender - 100Mb LAN, 1GbE, USB 3.1 |
| Device Type | USB extender |
| Ports Qty | 4 |
| Form Factor | External |
| Localization | North America |
| Data Link Protocol | 100Mb LAN, 1GbE, USB 3.1 |
| Max Transfer Distance | 328 ft |
| Power | AC 120/230 V |
| System Requirements | Apple MacOS, Linux, Microsoft Windows, Google Chrome OS |
| Dimensions (WxDxH) | 5.4 in x 9.1 in x 1.3 in |
| General | |
| Device Type | USB extender |
| Form Factor | External |
| Color | Black |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 3.1 (local unit) - Type B ¦ 2 x Ethernet 1000 - RJ-45 ¦ 4 x USB 3.1 (remote unit) - Type A |
| Miscellaneous | |
| Cables Included | 1 x USB 3.1 cable - 6 ft |
| Compliant Standards | FCC Class B certified, RoHS2 |
| Networking | |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | 100Mb LAN, 1GbE, USB 3.1 |
| Max Transfer Distance | 328 ft |
| Status Indicators | Status, link/activity, USB |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Voltage Required | AC 120/230 V |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows, Google Chrome OS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.4 in |
| Depth | 9.1 in |
| Height | 1.3 in |
