Wireless access point - Wi-Fi 5 - 2.4 GHz, 5 GHz
| Main Specifications | |
|---|---|

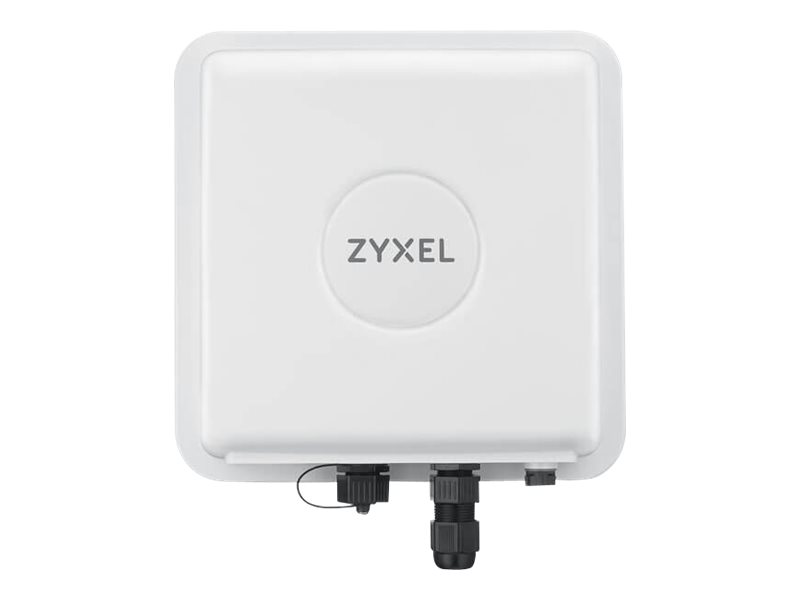

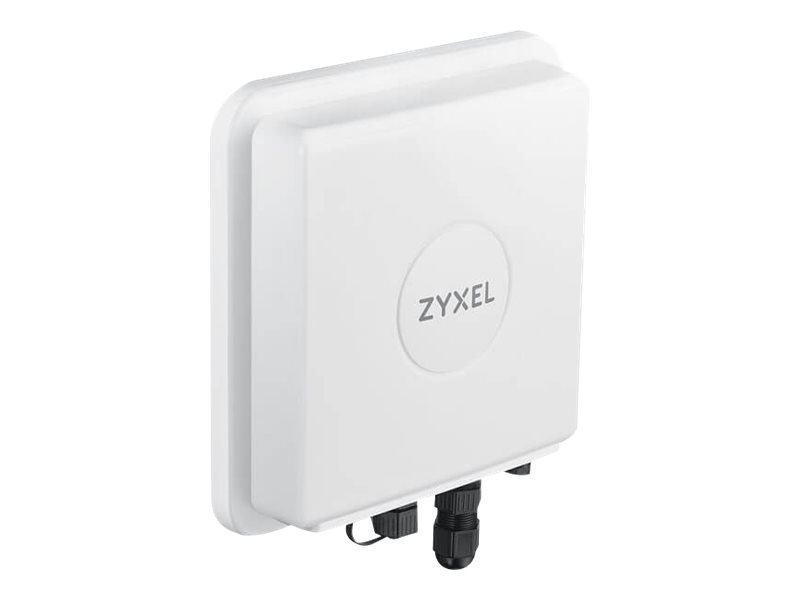

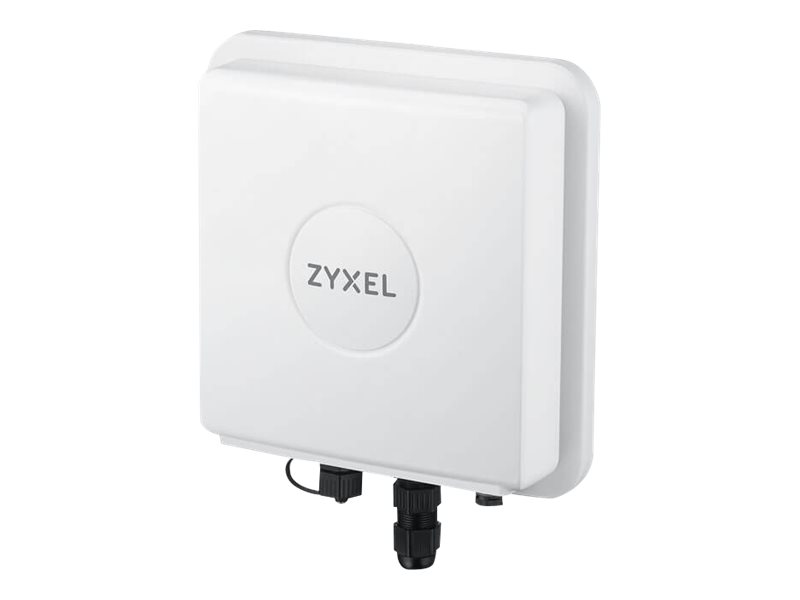

| Product Description | Zyxel WAC6552D-S - wireless access point - Wi-Fi 5 |
| Device Type | Wireless access point |
| Form Factor | External - outdoor |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz, 5 GHz |
| Included Accessories | Pole mount |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Dimensions (WxDxH) | 10 in x 10.1 in x 2.6 in |
| Weight | 3.51 lbs |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Width | 10 in |
| Depth | 10.1 in |
| Height | 2.6 in |
| Weight | 3.51 lbs |
| Expansion / Connectivity | |

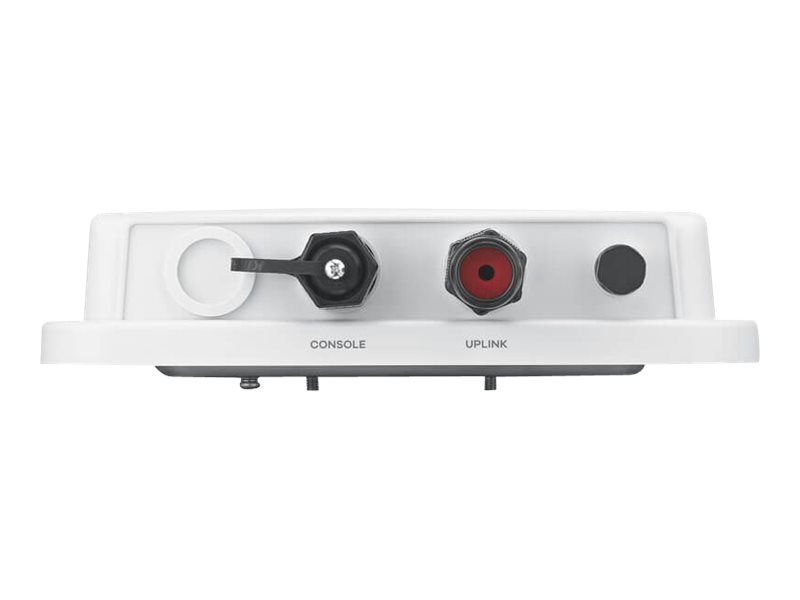

| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x console |
| Miscellaneous | |
| Included Accessories | Pole mount |
| MTBF | 775,977 years |
| Compliant Standards | ETSI, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, FCC Part 15 C, FCC, IEC 60950-1, EN 60950-1, FCC Part 15 E, BSMI CNS 13438, EN 60601-1-2, IP67, EN 300 328, BSMI CNS 14336-1, EN 301 489-1, LP0002, EN 301 893, EN 301 489-17 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 866 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Remote Management Protocol | SNMP, CLI |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | VLAN support, DiffServ support, MAC address filtering, IPv6 support, firmware upgradable, Wi-Fi Multimedia (WMM) support, 2T2R MIMO technology, rogue access point detection, Unscheduled Automatic Power Save Delivery (U-APSD), Pre-Authentication, band steering, WDS access point, Fast Roaming, PMK Caching, Layer 2 isolation, smart antenna |
| Encryption Algorithm | WPA, WPA2-PSK, WPA2-Enterprise, WEP |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 17.9 in |
| Shipping Depth | 13.4 in |
| Shipping Height | 5.2 in |
| Shipping Weight | 7.72 lbs |
| Antenna | |
| Antenna | Internal |
