Touch panel - display - LED - 10.1" - cable - black
| Main Specifications | |
|---|---|

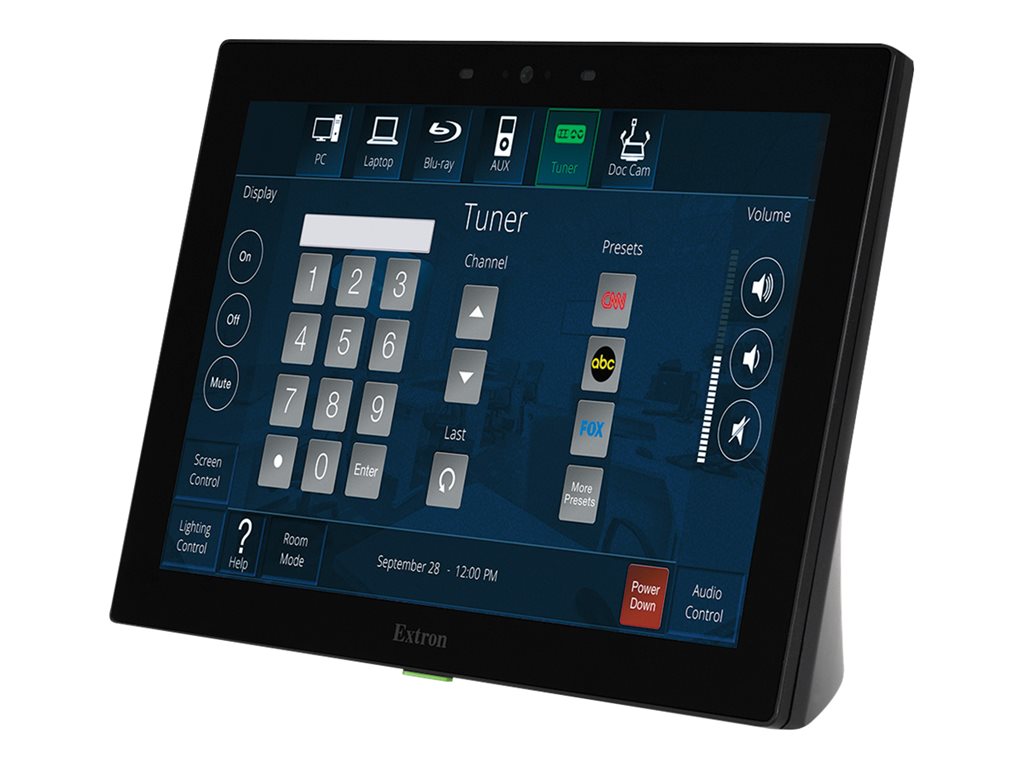

| Product Description | Extron TouchLink Pro 1025T touch panel - black |
| Device Type | Touch panel |
| Enclosure Color | Black |
| Dimensions (WxDxH) | 10.1 in x 4.1 in x 6.4 in |
| Weight | 3 lbs |
| Connectivity Technology | Cable |
| Input Device | Touch screen |
| Display | LED 1280 x 800 - 10.1" |
| Audio Output | Speaker |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Touch panel |
| Width | 10.1 in |
| Depth | 4.1 in |
| Height | 6.4 in |
| Weight | 3 lbs |
| Enclosure Color | Black |
| Enclosure Material | Plastic |
| Connectivity Technology | Cable |
| Input Device | Touch screen |
| Supported Digital Audio Standards | WAV |
| Features | Built-in light sensor, Power over Ethernet, table mount, capacitive touch interface |
| Memory | |
| RAM | 2 GB - SDRAM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, VCCI, C-Tick, cUL, RoHS, KCC, WEEE, ICES |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Audio Output | |
| Type | Speaker |
| Display | |
| Display | LED 10.1" |
| Color Display | Yes |
| Color Support | 16.7 million colors |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 420 cd/m² |
| Horizontal Viewing Angle | +85 / -85 |
| Vertical Viewing Angle | +85 / -85 |
| Touch Screen | Yes |
| Display Format | 1280 x 800 |
| Connections | |
| Connector Type | 1 x LAN (RJ-45) ¦ 1 x USB 2.0 (4 pin USB Type A) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.3 in |
| Shipping Depth | 9.1 in |
| Shipping Height | 0.7 in |
| Shipping Weight | 4.06 lbs |
| Network | |
| Network Protocols Supported | TCP, UDP, HTTP, ICMP, DHCP, HTTPS, SFTP, SSH, DNS |
