Network extender - 100Mb LAN, Modbus - 10Base-T, 100Base-TX - RJ-45 / RJ-45 - up to 6.5 miles - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Black Box Industrial Ethernet Extender Multi-Drop Unit - network extender - 10Mb LAN, 100Mb LAN, Modbus - TAA Compliant |
| Device Type | Network extender - RJ-45 / RJ-45 |

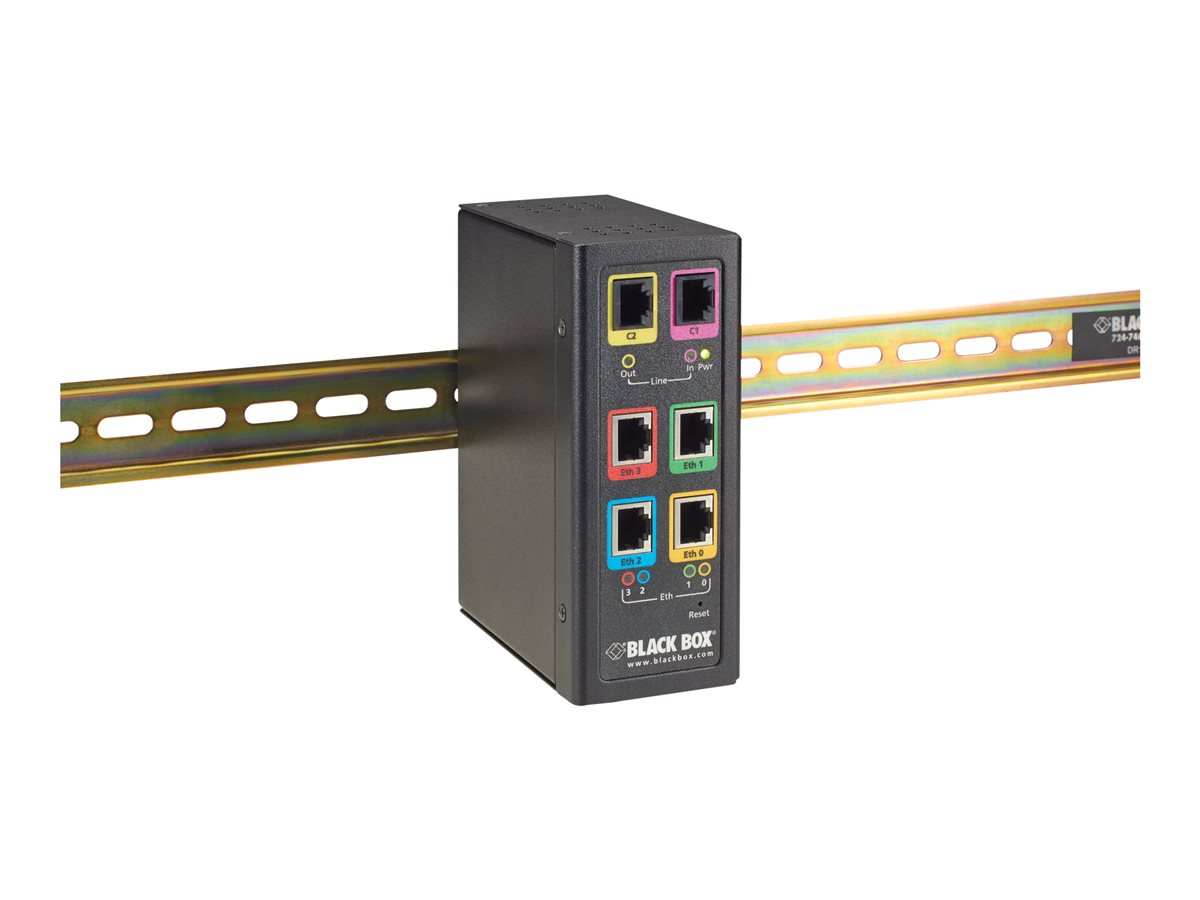

| Form Factor | DIN rail mountable |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Transfer Rate | 15.3 Mbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, Modbus |
| Remote Management Protocol | Telnet |
| Max Transfer Distance | 6.5 miles |
| Power | AC 90 - 260 V |
| Dimensions (WxDxH) | 2.3 in x 4.6 in x 5.6 in |
| Weight | 10.58 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Network extender |
| Form Factor | DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 4 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x G.SHDSL (input) - RJ-45 female ¦ 1 x G.SHDSL (output) - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | Plug and Play, EMC, FCC Part 15 A, IP40, Directive 73/23/EEC, Directive 89/336/EEC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, Modbus |
| Data Transfer Rate | 15.3 Mbps |
| Line Coding Format | TC-PAM |
| Remote Management Protocol | Telnet |
| Max Transfer Distance | 6.5 miles |
| Status Indicators | Power, WAN, link/activity |
| Features | Auto-sensing per device, VLAN support, auto-uplink (auto MDI/MDI-X), VPN passthrough, reset button, tagged VLAN |
| Compliant Standards | IEEE 802.1Q |
| Power | |

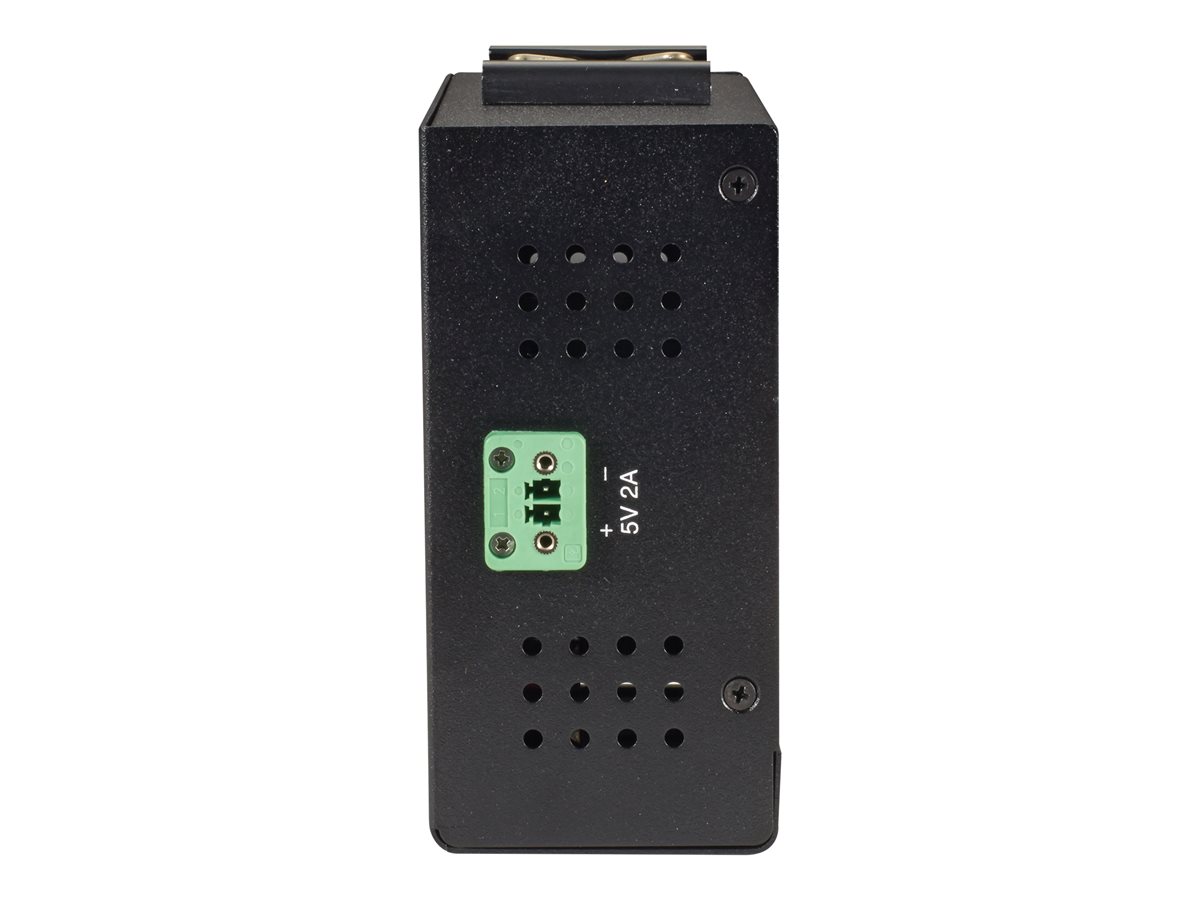

| Power Device | External power adapter |
| Voltage Required | AC 90 - 260 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.3 in |
| Depth | 4.6 in |
| Height | 5.6 in |
| Weight | 10.58 oz |
