4x1 switcher / HDBaseT transmitter
| Main Specifications | |
|---|---|

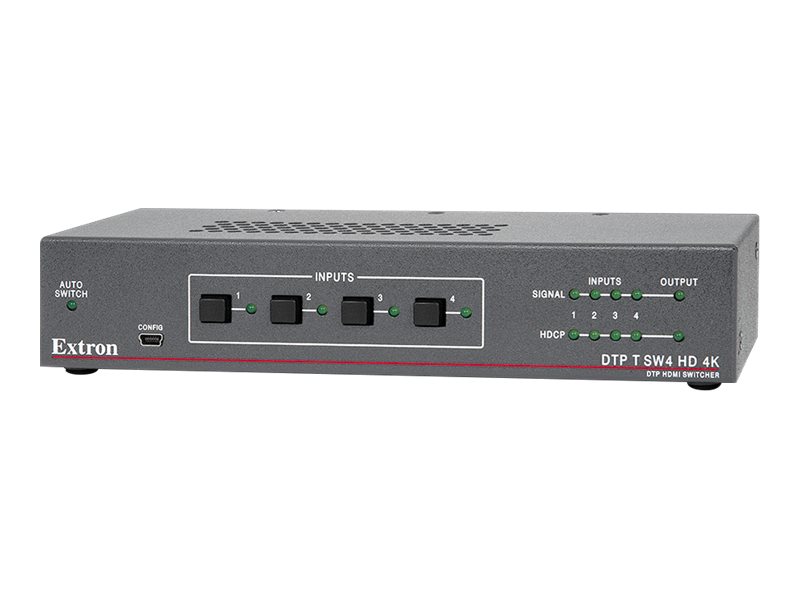

| Product Description | Extron DTP T SW4 HD 4K 4x1 switcher / HDBaseT transmitter |
| Type | 4x1 switcher / HDBaseT transmitter |
| Dimensions (WxDxH) | 8.7 in - 3 in - 1.7 in |
| Weight | 10.58 oz |
| Manufacturer Warranty | 3 years |
| General | |
| Type | 4x1 switcher / HDBaseT transmitter |
| Width | 8.7 in |
| Depth | 3 in |
| Height | 1.7 in |
| Weight | 10.58 oz |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 12 watt |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Terminals | |
| Terminals | (4) x HDMI input - 19 pin HDMI Type A ¦ (1) x HDBaseT / DTP 330 output - RJ-45 ¦ (6) x tally - terminal block ¦ (1) x serial - terminal block ¦ (1) x remote control bus - terminal block ¦ (1) x USB 2.0 - mini-USB Type B |
| Studio & Production Equipment | |
| Features | HDCP compliant |
