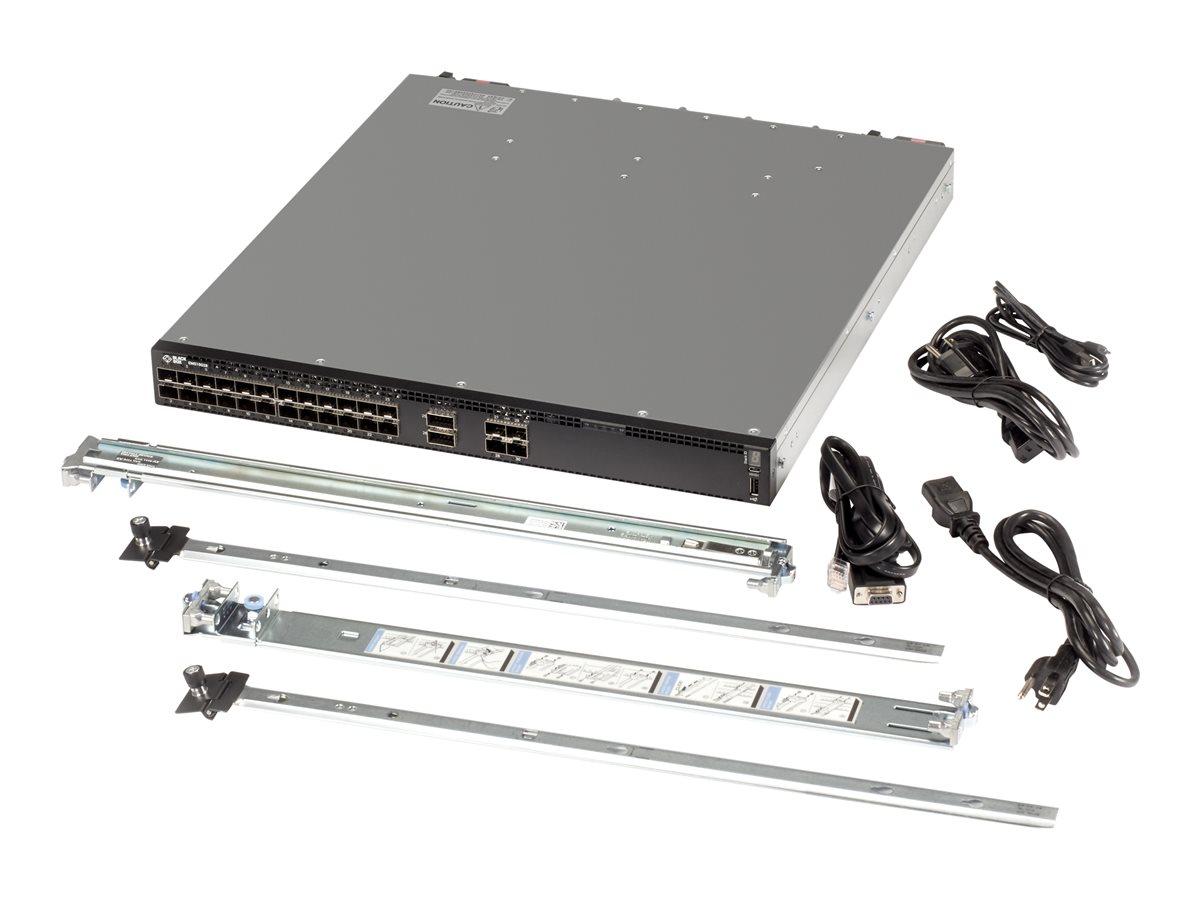

Switch - 28 x 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28 - rack-mountable - AC 100 - 240 V
| Main Specifications | |
|---|---|
| Product Description | Black Box Emerald Ethernet Network Switch - switch - 28 ports - rack-mountable |
| Device Type | Switch - 28 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 28 x 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28 |
| Performance | Switching capacity: 960 Gbps ¦ Forwarding capacity: 720 Mpps |
| Capacity | ARP entries: 128000 ¦ IPv4 routes: 128000 ¦ IPv6 hosts: 64000 ¦ IPv6 routes: 64000 ¦ Multicast hosts: 8000 ¦ Links per group: 16 ¦ Groups per stack: 128 ¦ VLANs supported: 4000 ¦ MSTP instances: 64 |
| MAC Address Table Size | 160000 entries |
| Jumbo Frame Support | 9416 bytes |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, TFTP, SSH-2, SCP |
| Features | Flow control, VLAN support, Syslog support, port mirroring, sFlow, STP support, RSTP support, MSTP support, QoS, Jumbo Frames support, PVST+, LLDP support, LACP, redundant hot swappable fans, 12MB packet buffer, GVRP, 802.1x authentication, 4 fans, VLAN Double Tagging (Q-in-Q), LLDP-MED, IPSec support, VLAN Tagging |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| Power | AC 100 - 240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17 in x 18 in x 1.7 in |
| Weight | 19.67 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Switch - 28 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 28 x 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28 |
| Performance | Switching capacity: 960 Gbps ¦ Forwarding capacity: 720 Mpps |
| Capacity | ARP entries: 128000 ¦ IPv4 routes: 128000 ¦ IPv6 hosts: 64000 ¦ IPv6 routes: 64000 ¦ Multicast hosts: 8000 ¦ Links per group: 16 ¦ Groups per stack: 128 ¦ VLANs supported: 4000 ¦ MSTP instances: 64 |
| MAC Address Table Size | 160000 entries |
| Jumbo Frame Support | 9416 bytes |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, TFTP, SSH-2, SCP |
| Encryption Algorithm | ESP |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2) |
| Features | Flow control, VLAN support, Syslog support, port mirroring, sFlow, STP support, RSTP support, MSTP support, QoS, Jumbo Frames support, PVST+, LLDP support, LACP, redundant hot swappable fans, 12MB packet buffer, GVRP, 802.1x authentication, 4 fans, VLAN Double Tagging (Q-in-Q), LLDP-MED, IPSec support, VLAN Tagging |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| RAM | 4 GB |
| Expansion / Connectivity | |
| Interfaces | 28 x 10Gbit LAN SFP+ ¦ 2 x 100Gbit LAN QSFP28 ¦ 1 x management (RS-232) RJ-45 console |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | CSA, RoHS, EN 60825-1, ICES-003 issue 4 Class A, VCCI Class A, FDA 21CFR1040.10, FDA 21CFR1040.11, AS/NZS CISPR 32 Class A, EN 55032 Class A, VCCI V-3/2009 Class A, FCC CFR47 Part 15 B 2009 Class A, EN 60959-1 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100 - 240 V (50/60 Hz) |
| Power Consumption Operational | 260 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 18 in |
| Height | 1.7 in |
| Weight | 19.67 lbs |
