Network surveillance camera - PTZ - color - 2.3 MP - 1920 x 1080 - motorized - HDMI - LAN 10/100 - DC 12 V
| Main Specifications | |
|---|---|

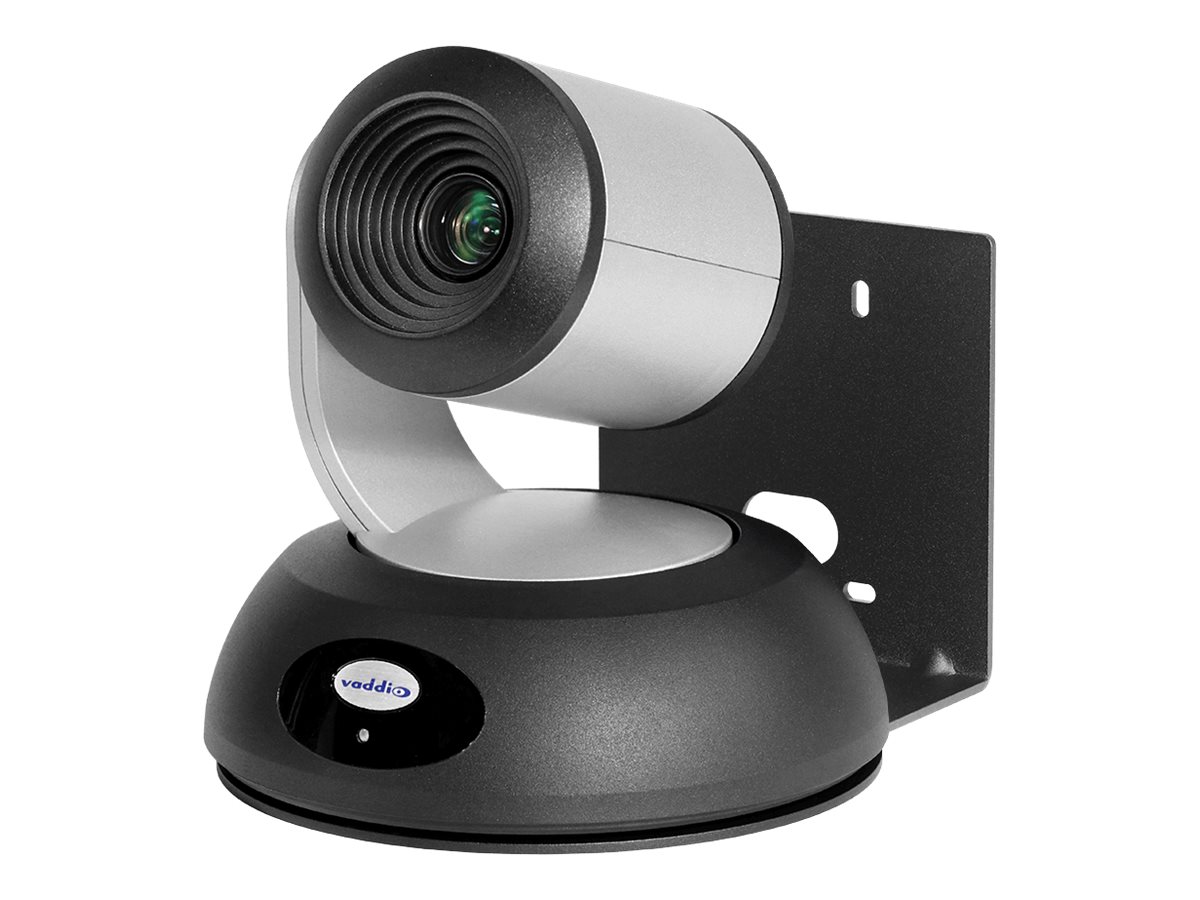

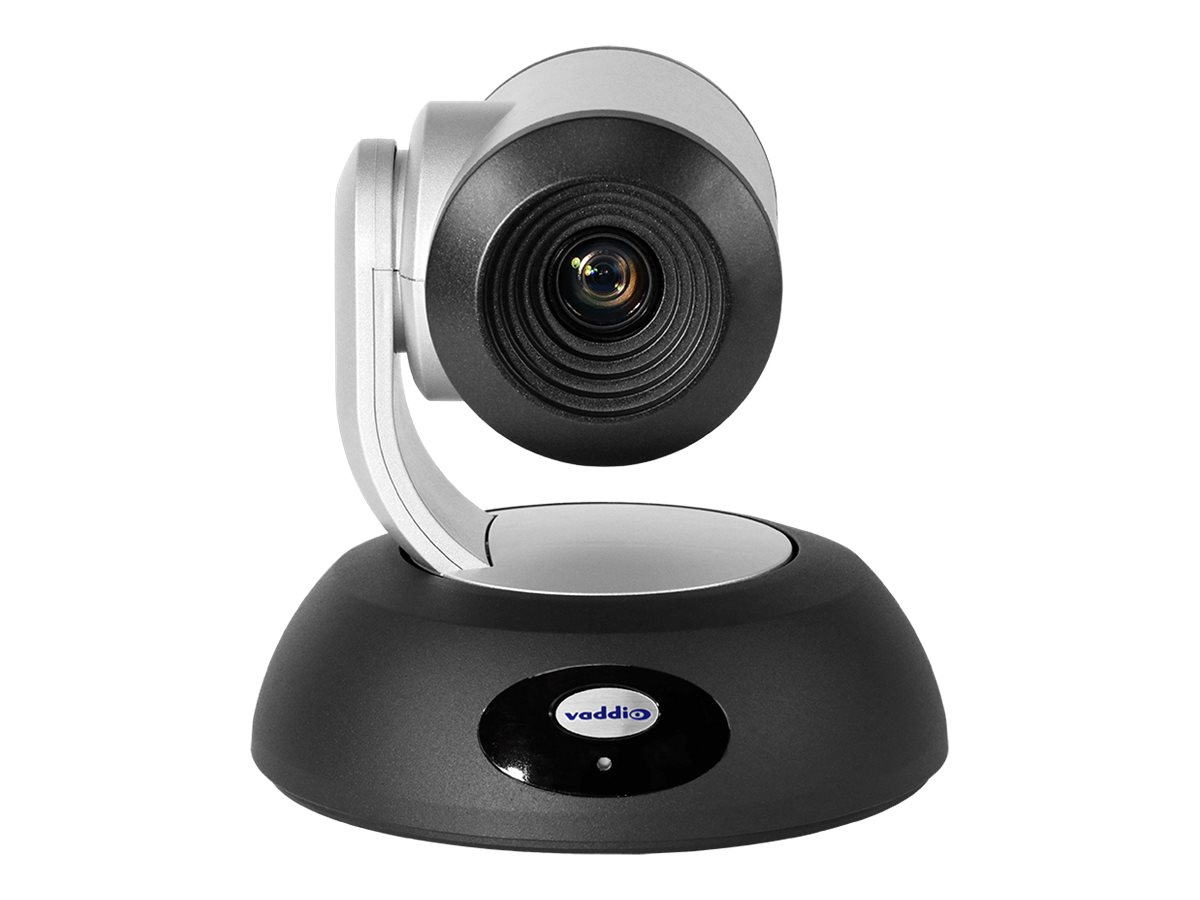

| Product Description | Vaddio RoboSHOT 12 HDMI for Cisco SX Codecs - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom |
| Dimensions (WxDxH) | 7.1 in x 6.8 in x 6.9 in |
| Weight | 4.85 lbs |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 12 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 1080/59.94i, 1080/59.94p, 720/59.94p |
| Optical Sensor Type | Exmor CMOS - 1/2.8" - 2.3 MP |
| Minimum Illumination | 1 lux - color - F1.8 - 50 IRE |
| Focal Length Control | Motorized zoom |
| Focal Length | 3.91 mm - 47 mm |
| Focus Adjustment | (min distance 0.4 in) |
| Lens Iris | F/1.8-3.4 |
| Panning Range (degree) | -160 to +160 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | HDMI, Ethernet 10Base-T/100Base-TX |
| Control Interface | RS-232 |

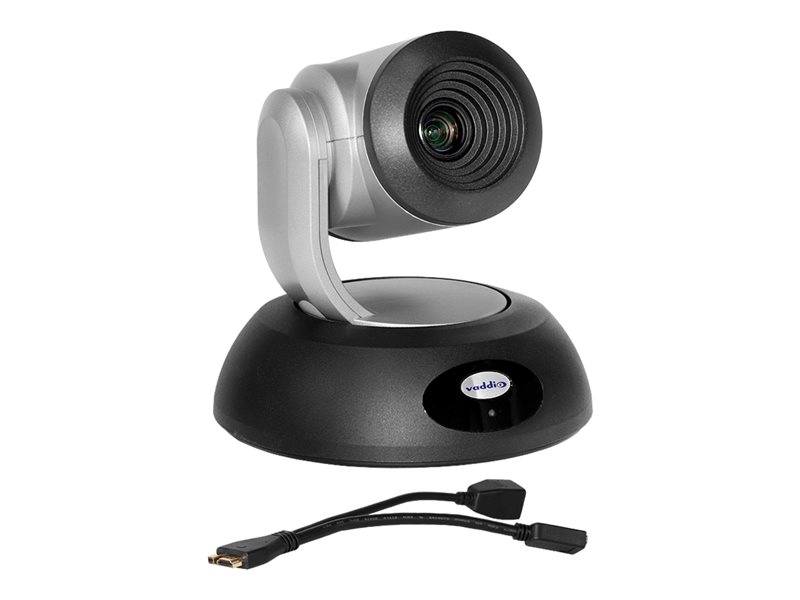

| Cables Included | 1 - breakout cable - 10.2 in ¦ 1 - HDMI cable - 3 ft ¦ 1 - network cable - 3 ft ¦ 2 - serial adapter |
| Voltage | DC 12 V |
| Features | Image flip, Tri-Synchronous Motion, Advanced ISP |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 7.1 in |
| Depth | 6.8 in |
| Height | 6.9 in |
| Weight | 4.85 lbs |
| Localization | North America |
| Expansion / Connectivity | |

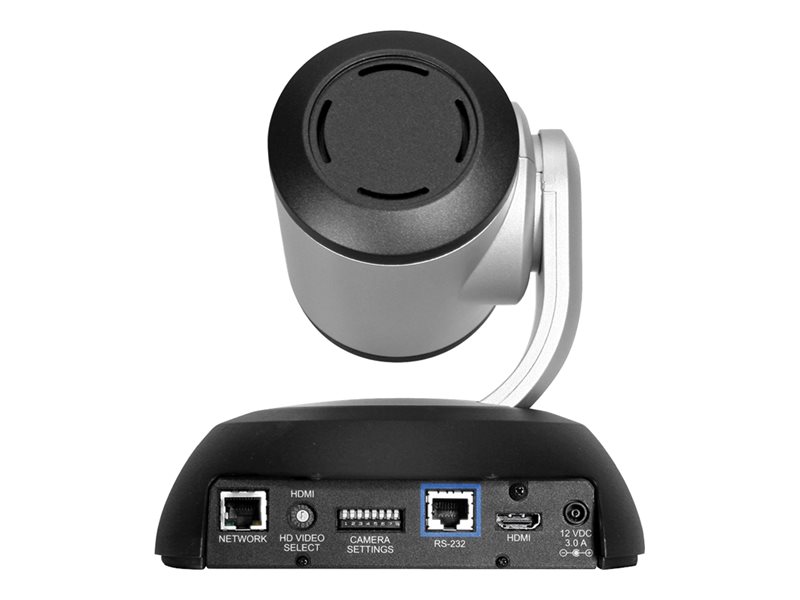

| Ports | Serial RS-232 - RJ-45 ¦ HDMI ¦ LAN - RJ-45 |
| Miscellaneous | |
| Included Accessories | Remote control |
| Cables Included | 1 x breakout cable - 10.2 in ¦ 1 x HDMI cable - 3 ft ¦ 1 x network cable - 3 ft ¦ 2 x serial adapter |
| Power | |
| Power Requirements | DC 12 V |
| Power Device | Power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 1080/59.94i, 1080/59.94p, 720/59.94p |
| Minimum Illumination | 1 lux - color - F1.8 - 50 IRE |
| Frame Rate (max) | 60 frames per second |
| Features | Image flip, Tri-Synchronous Motion, Advanced ISP |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 12 x |
| Focal Length | 3.91 mm - 47 mm |
| Lens Iris | F/1.8-3.4 |
| Min Focus Distance | 0.4 in |
| Horizontal Field of View (degree) | 6.6 - 73 |
| Image Sensor | |
| Type | 2.3 MP Exmor CMOS 1/2.8" |
| Interfaces | |
| Video | HDMI |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | HTTP, Telnet |
| Control Interface | RS-232 |
| Panning | |
| Range (degree) | -160 to +160 |
| Speed (degree/sec) | Up to 120 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
