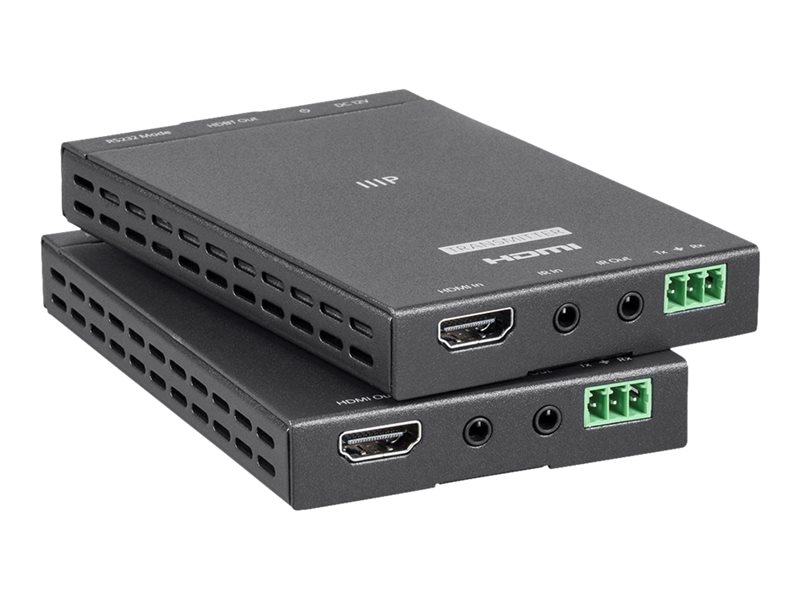

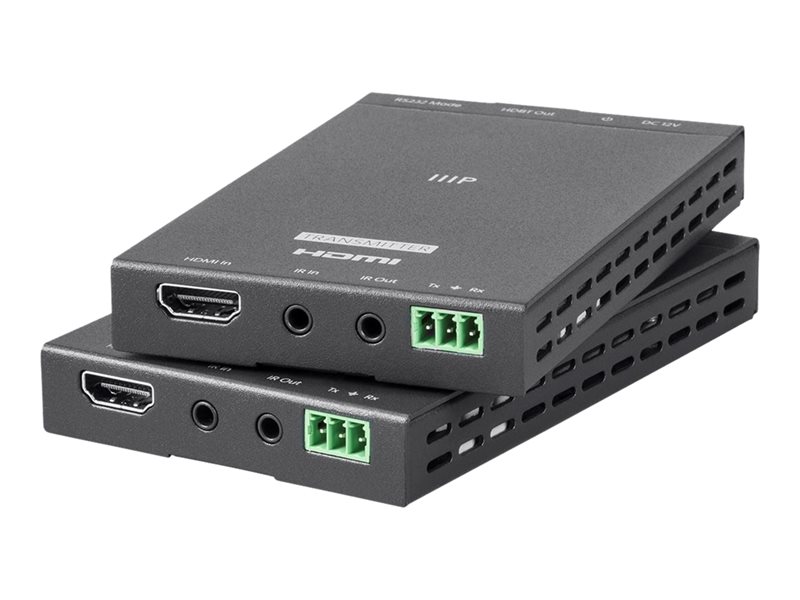

Video/audio/infrared/serial extender - HDMI, HDBaseT 2.0 - up to 230 ft
| Main Specifications | |
|---|---|
| Product Description | Monoprice Blackbird 4K Pro HDBaseT Extender - video/audio/infrared/serial extender - HDMI, HDBaseT 2.0 |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | HDMI, HDBaseT 2.0 |
| Max Transfer Distance | 230 ft |
| Power | AC 100 - 240 V |
| Dimensions (WxDxH) | 2.9 in x 4.7 in x 0.6 in |
| General | |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI - 19 pin HDMI Type A ¦ 1 x IR (input) - mini jack ¦ 1 x RS-232 - terminal block ¦ 1 x HDBaseT - RJ-45 ¦ 1 x IR (output) - mini jack |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, HDBaseT 2.0 |
| Data Transfer Rate | 10.2 Gbps |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Features | Power over cable (PoC) |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100 - 240 V (50/60 Hz) |
| Power Consumption Operational | 10 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.9 in |
| Depth | 4.7 in |
| Height | 0.6 in |
