Distribution amplifier
| Main Specifications | |
|---|---|

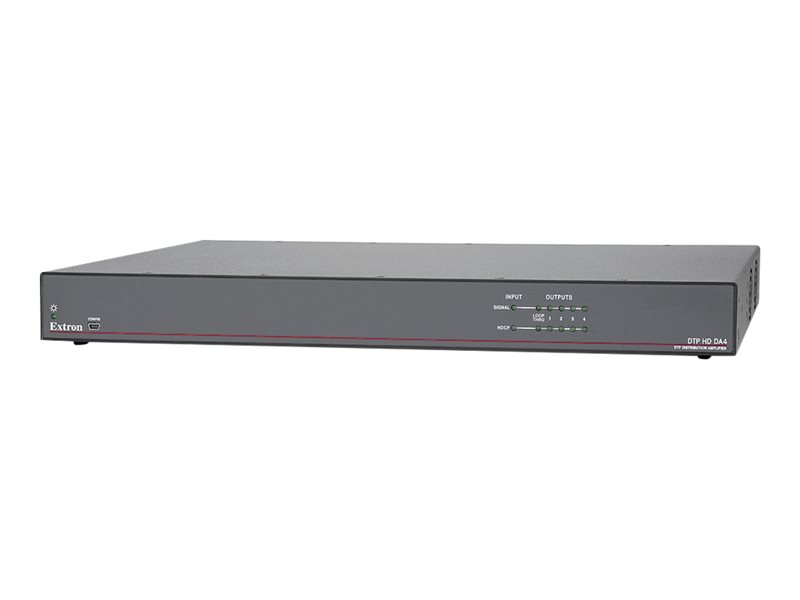

| Product Description | Extron DTP HD DA 4K 330 distribution amplifier |
| Type | Distribution amplifier |
| Dimensions (WxDxH) | 17.5 in - 10.6 in - 1.7 in |
| Weight | 4.85 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Type | Distribution amplifier |
| Width | 17.5 in |
| Depth | 10.6 in |
| Height | 1.7 in |
| Weight | 4.85 lbs |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 46.3 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Terminals | |
| Terminals | (1) x HDMI input - 19 pin HDMI Type A - with loop through ¦ (1) x audio line-in - mini-phone stereo 3.5 mm - with loop through ¦ (4) x DTP 330 output - RJ-45 ¦ (4) x serial - terminal block ¦ (1) x network - RJ-45 ¦ (1) x remote control bus |
| Studio & Production Equipment | |
| Features | HDCP compliant, EDID support |
