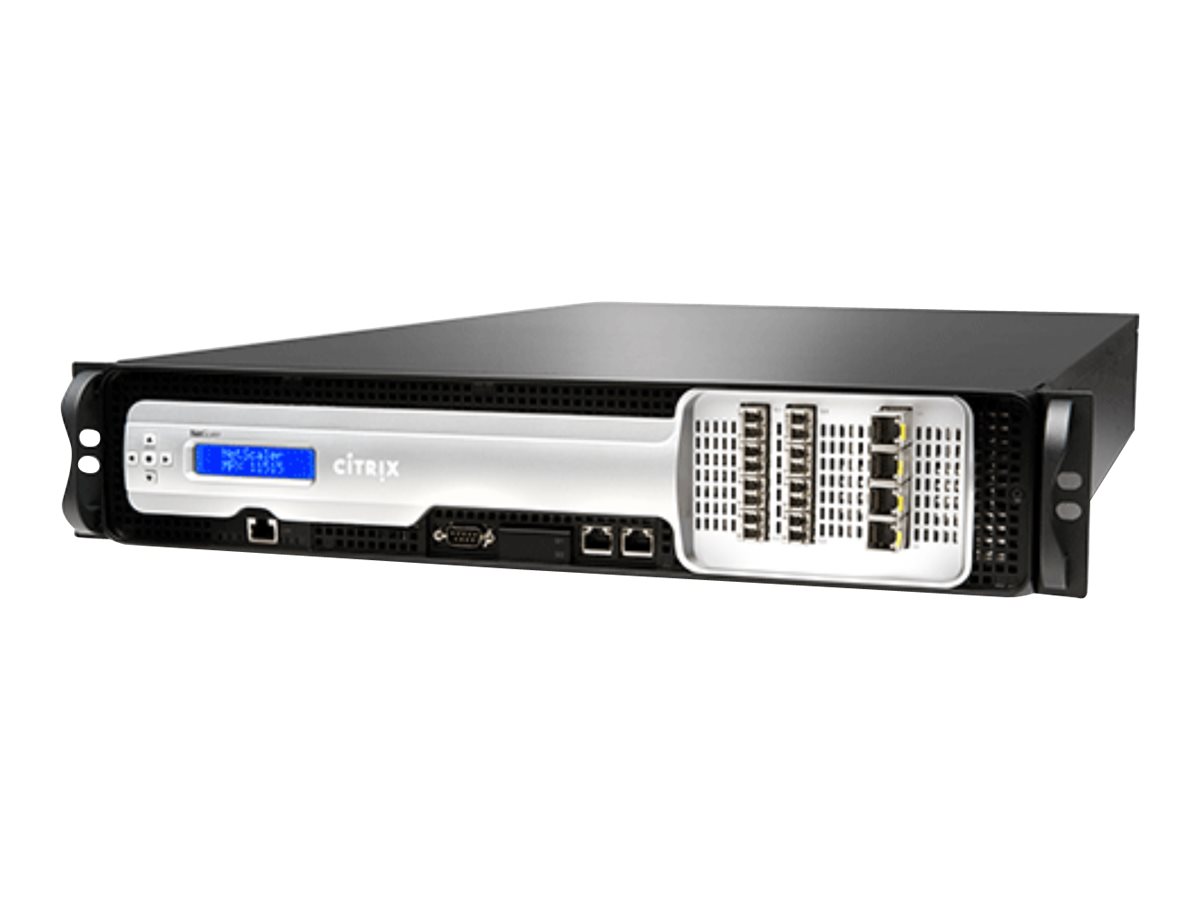

Premium Edition - load balancing device - 25GbE, 50GbE - 2U - Citrix Enterprise License Program (ELA) (Level 6) - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Citrix ADC MPX 26160 - Premium Edition - load balancing device |
| Device Type | Load balancing device |
| Form Factor | Rack-mountable - 2U |
| RAM | 256 GB |
| Data Link Protocol | 25 Gigabit Ethernet, 50 Gigabit Ethernet |
| Performance | Layer 7 throughput: 160 Gbps ¦ Request rate (layer 7): 4300000 requests per second ¦ Compression throughput: 17 Gbps ¦ SSL throughput (2k key): 220000 transactions per second ¦ ECDHE: 90000 transactions per second ¦ SSL throughput: 64 Gbps |
| Capacity | Concurrent SSL VPN users: 20000 |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Pricing Type | Citrix Enterprise License Program (ELA) (Level 6) |
| Dimensions (WxDxH) | 28 in |
| Weight | 48.06 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Load balancing device |
| Height (Rack Units) | 2U |
| Built-in Devices | Status LCD, RAID controller |
| Depth | 28 in |
| Weight | 48.06 lbs |
| Expansion / Connectivity | |
| Interfaces | 16 x 25Gb Ethernet - SFP28 ¦ 8 x 50Gb Ethernet - QSFP28 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | EIA-310-D, AS/NZS 60950-1, UL 60950-1 Second Edition, WEEE, FCC Part 15 A, REACH, DIN 41494, IEC 60950-1 Second Edition, EAC, RCM, IEC 60297, CSA 60950-1 Second Edition |
| Pricing Type | Citrix Enterprise License Program (ELA) (Level 6) |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | 25 Gigabit Ethernet, 50 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, ICMP/IP, FTP, DNS, RTSP |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, VRRP, static IP routing, ECMP |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Performance | Layer 7 throughput: 160 Gbps ¦ Request rate (layer 7): 4300000 requests per second ¦ Compression throughput: 17 Gbps ¦ SSL throughput (2k key): 220000 transactions per second ¦ ECDHE: 90000 transactions per second ¦ SSL throughput: 64 Gbps |
| Capacity | Concurrent SSL VPN users: 20000 |
| Features | Firewall protection, NAT support, VPN support, layer 7 switching, LDAP support, OCSP support, VLAN support, DoS attack prevention, content filtering, packet filtering, manageable, IPv6 support, High Availability, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Remote Desktop Protocol (RDP) support, RADIUS support, SSH support, layer 4 load balancing, SSL acceleration, DNS proxy, Equal-Cost Multipath (ECMP), IPv4 support, Global Server Load Balancing (GSLB), Link Aggregation Control Protocol (LACP), NetFlow, DNS authoritative, Management Information Base (MIB), IPFIX, Management Information Base (MIB) II, Carrier Grade NAT (CGN/CGNAT) |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, LDAP, Active Directory, NTLM |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP) |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 540 Watt |
| Power Provided | 1000 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| RAM | 256 GB |
